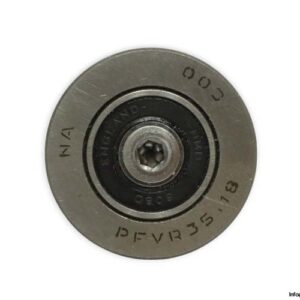

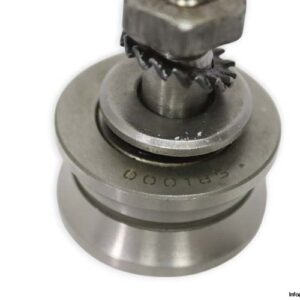

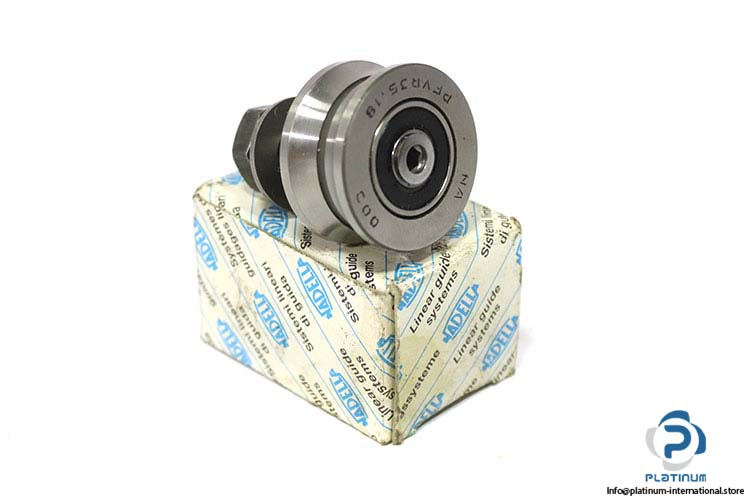

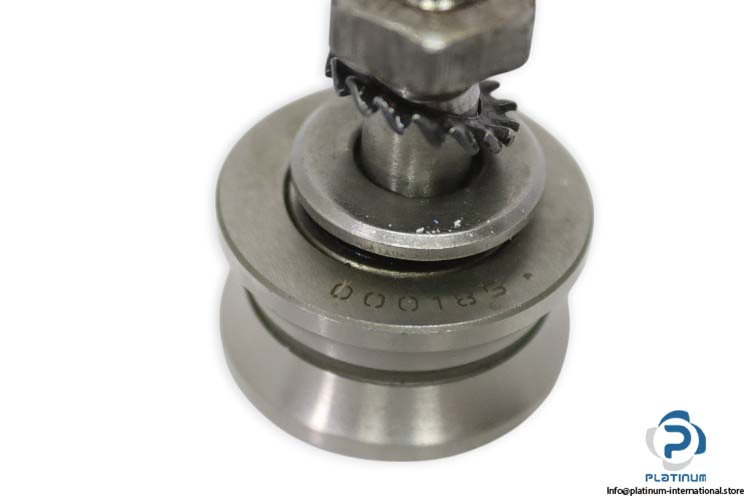

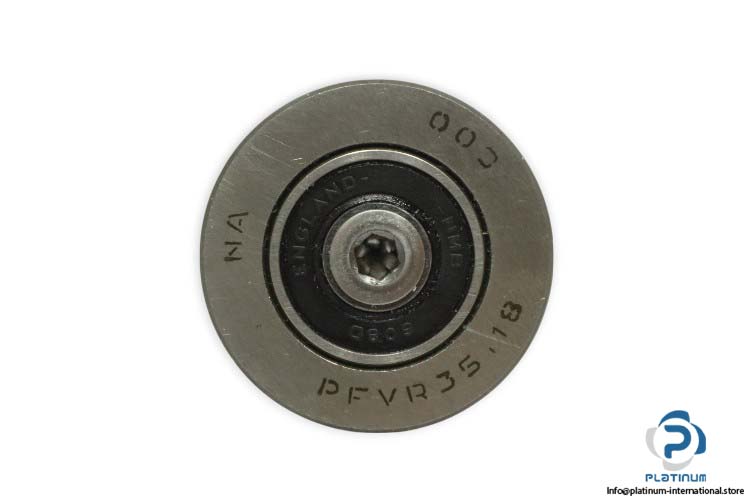

NADELLA PFVR35.18 GUIDE ROLLER

The Nadella PFVR35.18 Guide Roller is an eccentric design roller engineered for smooth and precise linear motion in guided rail systems. Built for durability, it offers high load capacity and precision alignment in demanding industrial environments.

Manufacturer: Nadella
Type: Guide Roller
Model: PFVR35.18

Technical Information

• Design: Eccentric
• Outside Diameter (De): 35 mm
• Guide Rail Shaft Diameter (dB): 18 mm
• Stud Diameter (d1): 10 mm
• Total Length (L): 45.3 mm
• Width Outer Ring (A): 18 mm
• Thread Stud (d): M10 x 1.25
• Basic Load Ratings Dynamic: 4550 N
• Limit Loads of the Stud “ Radial (Fr): 1500 N
• Limit Loads of the Stud “ Axial (Fa): 350 N
• Torque Wrench Settings: 20 Nm
• Pressure Angle (α): 60°
• Housing Bore Tolerance: H7
