Nadella FR40EU G2 Guide Roller
New
In stock1 unitReady to ship
Guide Roller
The Nadella FR40EU G2 is a concentric guide roller with 40 mm outer diameter and M12x1.5 threaded stud. Designed to G2 precision class, it supports radial loads up to 3650 N and ensures smooth guidance in compact industrial systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

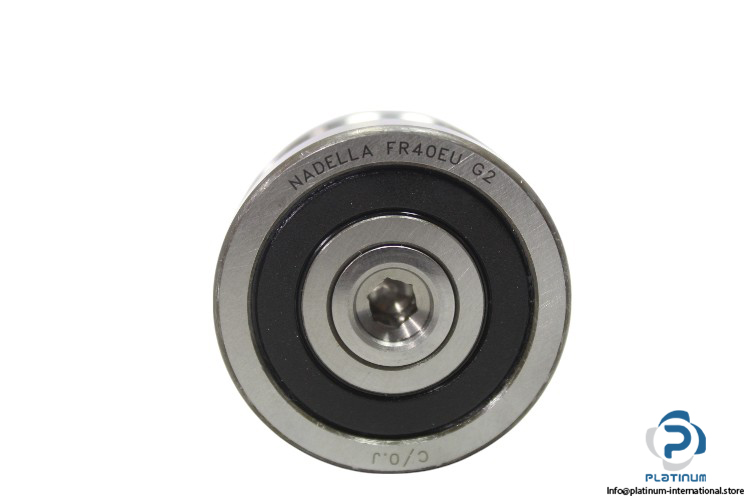

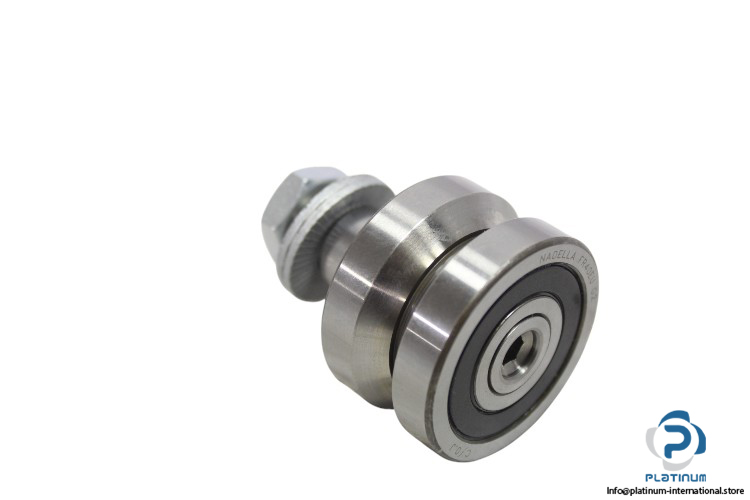

Nadella FR40EU G2 Guide Roller
The Nadella FR40EU G2 Guide Roller is a high-precision component designed for linear motion and guidance systems. With a concentric design, robust load ratings, and fine machining to G2 quality class, it offers reliable performance in demanding industrial applications. Its 40 mm outer diameter and integrated threaded stud make it easy to mount and operate in compact mechanical assemblies.
Manufacturer: Nadella
Type: Guide Roller
Model: FR40EU G2
| Design | Concentric |
| Outside Diameter (De) | 40 mm |
| Stud Diameter (d1) | 16 mm |
| Total Length (L) | 58.5 mm |
| Width Outer Ring (A) | 25 mm |
| Thread Stud (d) | M12x1.5 |
| Dynamic Load Rating (Cw) | 8500 N |
| Radial Limit Load (Fr) | 3650 N |
| Axial Limit Load (Fa) | 1400 N |
| Pressure Angle (α) | 40° |
| Quality Class | G2 |
