Nadella NA 22040 Needle Roller Bearing

Name: NADELLA NA 22040 NEEDLE ROLLER BEARING
SKU: 1089714
Availability: LimitedAvailability

nadella-NA-22040-needle-roller-bearing-(used)

nadella-NA-22040-needle-roller-bearing-(used)-1

nadella-NA-22040-needle-roller-bearing-(used)-2

Used

In stock1 unitReady to ship

Needle Roller Bearing

Full complement Nadella needle roller bearing NA22040 with high load capacity, compact dimensions, and high-speed capability for industrial applications.

Manufacturer

NADELLA

SKU

1089714

Category

Needle Bearings

Condition

Used

bearing complement full High Industrial Load NA22040 Nadella Needle Precision radial Roller

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

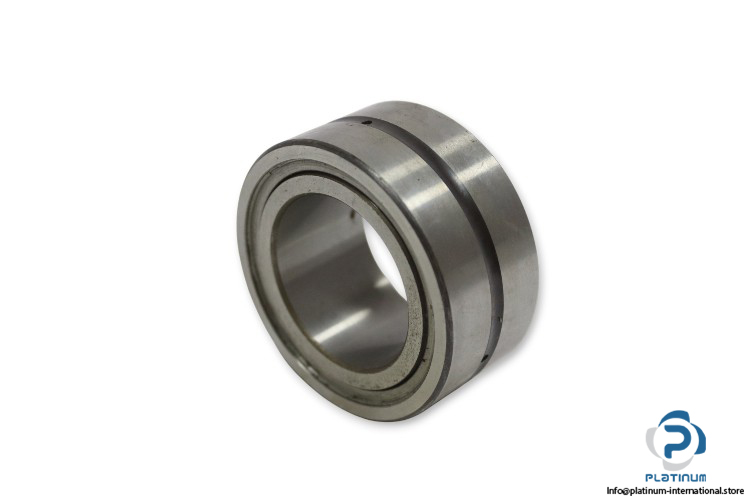

Nadella NA22040 Needle Roller Bearing

The Nadella NA22040 is a full complement needle roller bearing designed to support high radial loads while maintaining compact dimensions and reliable performance in demanding industrial applications.

Manufacturer: Nadella

Type: Full Complement Needle Roller Bearing

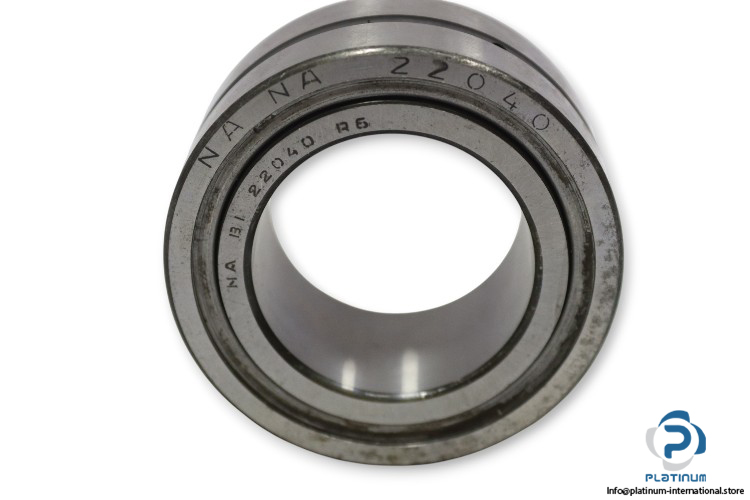

Model: NA22040 (NA BI 22040 R6)

Bore Diameter (d)	40 mm
Outer Diameter (D)	65 mm
Width (B)	30 mm
Dynamic Load Rating (Cr)	68 kN
Static Load Rating (C0r)	140 kN
Speed Rating (Oil Lubrication)	7600 rpm
Speed Rating (Grease Lubrication)	4900 rpm
