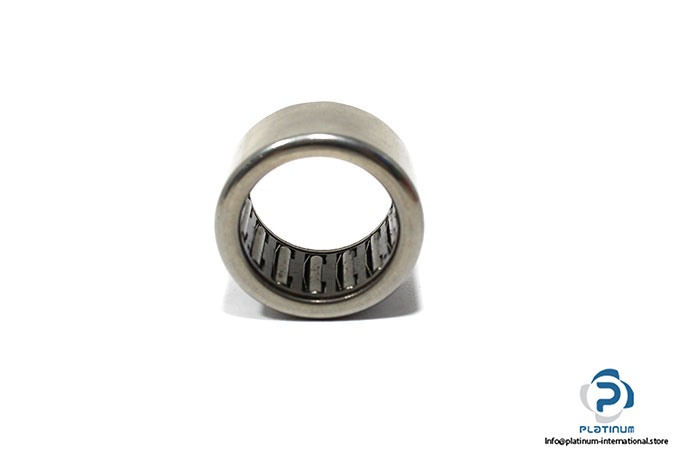

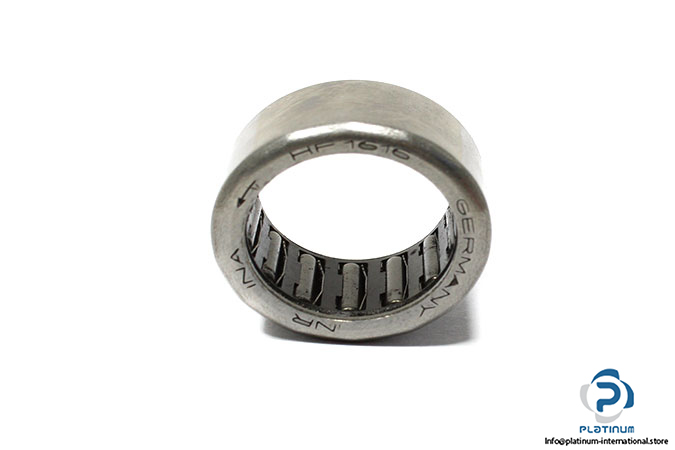

INA HF 1616 Drawn CUP Needle Roller Clutch Bearing

Manufacturer: Schaeffler INA

Type:  Drawn cup roller clutch

Model: HF1616

Dimensions

Diameter under rollers F_w: 16 mm

Outer diameter D: 22 mm

Width outer ring C: 16 mm

Minimum chamfer dimension r_min: 0.3 mm

Permissible torque: 20.5 Nm

Limiting speed for rotating shaft: 8500 rpm

Limiting speed for rotating outer ring: 7500 rpm

Lubricant: L564,Grease

Operating temperature: -10 °C…70 °C
