Nadella FRNR22EI Guide Roller
New
Available on request
75,77$
Guide Roller
The Nadella FRNR 22 EI Guide Roller features a 22 mm outside diameter, dynamic radial load rating of 3280 N, and M6x1 thread stud, providing stable and precise guiding for industrial applications.223280AxialdiameterDynamicEccentricEIFrnrGuideGuidinghandlinghigh-performanceIndustrialLoadM6x1mmNNadellaradialRollerStudThread
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

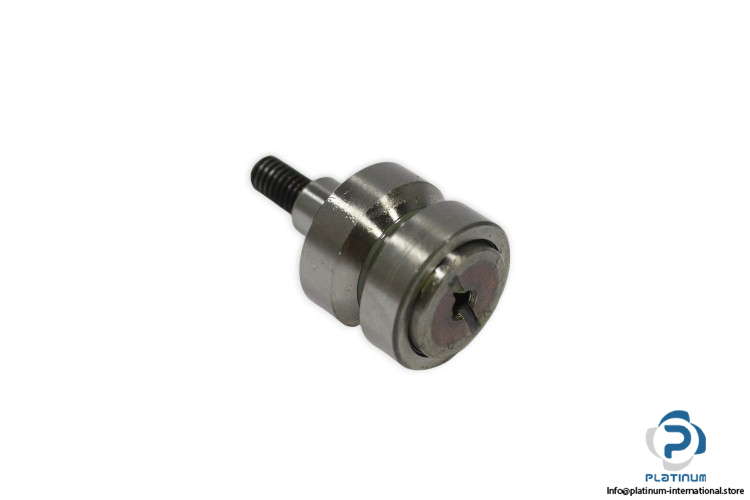

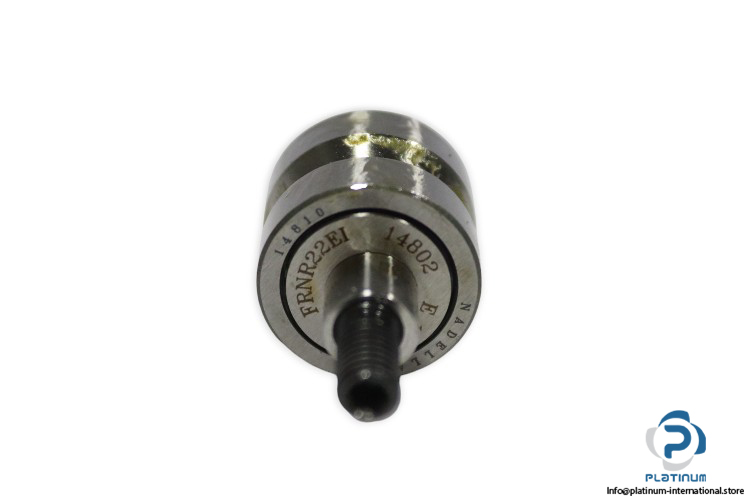

Nadella FRNR 22 EI Guide Roller
The Nadella FRNR 22 EI Guide Roller is designed for precise guiding and stable motion in industrial applications. Featuring an eccentric design, this guide roller ensures reliable operation under both radial and axial loads, offering high performance and durability.
Manufacturer: Nadella
Type: GUIDE ROLLER
Model: FRNR 22 EI
This Nadella guide roller provides smooth and accurate guiding for systems requiring robust radial and axial load handling. With its durable construction and high load capacity, it is perfect for use in demanding industrial environments.

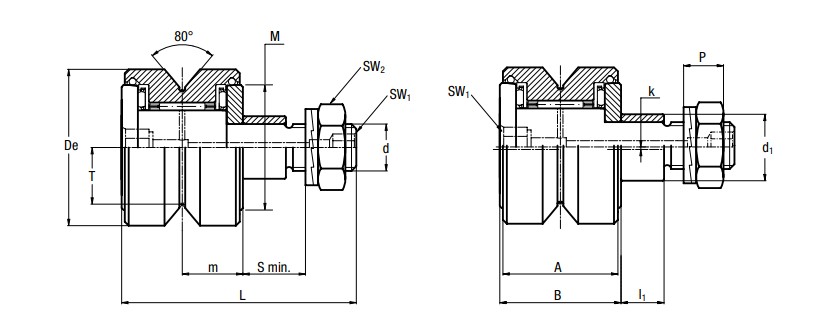

| Design | Eccentric |
| Outside Diameter (De) | 22 mm |
| Stud Diameter (d1) | 9 mm |
| Total Length (L) | 39 mm |
| Width Outer Ring (A) | 18.2 mm |
| Thread Stud (d) | M6x1 |
| Dynamic Radial Load (C wr) | 3280 N |
| Dynamic Axial Load (C Wa) | 800 N |
| Radial Limit Load (Fr) | 590 N |
| Axial Limit Load (Fa) | 290 N |
| Torque Wrench Settings | 3 Nm |
| Pressure Angle (α) | 40° |
