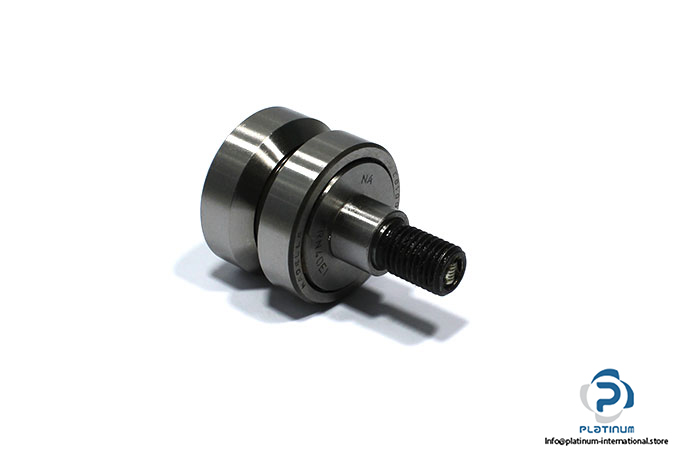

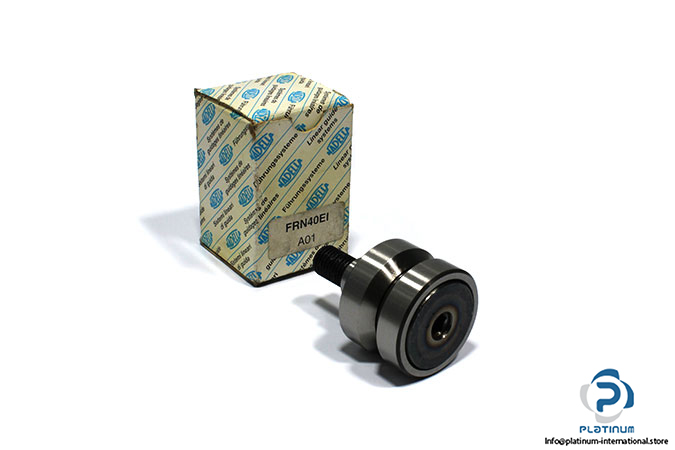

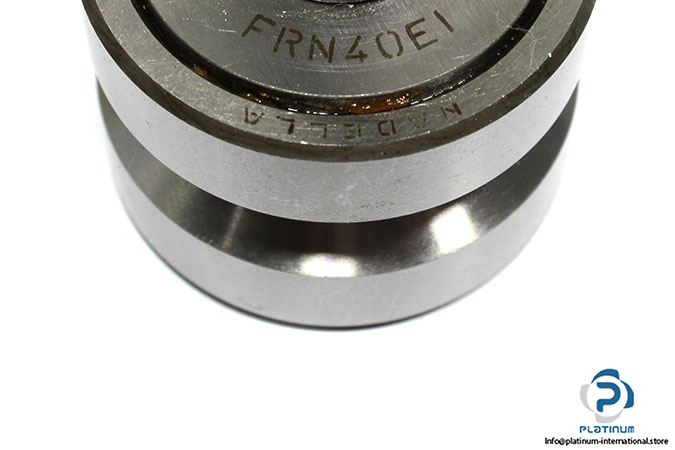

Nadella FRN40EI Guide Roller

Manufacturer: NADELLA

Type: Guide Rollers FRN

Model: FRN 40 EI

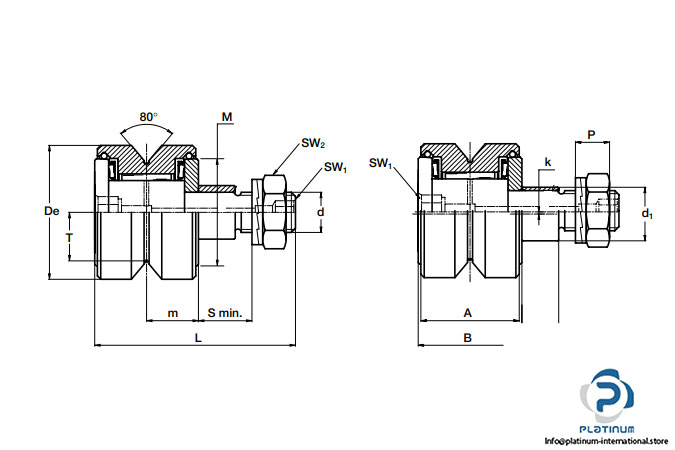

Dimensions

Outside diameter De: 40 mm

Stud diameter d₁: 16 mm

Total length L: 60 mm

Width outer ring A: 29.4 mm

Thread stud d: M12x1.5

Basic load ratings Dynamic:

Radial C_wr: 12300 N

axial C_Wa: 2600 N

Limit loads of the bearing:

Radial C_or: 17000 N

axial C_oa: 6700 N

Limit loads of the stud:

Radial F_r: 2800 N

axial F_a: 1350 N
