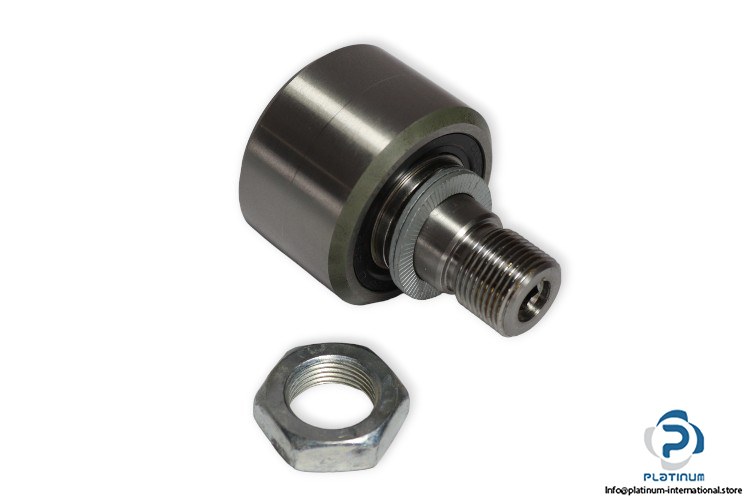

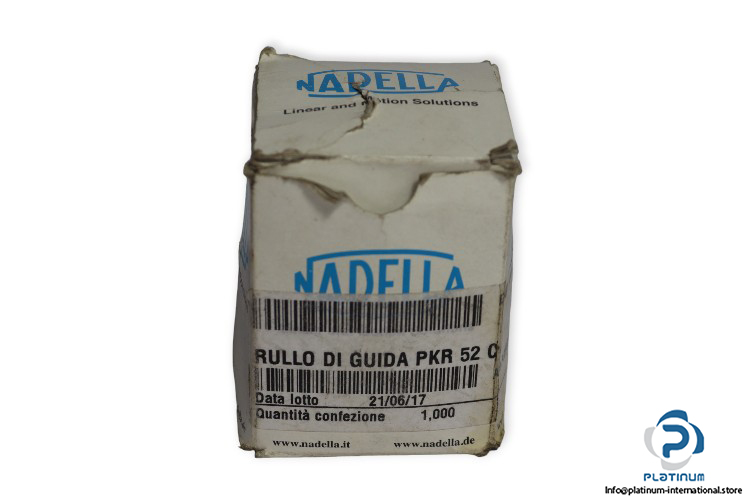

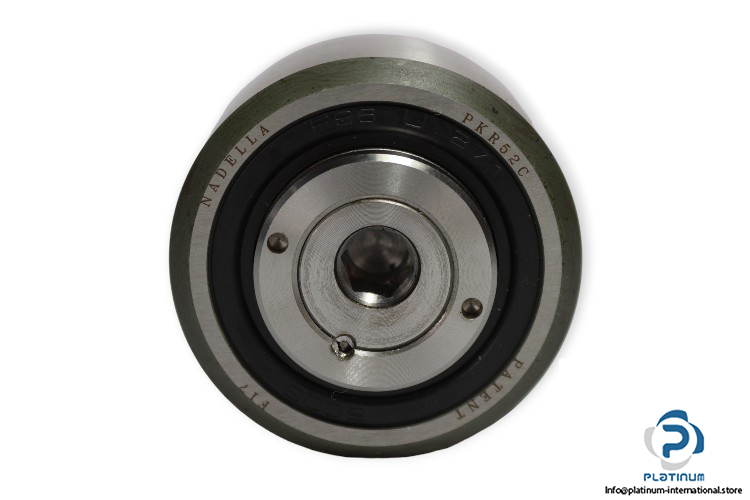

Nadella PKR 52 C Guide Roller
Manufacturer: NADELLA
Type: GUIDE ROLLERS PK
Model: PKR52C

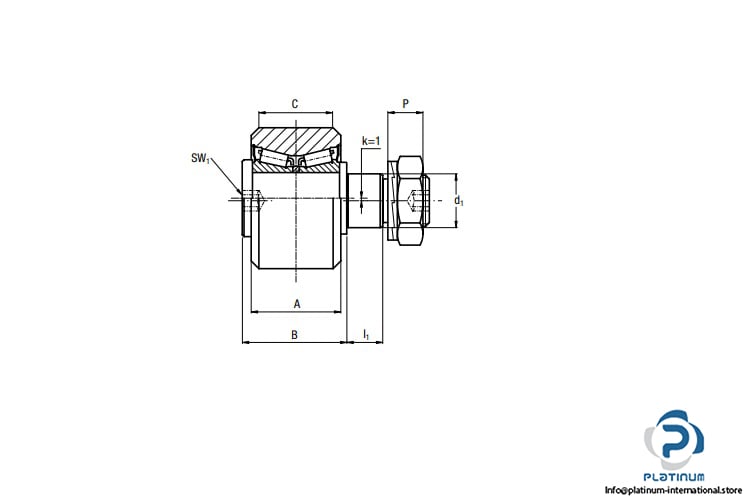

Dimensions
Outside diameter D: 52 mm
Attachment diameter d1: 21 mm
length L: 73 mm
P: 13.4 mm
A: 35 mm
B: 41 mm
d: M20 x 1.5
C: 29 mm
Dynamic load Cw: 42000 N
Limit loads: Radial Fr: 11900 N
Torque wrench settings: 80 Nm
