Nadella GLA42.10 2Z Guide Roller
New
In stock1 unitReady to ship
Guide Wheel
Nadella GLA42.10 2Z guide wheel with double shields, high dynamic load capacity, and precise dimensions for linear and mechanical guiding systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

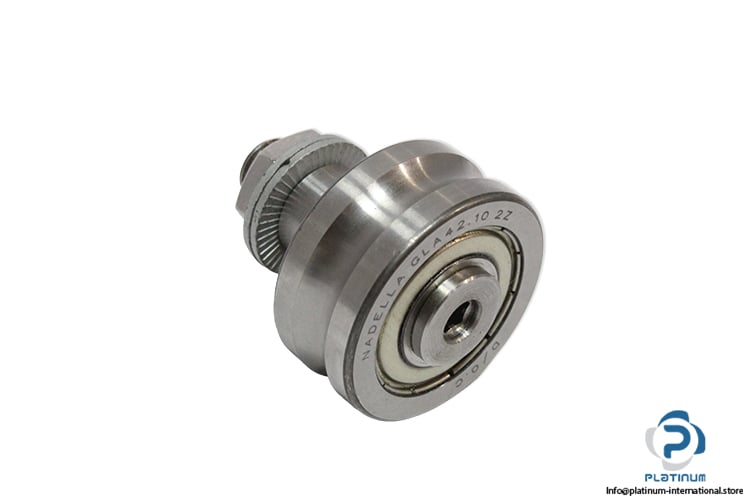

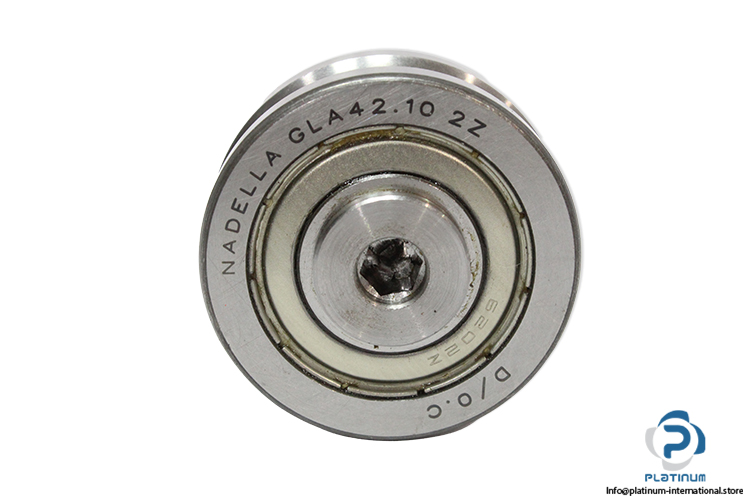

Nadella GLA42.10 2Z Guide Wheel
The Nadella GLA42.10 2Z guide wheel is designed for precise guidance and load handling in linear motion and mechanical guiding systems.
Manufacturer: Nadella
Type: Guide Wheel
Model: GLA42.10 2Z
Recommended for linear guide systems, cam followers, and industrial guiding mechanisms requiring high load capacity and smooth rolling performance.
Please contact us via Ask for assistance with any inquiries.

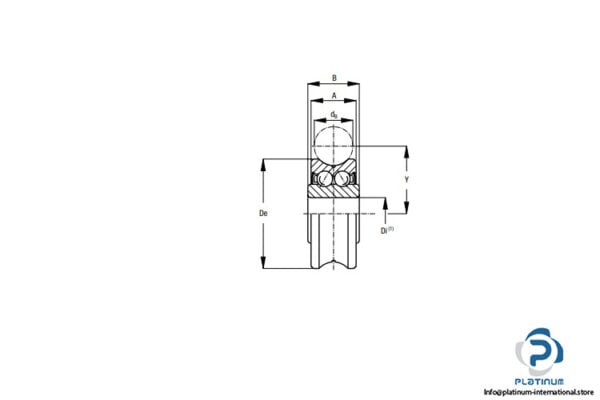

| Outside Diameter (De) | 42 mm |
| Attachment Diameter (d1) | 10 mm |
| Inner Diameter (Di) | 12 mm |
| Y Dimension | 24 mm |
| A Dimension | 19 mm |
| B Dimension | 19 mm |
| Dynamic Load (Cw) | 12000 N |
| Radial Limit Load (Cor) | 6900 N |
| Axial Limit Load (Coa) | 2100 N |
| Pressure Angle (α) | 60° |
| Sealing | 2Z, Shields on Both Sides |
