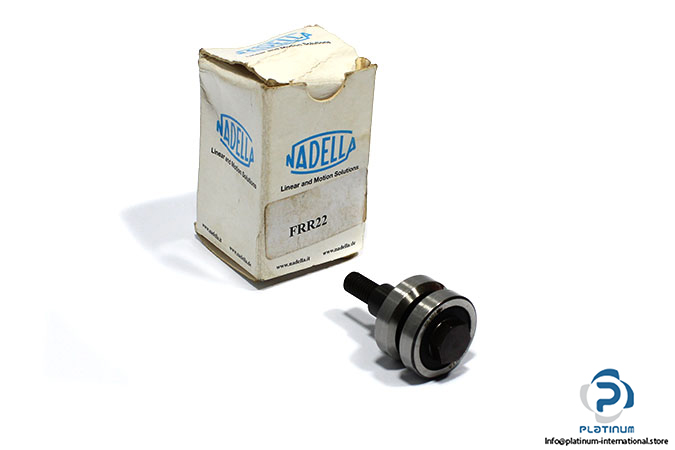

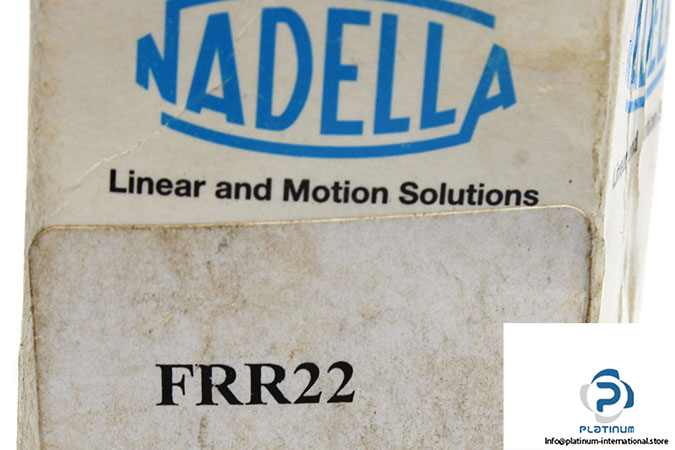

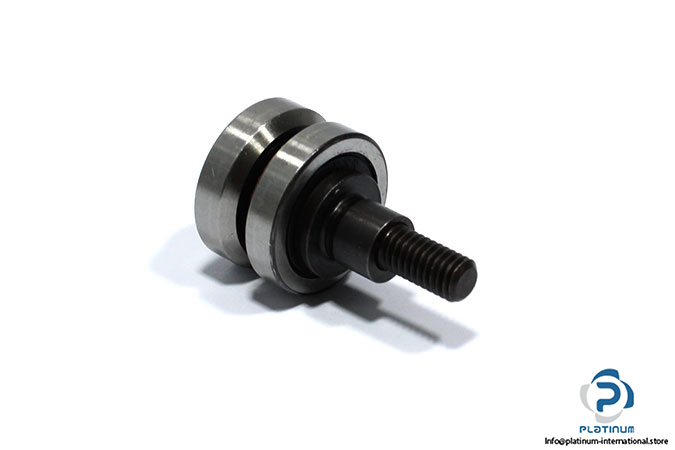

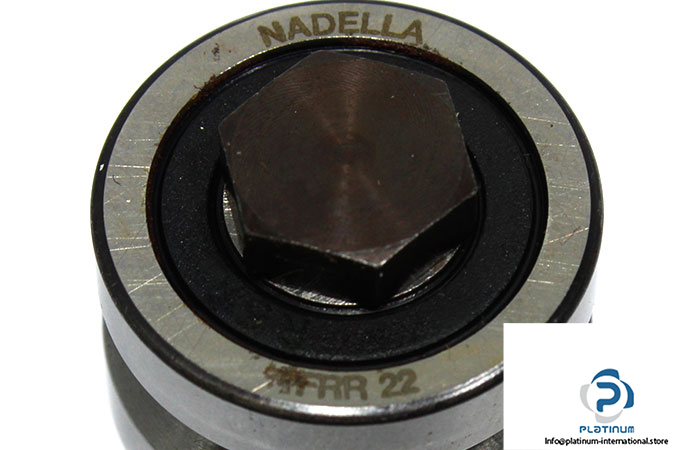

Nadella FRR22 Guide Roller
Manufacturer: NADELLA
Type: Guide Rollers FRR
Model: FRR 22
Design: Eccentric

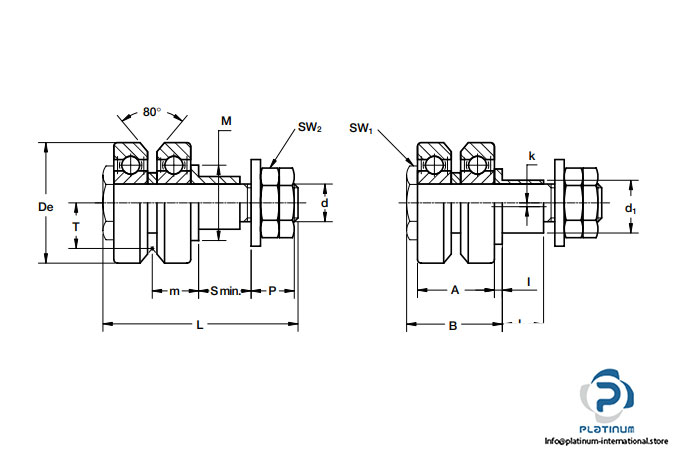

Dimensions
Outside diameter De: 22 mm
Stud diameter d1: 9 mm
Total length L: 39 mm
Width outer ring A: 13.9 mm
Thread stud d: M6x1
Basic load ratings:
Dynamic Cw: 700 N
Limit loads of the bearing:
Radial Cor: 176 N
axial Coa: 105 N
Limit loads of the stud:
Radial Fr: 800 N
axial Fa: 380 N
