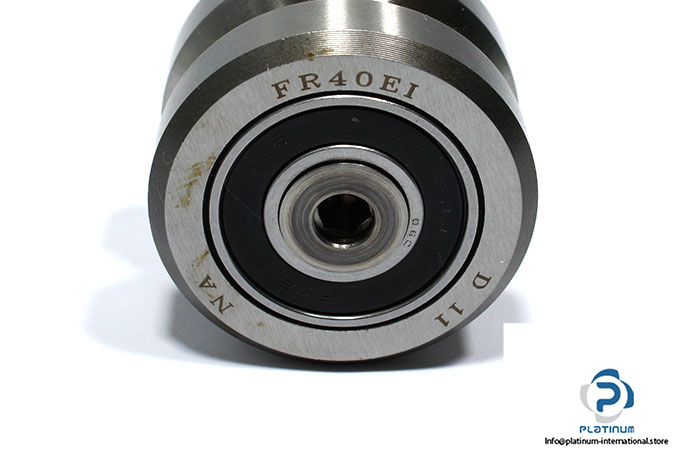

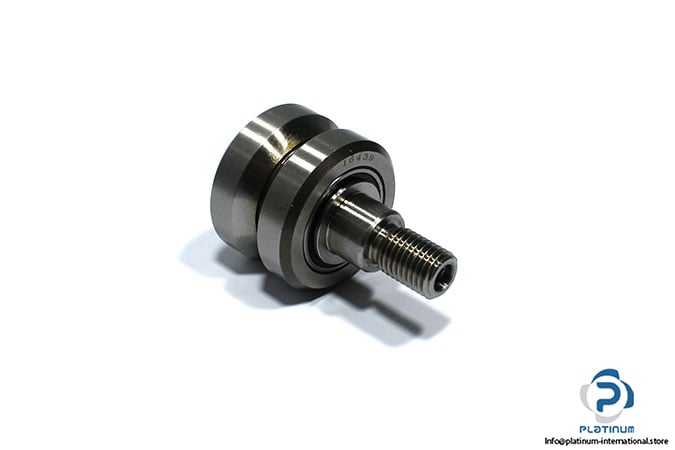

Nadella FR40EI Guide Roller
Manufacturer: NADELLA
Type: Guide Rollers FR
Model: FR 40 EI

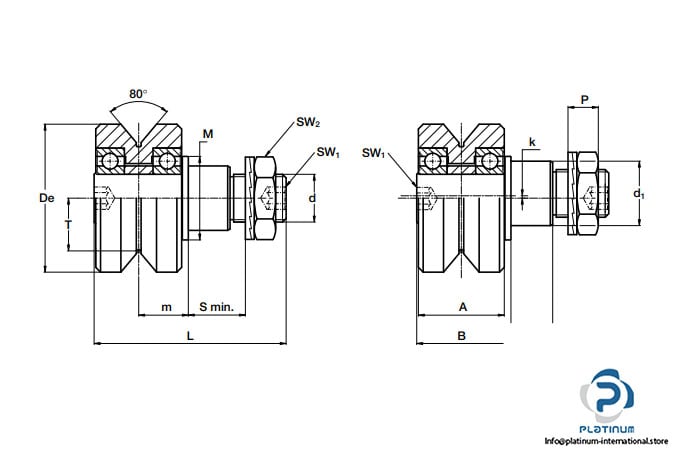

Dimensions
Outside diameter De: 40 mm
Stud diameter d1: 16 mm
Total length L: 59.5 mm
Width outer ring A: 28 mm
Thread stud d: M12x1.5
Basic load ratings:
Dynamic Cw: 7350 N
Limit loads of the bearing:
Radial Cor: 4000 N
axial Coa: 1300 N
Limit loads of the stud:
Radial Fr: 3000 N
axial Fa: 1300 N
