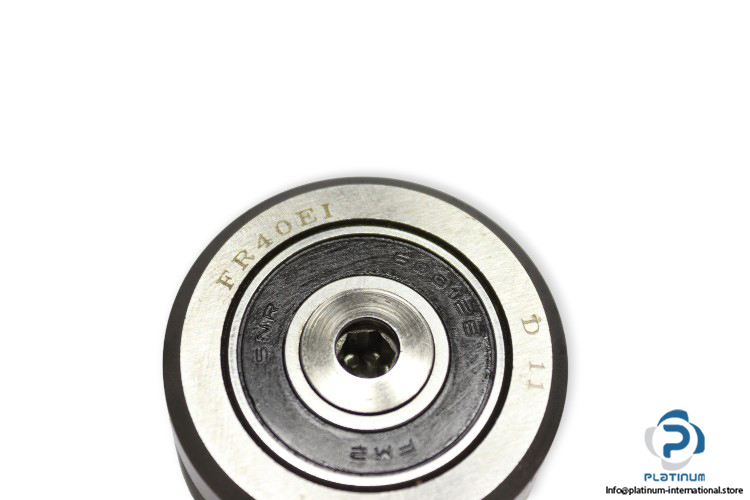

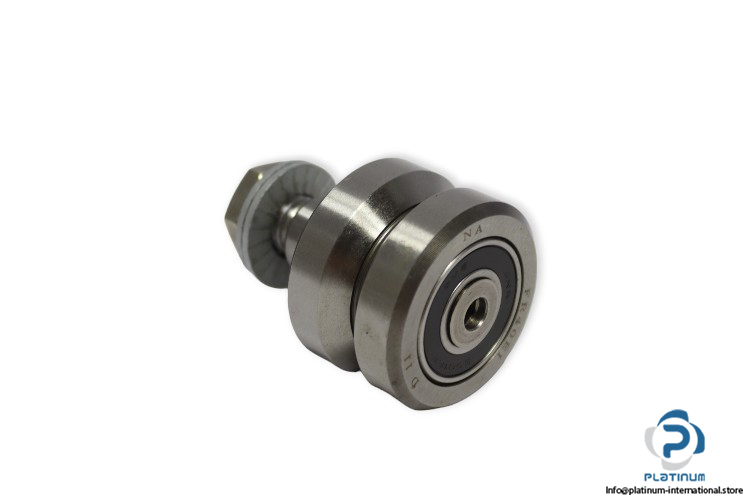

Nadella FR40EI Guide Roller

Manufacturer: Nadella
Type: Guide Rollers FR
Model: FR 40 EI

Design: concentric
Dimensions
Outside diameter De: 40 mm
Stud diameter d₁: 16 mm
Total length L: 59.5 mm
Width outer ring A: 28 mm
Thread stud d: M12x1.5
Basic load ratings:
Dynamic C_w: 7350 N
Limit loads of the bearing:
Radial C_or: 4000 N
axial C_oa: 1300 N
Limit loads of the stud:
Radial F_r: 3000 N
axial F_a: 1300 N
Pressure angle α: 40°
