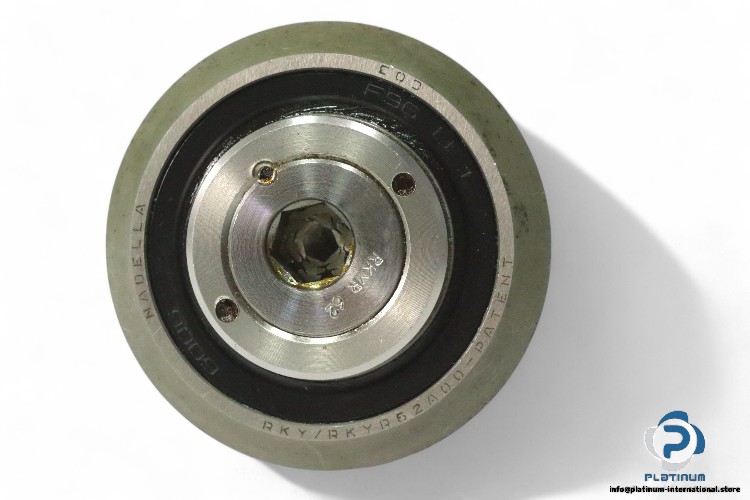

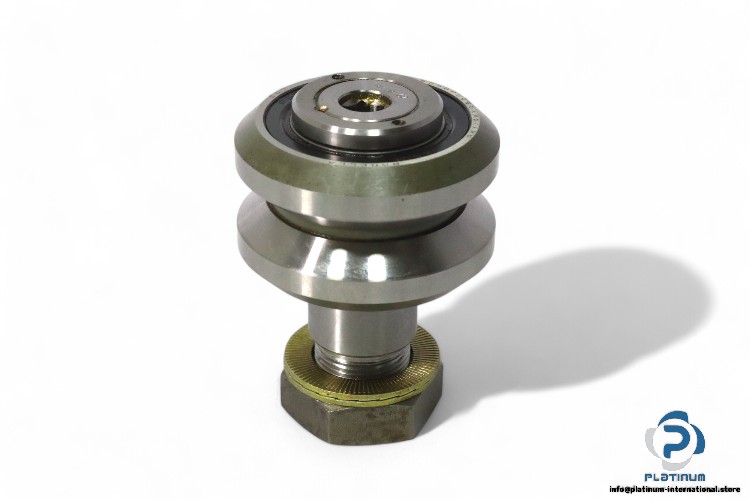

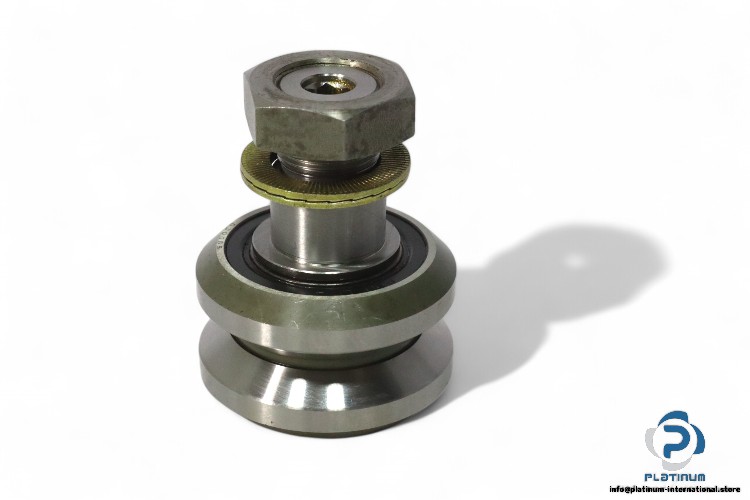

Nadella RKYR62 C03 Eccentric Guide Roller
Manufacturer: Nadella
Type: ECCENTRIC GUIDE ROLLER
Model: RKYR 62 C03
Design: C03, Close outer ring running accuracy according to P6
Type: RKYR(Guide rollers with tapered roller bearings), Eccentric

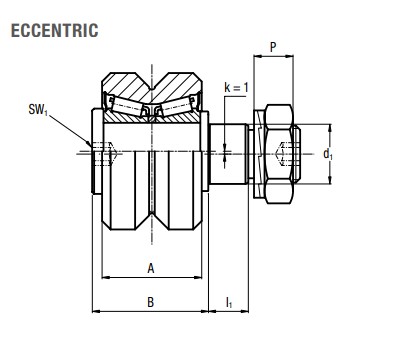

Dimensions
Outside diameter De: 62 mm
Stud diameter d1: 27 mm
Total length L: 83 mm
Width outer ring A: 37 mm
Thread stud d: M24 x 1.5
Basic load ratings Dynamic: 46000 N
Limit loads:
Radial Fr: 19000 N
axial Fa: 8300 N
Torque wrench settings: 160 Nm
Pressure angle α: 45°
