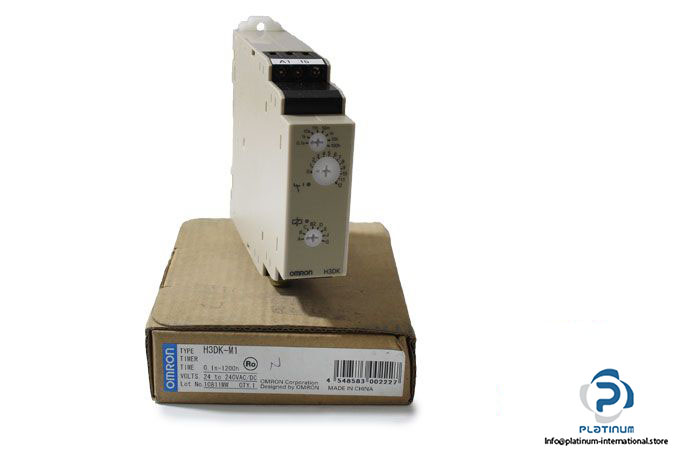

Manufacturer: OMRON

Type: Analog Timer

Model: H3DK-M1

Rated Power Supply Voltage: 24 … 240 VAC / 24 … 240 VDC

Ripple: 20% max.

Time Range: 0.1s … 1200 hrs

Frequency: 50/60 Hz

Input Signals: Start (Minimum input signal width: 50 ms)

Input Method: Voltage input

Control Output (Type): Time-limit: SPDT

Connecting Method: Terminal blocks

Power Consumption: Approx. 4.5 VA (at 240 VAC)

Reset Voltage: 10% max. of rated supply voltage

Number of Time Ranges: 8

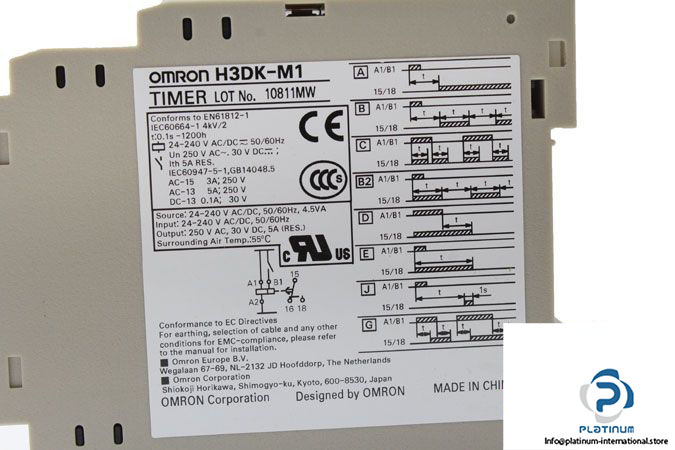

Operation Mode: ON delay, Flicker OFF start, Flicker ON start, Signal ON/OFF delay, Signal OFF delay, Interval, One shot output

Ambient Temperature: -20 … 55℃

Terminal: Screw

Degree of Protection: IP30 (Terminal Block: IP20)

Connecting Method: Terminal blocks

Dimensions: 22.5 X 100 X 89.4 mm

Weight: Approx. 0.12 Kg
