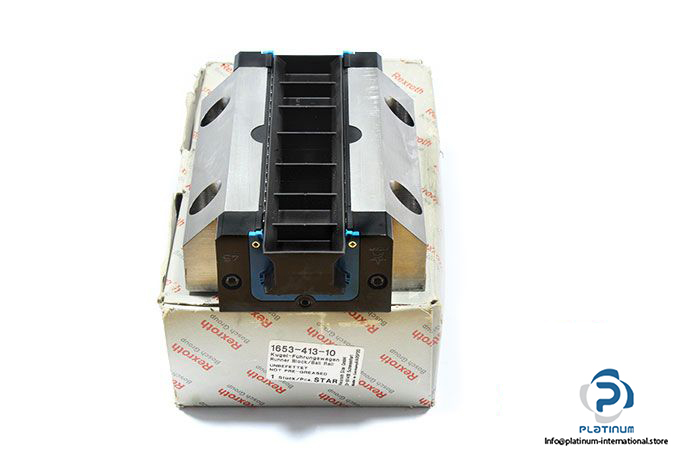

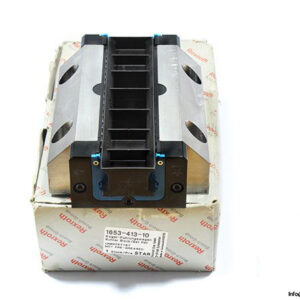

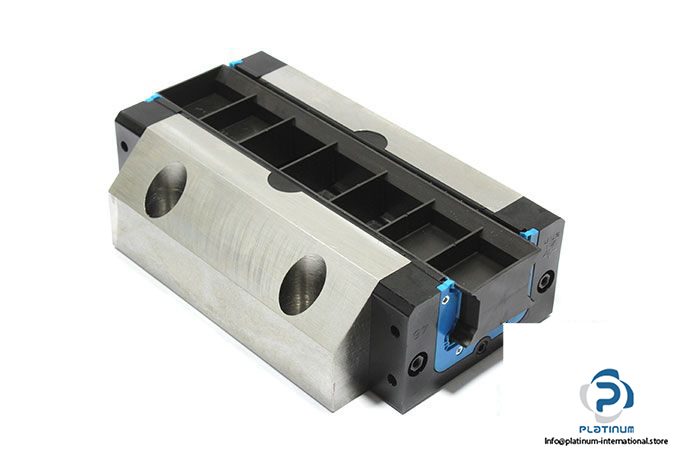

Manufacturer: Rexroth Star

Type: Ball Runner Block FLS

MNR: 165341310

Size: 45 mm

Mechanical Format: KWC

Design: FLS – Flanged, Long, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 90400 N

Static Load Capacity C₀: 128500 N

Dynamic Torsional Moment Load Capacity M_t:  2440 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 1700 Nm

Accuracy Class: H

Preload Class: C1 – Low

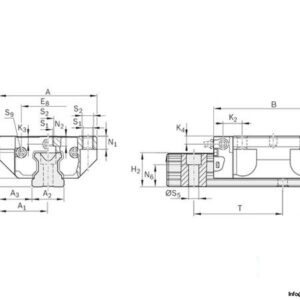

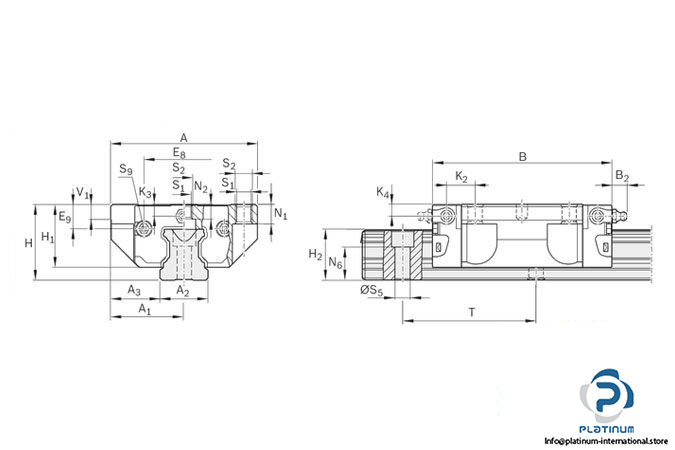

Dimensions

Width (A): 120 mm

Length (B): 170 mm

Height (H₁): 50 mm

Admissible Operating Temperature: -10 … +80 °C

Weight: 4.5 kg
