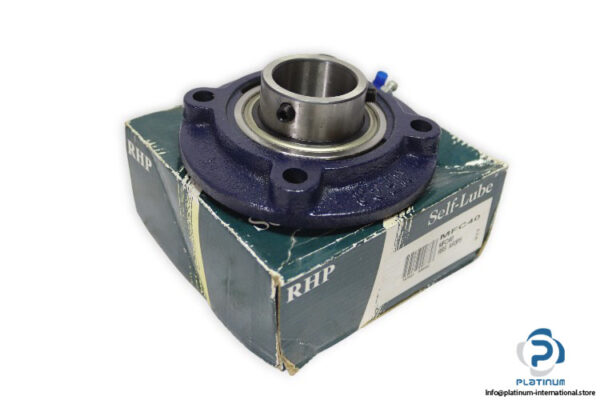

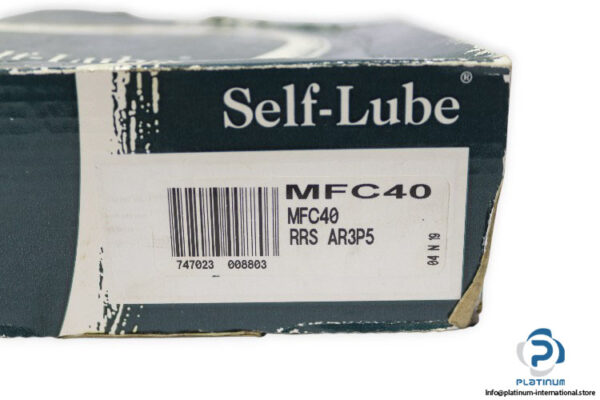

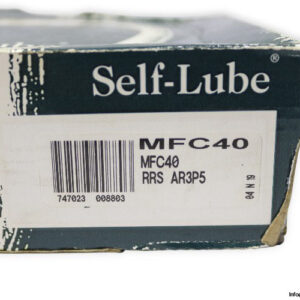

RHP MFC40 Round Self-Lube Cast Iron Flange Cartridge Bearing Unit
The RHP MFC40 is a precision-engineered round self-lube cast iron flange cartridge bearing unit designed for reliable and efficient shaft support in industrial applications. With its robust cast iron housing and self-lubricating bearing insert, it offers high performance, easy installation, and long service life under demanding operating conditions.
- Manufacturer: RHP
- Type: Round Self-Lube Cast Iron Flange Cartridge Bearing Unit
- Model: MFC40
- Series: MFC

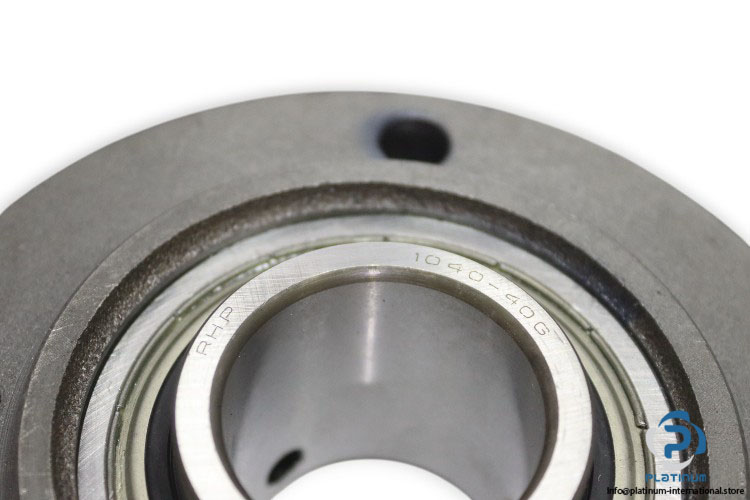

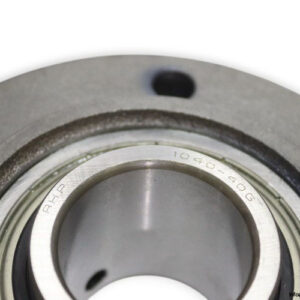

- Bearing No.: 1040-40G

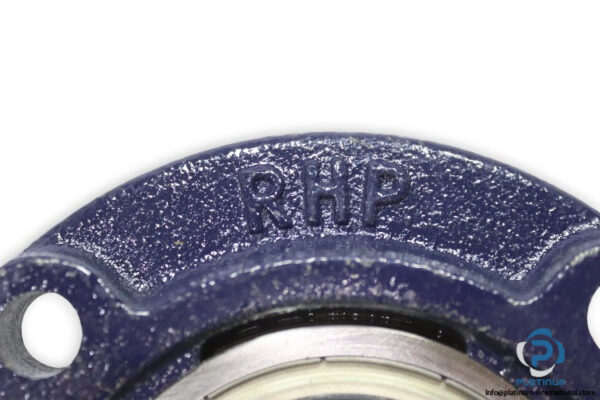

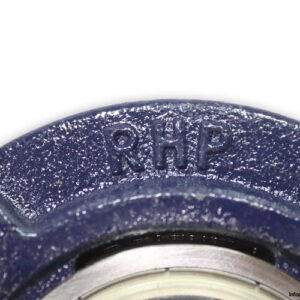

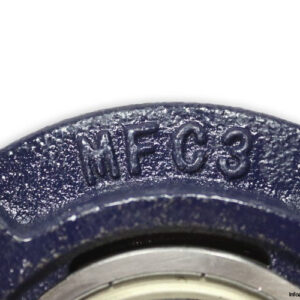

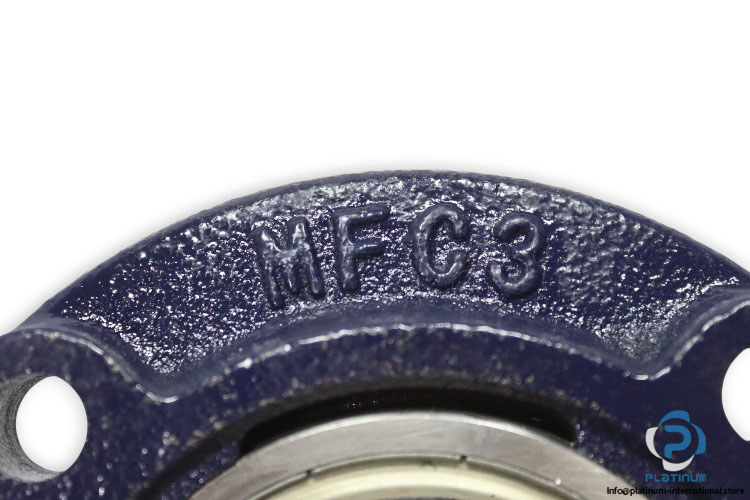

- Housing No.: MFC3

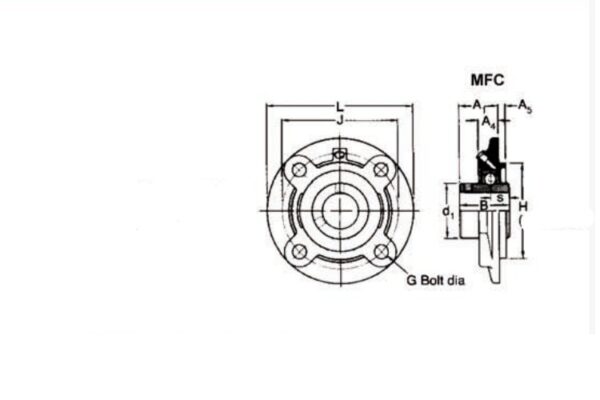

Technical Information
- Shaft Diameter: 40 mm
- Base to Center Height (H): 92.07 mm
- Total Length (L): 133.4 mm
- Bolt Hole Spacing (J): 111.12 mm
- Inner Diameter (d): 40 mm
- Outer Diameter (D): 133.4 mm
- Width (B): 49.23 mm
- Static Load Rating C0r: 17900 N
- Dynamic Load Rating Cr: 29100 N
- Speed: 4000 rpm max.
