Manufacturer: SKF
Type: Adapter sleeve H
Model: H3124

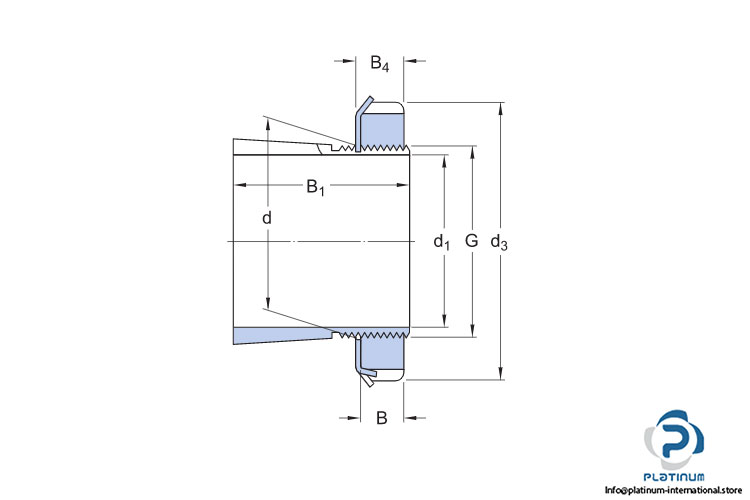

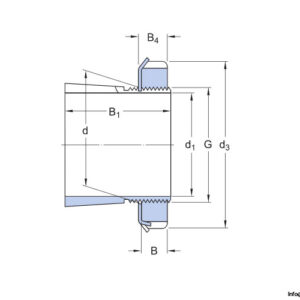

Dimensions:
Bore Diameter d1: 110 mm
Outside diameter small taper d: 120 mm
Outer diameter lock nut d3: 155 mm
Sleeve length B1: 88 mm
Width lock nut including lock washer B4: 22 mm
Thread G: M120x2
External taper: 1:12
Locknut: KM24
Lock washer: MB24
