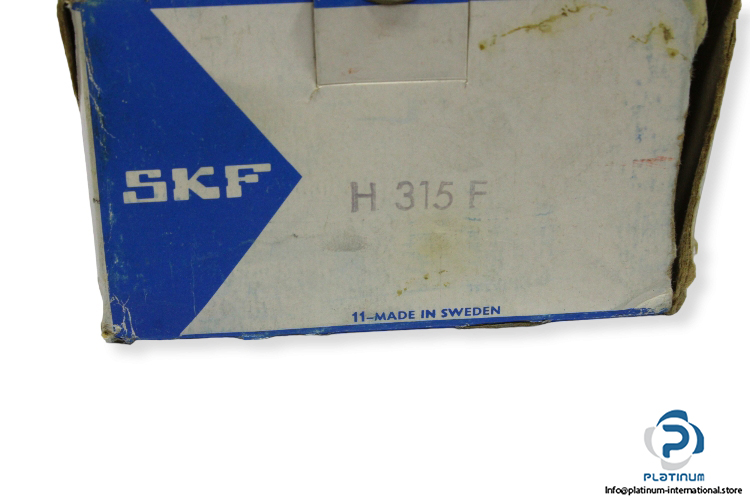

Manufacturer: SKF
Type: Adapter sleeve H
Model: H315F
Replaces: H 315

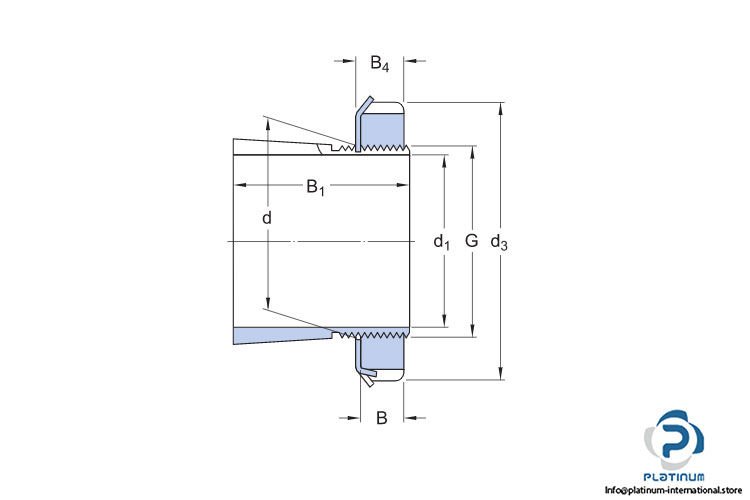

Dimensions:
Bore Diameter d1: 65 mm
Outside diameter small taper d: 75 mm
Outer diameter lock nut d3: 98 mm
Sleeve length B1: 55 mm
Width lock nut including lock washer B4: 14.5 mm
Thread G: M75x2
External taper: 1:12
Locknut: KM15
Lock washer: MB15
