SNR USFD.206 FLANGED HOUSING UNIT

Manufacturer: SNR
Type: Flanged housing unit
Model: USFD206
Housing: FD206
Bearing designation: US206G2

SKU: 1030820 Category: Tags: , , , , , , , , , , , , , ,
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
Add to quote

Manufacturer: SNR
Type: Flanged housing unit
Model: USFD206
Housing: FD206
Bearing designation: US206G2

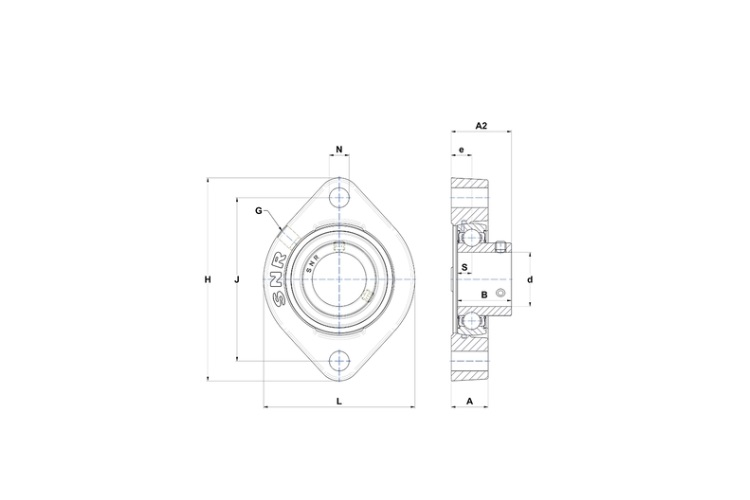

Dimensions
Shaft Diameter d: 30 mm
Overall Length L: 84 mm
Overall Height H: 112.5 mm
Width of inner ring B1: 30 mm
Distance Between Attachment Bolts J: 90.5 mm
Overall unit width A2: 33.4 mm
Basic dynamic load rating: 19500 N
Basic static load rating: 11200 N
Temperature range: -20 °C…100°C
Material: Grey cast iron
Locking Device: socket set screw

Weight 0,72 kg
