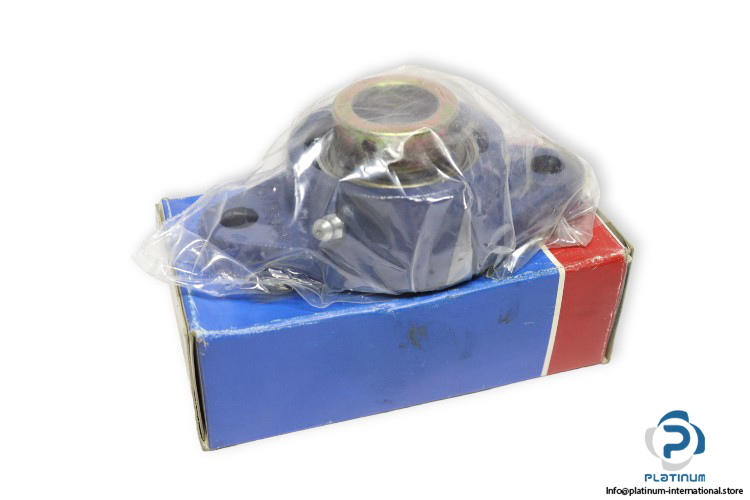

SKF Fytb 25 FM Oval Flanged Ball Bearing Unit

Manufacturer: SKF
Type: Oval flanged ball bearing unit
Model: FYTB 25 FM
Bearing: YET 205

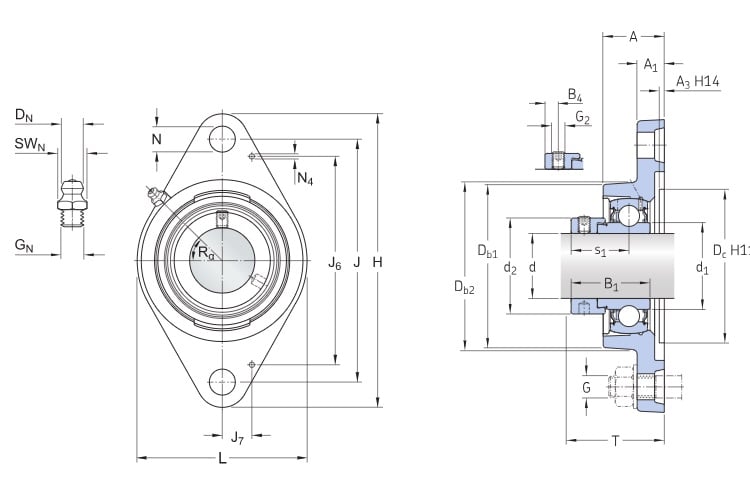

Dimensions
Shaft diameter d: 25 mm
Width of housing A: 30 mm
Width of inner ring B: 21.5 mm
Overall bearing width B1: 31 mm
Distance of attachment bolts J: 99 mm
Overall length L: 70 mm
Overall height H: 124 mm
Diameter of attachment bolt hole N: 11.5 mm
Overall width T: 42.5 mm
Basic dynamic load rating C: 14 kN
Basic static load rating C₀: 7.8 kN
Fatigue load limit P_u: 0.335 kN
Limiting Speed: 7000 r/min
Sealing: Contact seal on both sides
Material, housing: Cast iron
mounting: 2-Bolt Base
