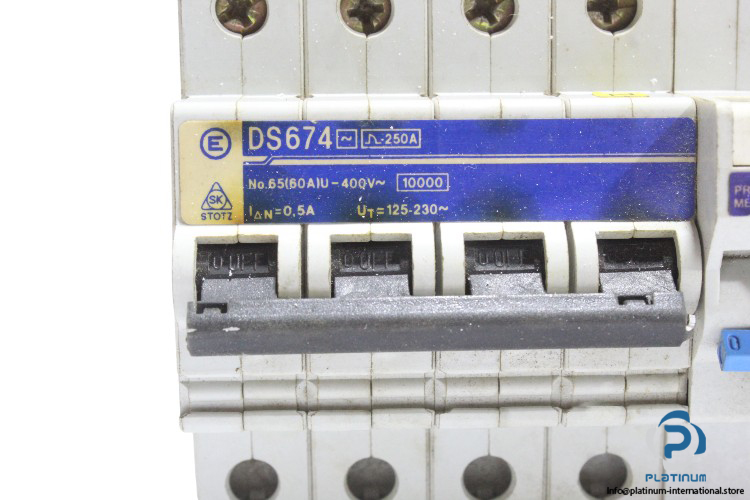

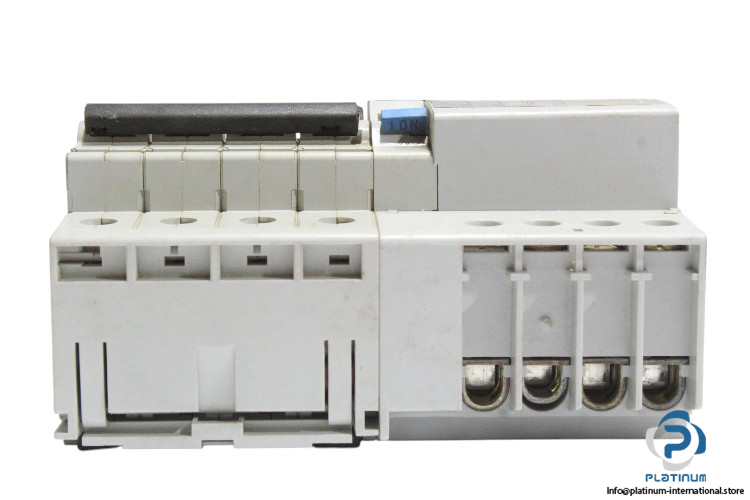

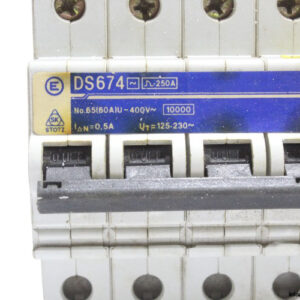

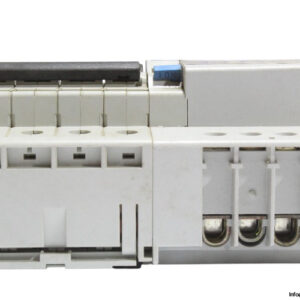

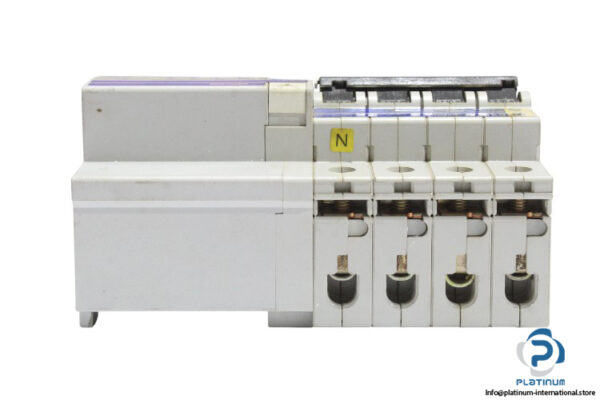

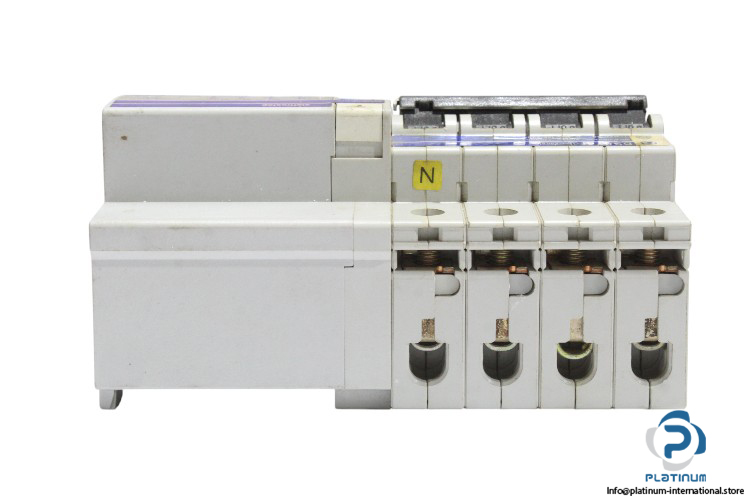

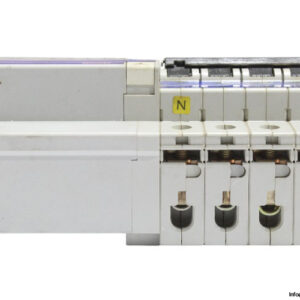

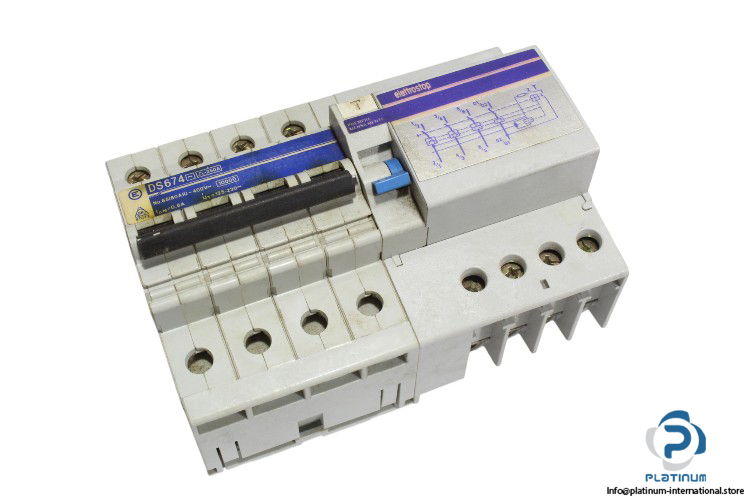

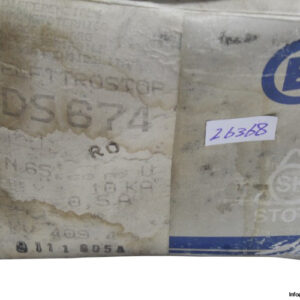

Stotz DS674 “ Differential Magnetic Circuit Breaker
The Stotz DS674 differential magnetic circuit breaker offers reliable protection for electrical circuits by ensuring safety through differential and magnetic tripping mechanisms. It is built to meet the highest standards of operational voltage and current ratings for industrial applications.
- Manufacturer: Stotz
- Type: Differential Magnetic Circuit Breaker
- Model: DS674

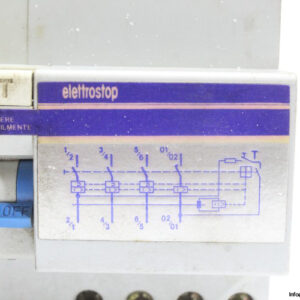

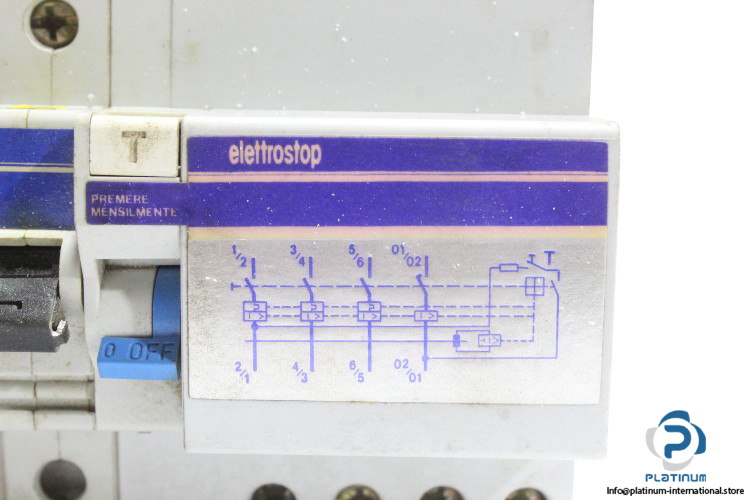

- Series: Elettrostop
Technical Information:
- No. of Poles: 4P
- Short-Circuit Current Rating (SCCR): 30 mA
- Tripping Characteristic: C
- Rated Residual Current: 0.5 A
- Rated Operational Voltage: 400 V AC
- Rated Current (In): 65A (60A)
- Nominal Voltage: 125 / 230 V AC
- Rated Short-Circuit Capacity: (400 V AC) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 15 kA
- Maximum Breaking Capacity: 10 kA
- Rated Frequency (f): 50 to 60 Hz
- Power Loss: 28.2 W
- Ambient Air Temperature Operation: -25 to +55 °C
- Dimensions: 140 x 85 x 69 mm
