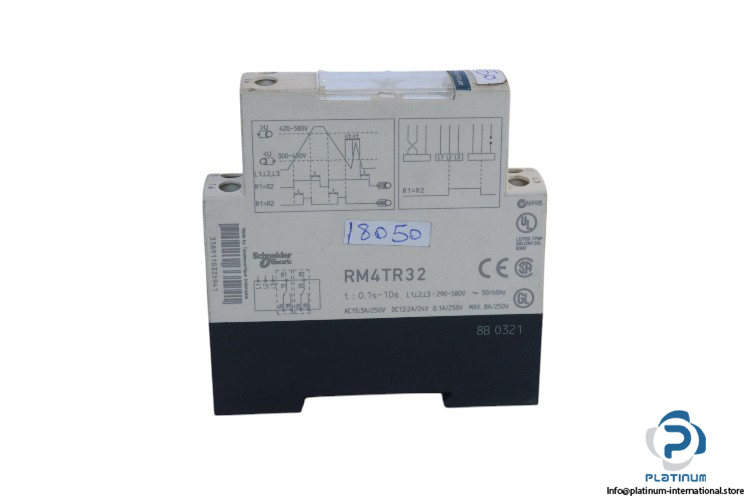

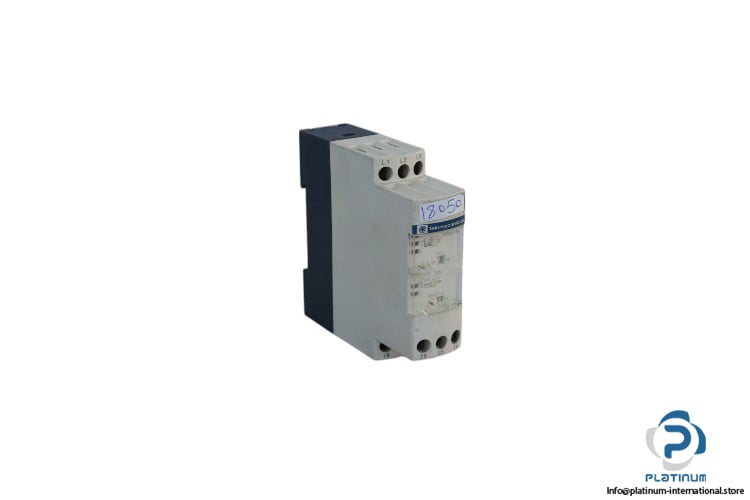

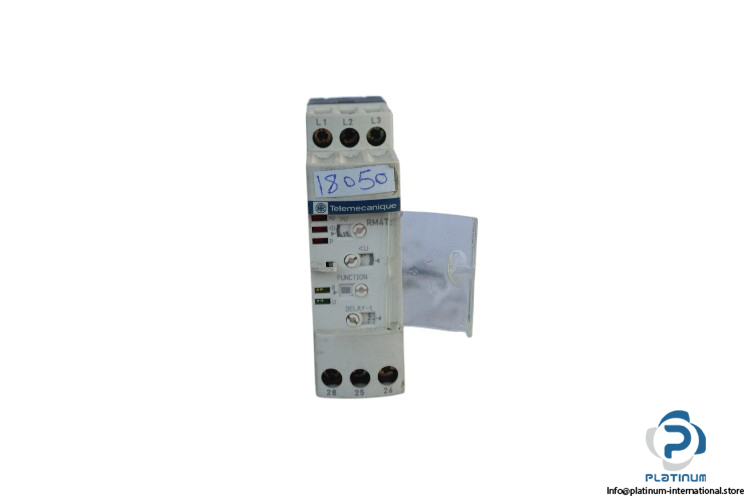

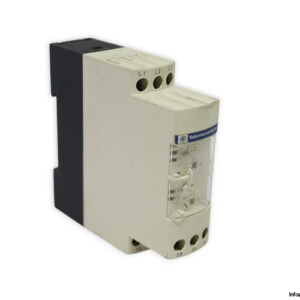

Telemecanique / Schneider Electric RM4TR32 Three-Phase Network Control Relay
The Telemecanique / Schneider Electric RM4TR32 is a reliable and high-performance three-phase network control relay designed for a variety of industrial applications. This relay is part of the Harmony Relay range and offers precise control and protection for electrical systems, ensuring smooth operation and enhanced safety. The RM4TR32 features an adjustable time delay, wide voltage range, and high switching capability.
- Manufacturer: Telemecanique / Schneider Electric
- Type: Three-Phase Network Control Relay
- Model: RM4TR32
- Range of Product: Harmony Relay
- Relay Name: RM4-T
Technical Information
- Time Delay Adjustable: 0.1 to 10 s
- Rated Operational Voltage: 250 V
- Frequency: 50/60 Hz
- Control Threshold Undervoltage: 300 to 430 V
- Control Threshold Overvoltage: 420 to 480 V
- Output Contacts: 2 C/O
- Poles Description: 3 P
- Rated Operational Current: 3 A at AC15, 2A at DC13
- Maximum Switching Voltage: 440 V AC
- Switching Voltage: 250 V AC
- Ambient Air Temperature for Operation: -20 to 65 °C
- Degree of Protection: IP20
- Dimensions: 78 x 22.5 x 80 mm
The RM4TR32 relay is designed to provide reliable protection and control, especially in demanding environments. It is a great solution for controlling and safeguarding three-phase electrical systems.
