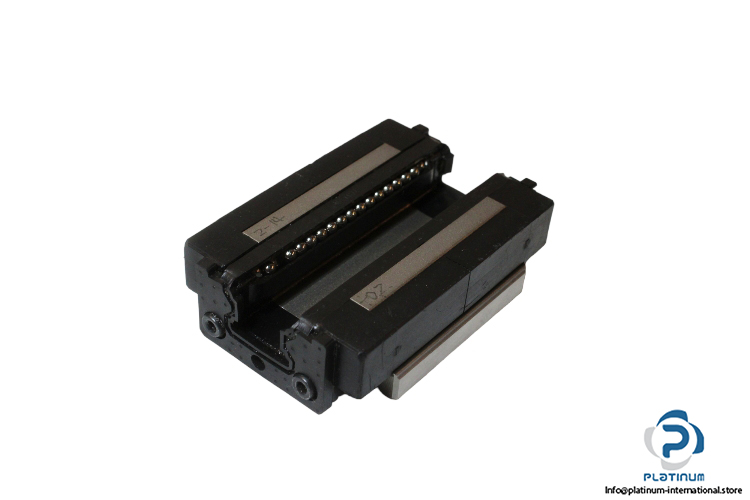

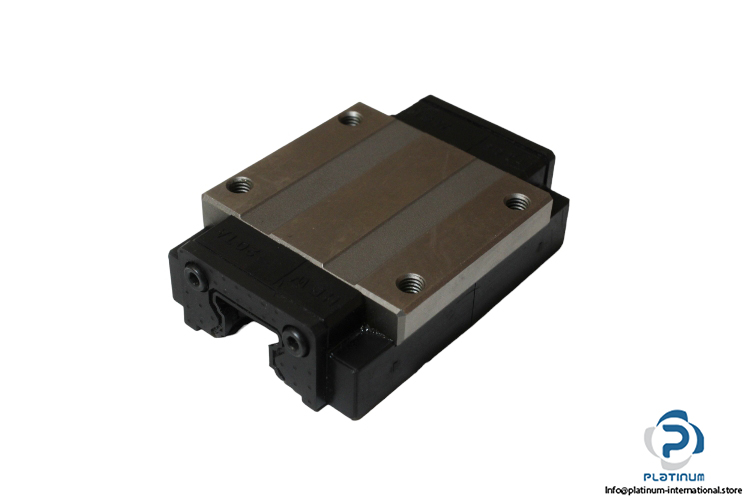

Manufacturer: TSUBAKI NAKASHIMA

Type: Linear Guideway Block

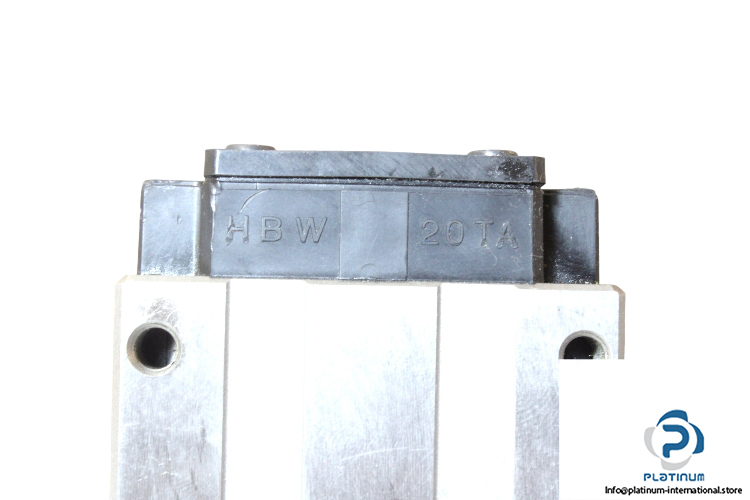

Model:  H20TA



Size: 20

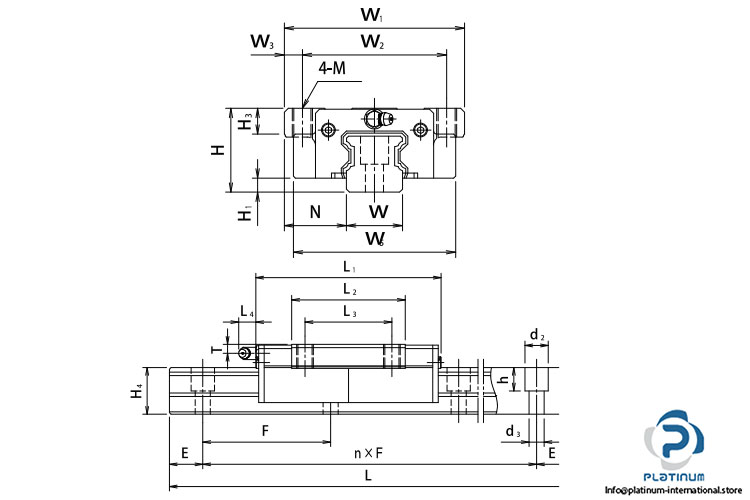

Dimensions

Total Height H: 30 mm

Block Height: 25 mm

Width W₁: 63 mm

Width W₅: 60 mm

Block Length L₁: 92 mm

L₂: 58 mm

L₃: 40 mm

W₂: 53 mm

Block Type: Flange Type

Mounting Hole: 4 Tapped holes

Basic Load Ratings:

Dynamic C₅₀: 15820 N

Dynamic C₁₀₀: 12560 N

Static C₀: 31020 N
