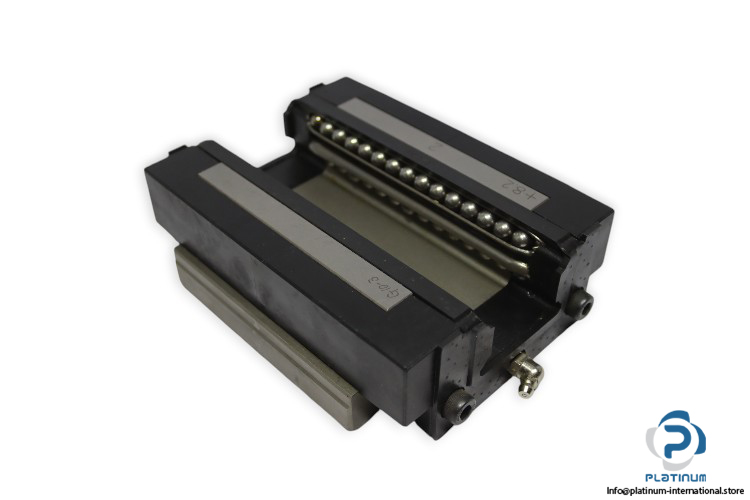

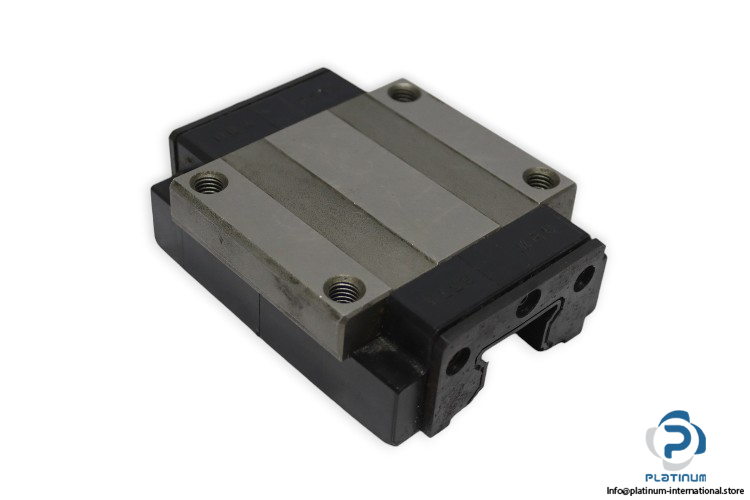

Tsubaki H35TA Linear Bearing Block
Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK

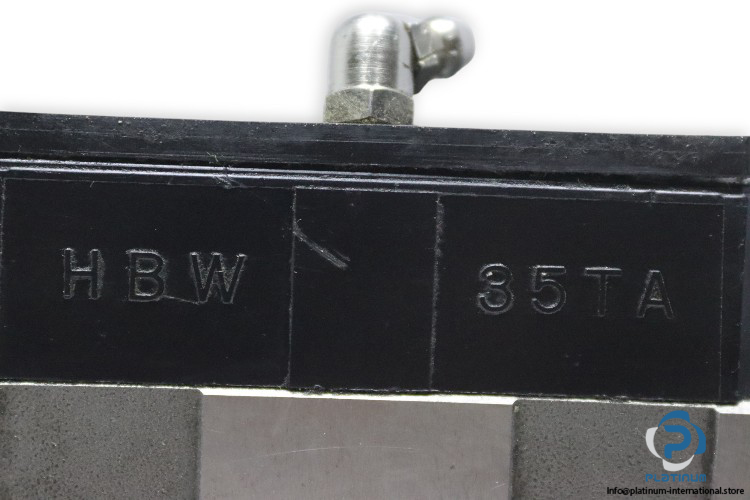

Model: H35TA / HBW-35-TA
Size: 35 mm

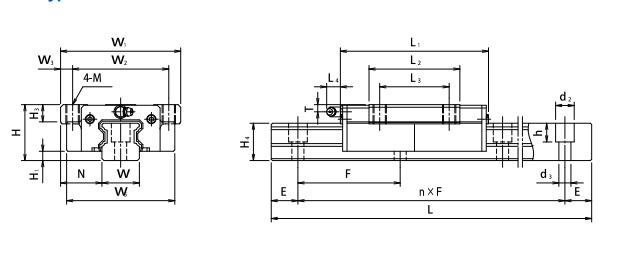

Dimensions
Total Height H: 48 mm
Block Height(H-H1): 40 mm
Width N: 33 mm
Width W1: 100 mm
Width W3: 9 mm
Block Length L1: 129 mm
L2: 80 mm
L3: 62 mm
W2: 82 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M10×16)
Basic Load Ratings:
Dynamic C50: 38730 N
Dynamic C100: 30740 N
Static C0: 68060 N
