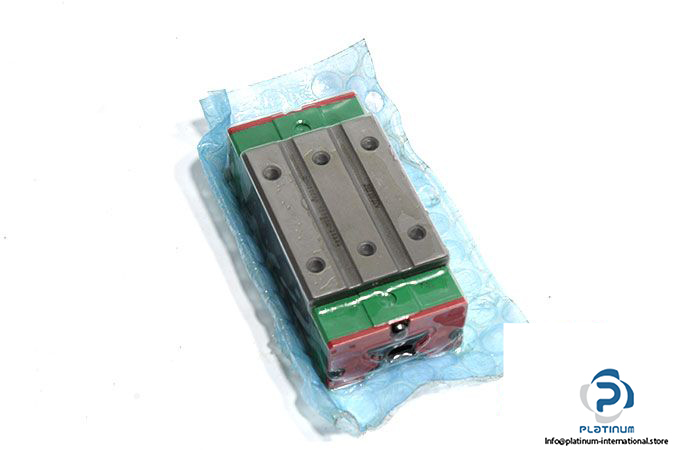

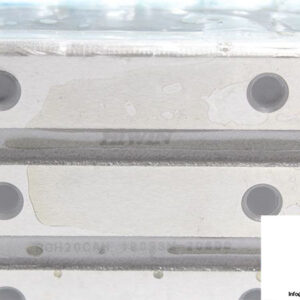

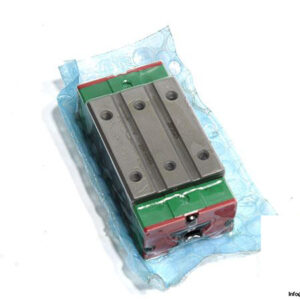

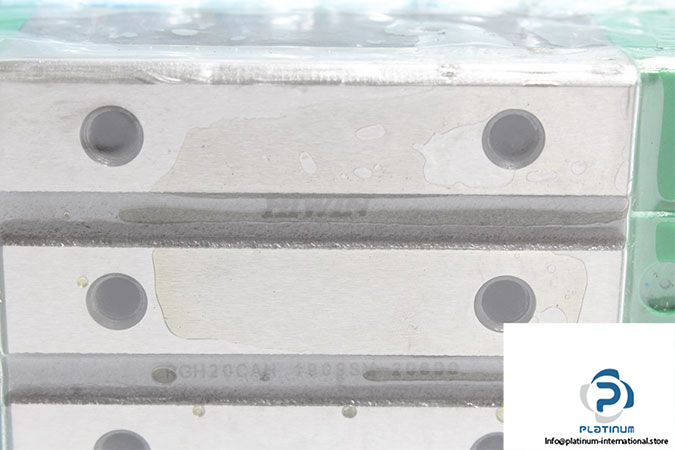

HIWIN RGH20CA LINEAR GUIDEWAY BLOCK

The Hiwin RGH20CA is a high-rigidity square-type linear guideway block from the RG Series, engineered for heavy-load applications. With roller-based motion and robust load ratings, it ensures precision and stability in demanding linear motion systems.

Manufacturer: Hiwin
Type: Linear Guideway Block
Model: RGH20CA
MRN: RGH20CAH 1908SM-20800

Technical Information

• Size: 20 mm
• Total Height H: 34 mm
• Block Width W: 44 mm
• Block Length L: 86 mm
• Block Height: 29 mm
• Distance Between Holes: 32, 36 mm
• Dynamic Load Rating Cr: 21.3 kN
• Static Load Rating C0r: 46.7 kN
• Series: RG Series
• Block Type: H (Square Type)
• Load Type: C (Heavy Load)
