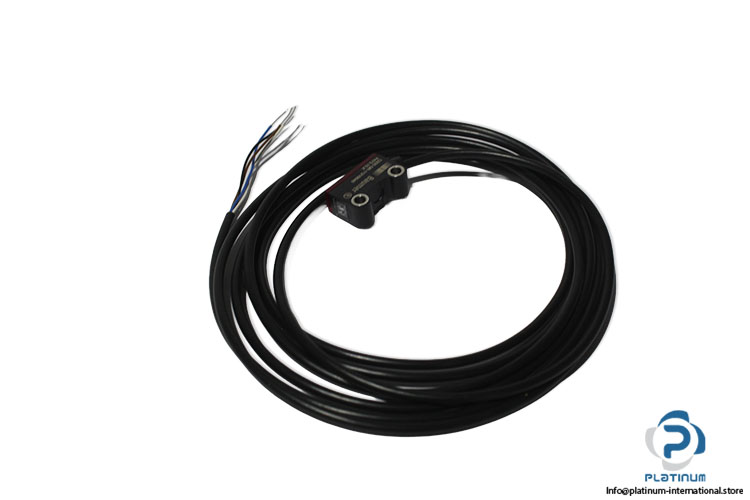

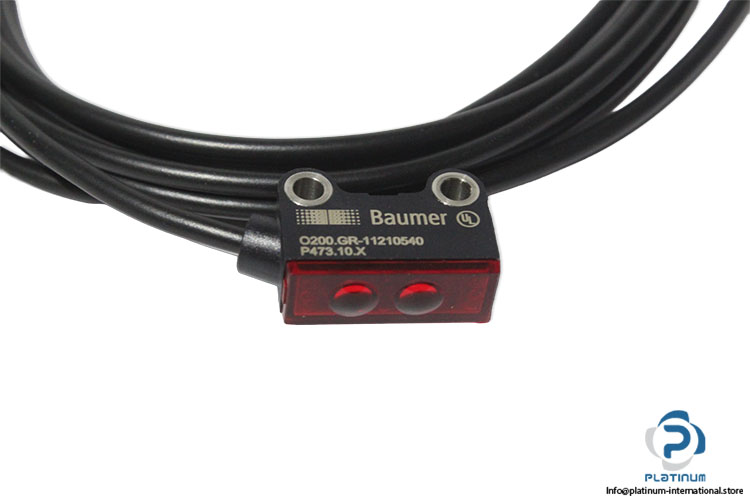

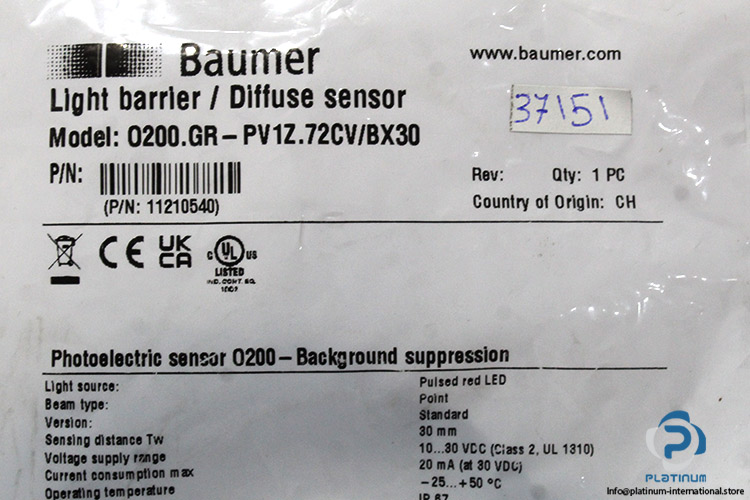

Baumer O200.GR-PV1Z.72CV/BX30 Diffuse Sensor
新
有现货1 单元现货供应
Diffuse Sensor The Baumer O200.GR-PV1Z.72CV/BX30 is a compact diffuse sensor with background suppression technology for precise object detection. Operating from 10 to 30 VDC with a 30 mm sensing distance and IP67 protection, it is designed for reliable use in industrial automation and machine control applications.
海量库存
全球运输
专家支持
质量保证
| Part No. | 11210540 |
| Series | O200 |
| Design | Rectangular |
| Voltage supply range | 10 … 30 VDC |
| Current consumption | max. 20 mA (at 30 VDC) |
| Output current | 50 mA |
| Sensing distance | 30 mm |

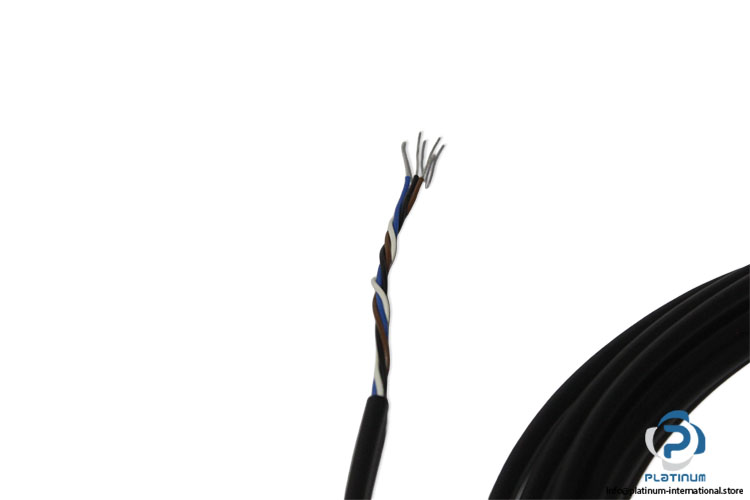

| Connection type | Cable, 2 m, No. of wires: 4 |
| Width | 8 mm |
| Height | 25.1 mm |
| Depth | 14.1 mm |
| Cable characteristics | PVC / PVC 4 x 0.08 mm² |
| Wave length | 644 nm |
| Output function | Light / dark operate |
| Mechanical mounting | Sleeve smooth (stainless steel) |
| Housing material | Plastic (ASA, PMMA) |
| Protection class | IP 67 |
| Operating temperature | -25 … +50 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1097880 |
| Weight | 0,03 |
