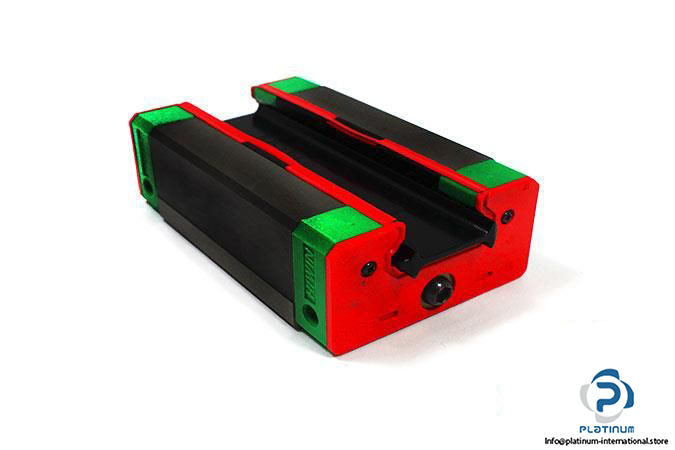

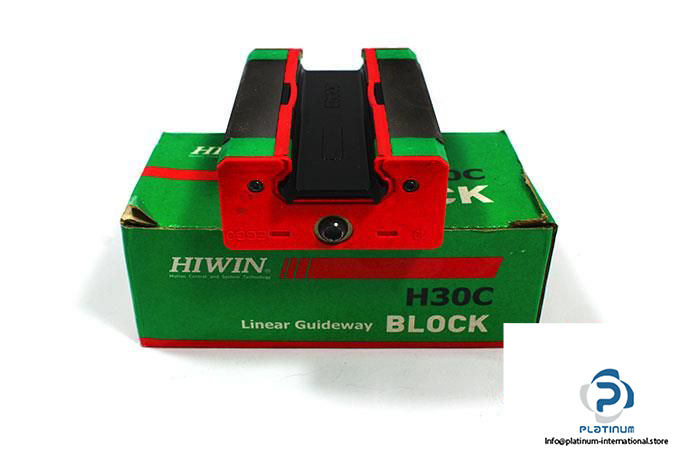

Hiwin EGH30CA Linear Guideway Block
HIWIN EGH30CA LINEAR GUIDEWAY BLOCK
Engineered for heavy-duty linear motion, the Hiwin EGH30CA guideway block delivers high load capacity and precise alignment. Designed with a square profile and top-mounting configuration, it is ideal for demanding automation and machinery applications.
Manufacturer: Hiwin
Type: Linear Guideway Block

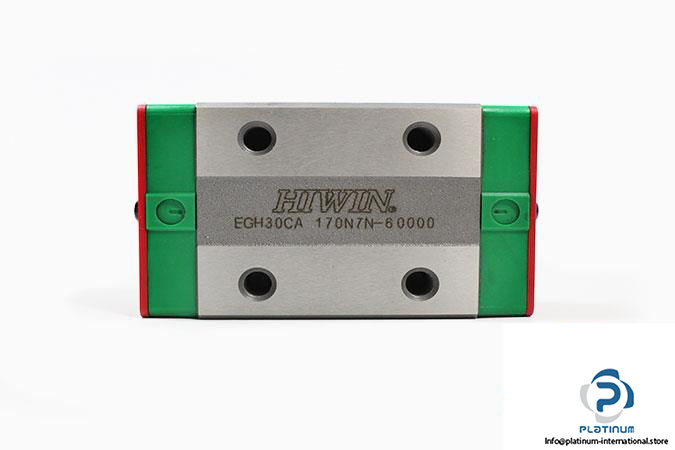

MNR: EGH30CA 170N7N-60000
Size: 30 mm
| Block Height | 32 mm |
| System Height | 42 mm |
| Block Width | 60 mm |
| Block Length | 98.1 mm |
| Thread Size | M6 x 25 |
| Distances Between Holes | 40, 40 mm |
| Rail Width | 28 mm |
| Rail Height | 23 mm |
| Block Type | Square |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 23.7 kN |
| Basic Static Load Rating | 47.46 kN |
