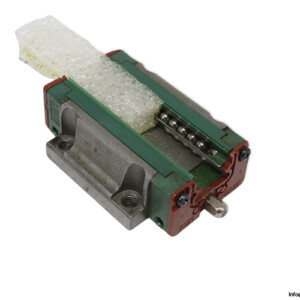

Hiwin LGW35CA Linear Guideway Block
HIWIN LGW 35 CA LINEAR GUIDEWAY BLOCK
This heavy-duty linear guideway block from Hiwin is engineered for high-load and high-precision linear motion applications. Featuring a flange-type design and top-mount configuration, it ensures strong stability and efficient load transfer in demanding environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: LGW 35 CA
| Size | 35 mm |
| Block Height | 40 mm |
| System Height | 48 mm |
| Block Width (W) | 100 mm |
| Block Length (L) | 118.4 mm |
| Thread Size | M8x25 |
| Distance Between Holes | 82 mm, 62 mm |
| Rail Width | 34 mm |
| Rail Height | 25 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Above |
| Basic Dynamic Load Rating | 4180 kgf |
| Basic Static Load Rating | 6740 kgf |
