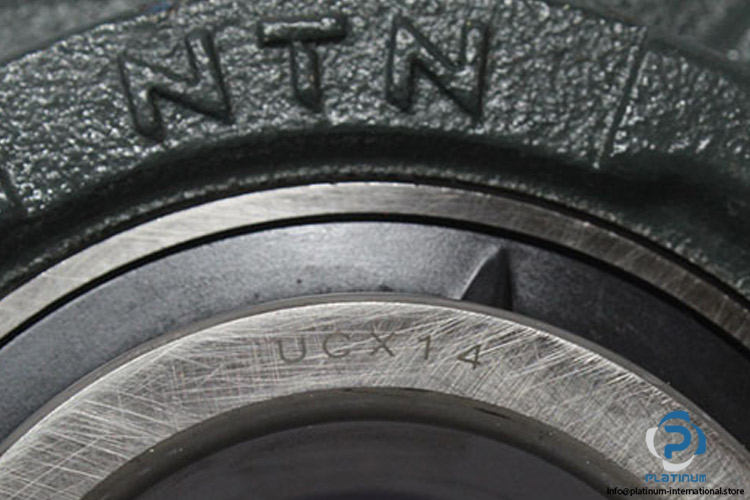

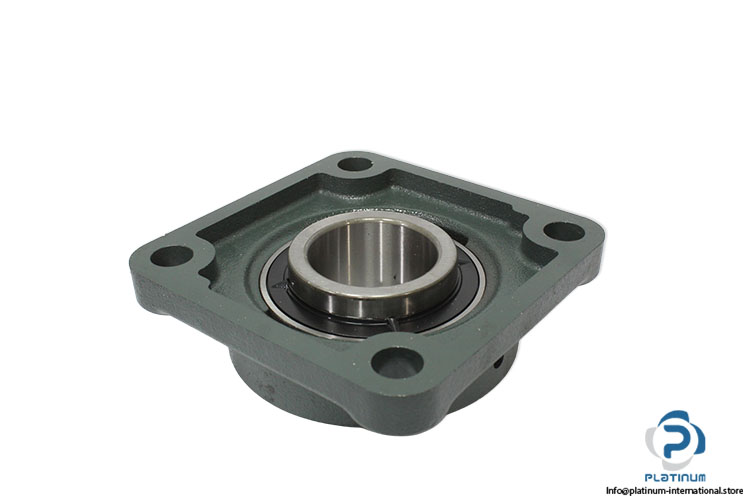

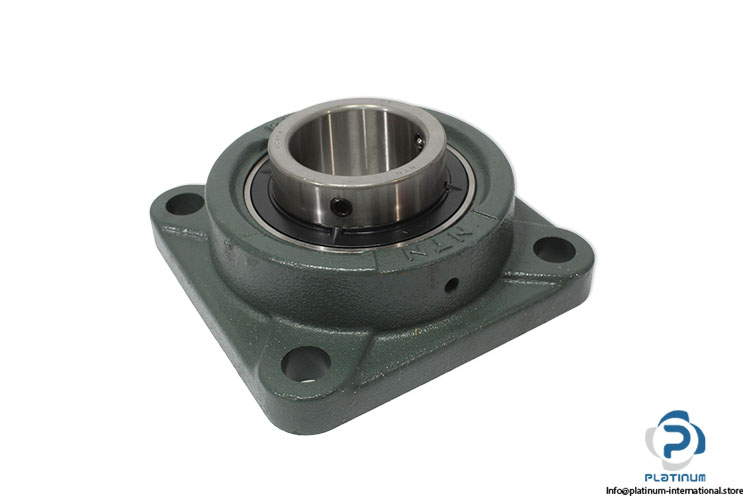

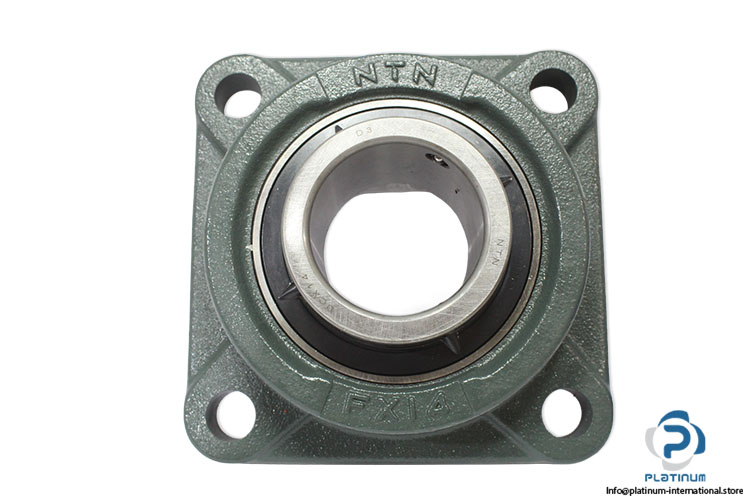

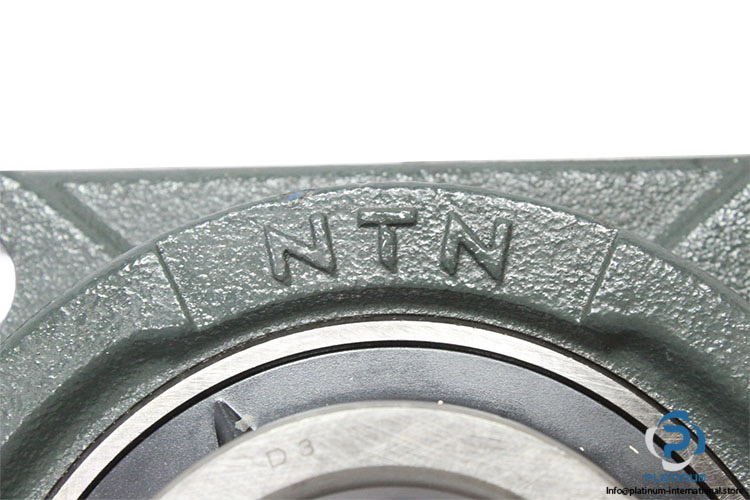

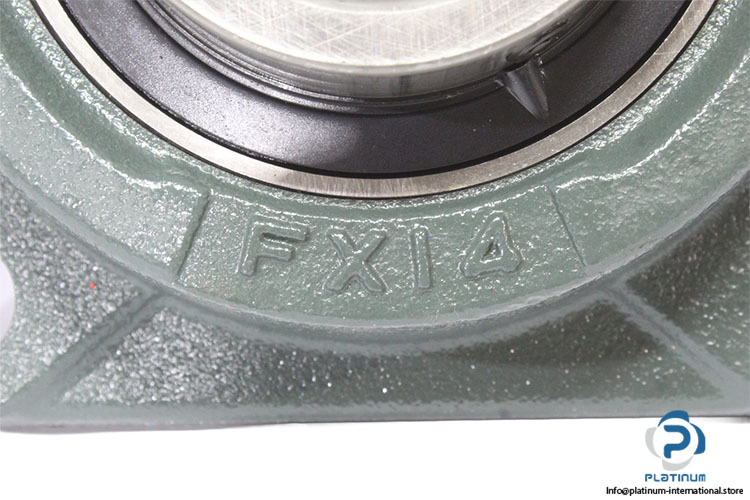

NTN UCFX14D1 4-BOLT Square Flanged Unit
新
有现货1 单元现货供应
4-Bolt Square Flanged Unit NTN 4-bolt square flanged unit with a relubricatable ball bearing insert, cast iron housing, set screw locking device, and contact seals for reliable industrial shaft support.
海量库存
全球运输
专家支持
质量保证
| Bearing No. | UCX14 |
| Housing No. | FX14 |
| Bore Diameter | 70 mm |
| Overall Length | 197.0 mm |
| Width | 60 mm |
| Insert IR width B | 77,8 mm |
| Bearing Type | Ball Bearing |
| Locking Device | Set Screw |
| Seal Type | Contact |
| Seal Material | Nitrile Rubber |
| Housing Material | Cast Iron |
| Dynamic Load Rating | 66000 N |
| Static Load Rating | 49500 N |
| Operating Temperature Range | -40 to 120 ºC |
| Lubrication | Relubricatable |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099754 |
| Weight | 7,30 |
