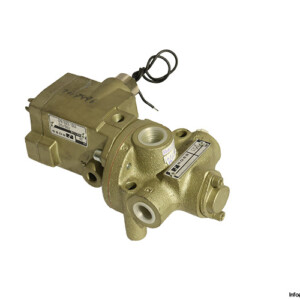

Ross D2173B3002 Single Solenoid Valve
新
有现货6 单位现货供应
Single Solenoid Pilot Inline Valve
The Ross D2173B3002 Series 21 is a 3/2-way normally closed valve with 24 V DC coil, G1/2 and G3/8 pneumatic connections, designed for filtered air and operating pressures from 2 to 10 bar.2124v3/2ClosedcoilControlD2173B3002dcIndustrialInlineNormallyPilotPneumaticPneumaticsRossSeriessolenoidValveWay
海量库存
全球运输
专家支持
质量保证
Ross D2173B3002 Single Solenoid Pilot Inline Valve - Series 21
The Ross D2173B3002 from Series 21 is a high-performance single solenoid pilot inline valve engineered for precise control in pneumatic applications. Designed for use with filtered air, it features a 3/2-way normally closed function and is electrically actuated. With robust construction, a 24 V DC coil, and multiple pneumatic connection options, it provides reliable operation across a wide range of industrial environments.
Manufacturer: Ross
Type: Single Solenoid Pilot Inline Valve
Model: D2173B3002
Series: 21
| Flow Media | Filtered air |
| Type of Actuation | Electrically |
| Operating Pressure | 2 to 10 bar |
| Function | 3/2-Way, Normally Closed |
| Coil Voltage | 24 V DC |
| Power | 14 W |
| Pneumatic Connection | G1/2, G3/8 |
| Ambient Temperature | -40 to 50°C |
| Media Temperature | -40 to 80°C |
