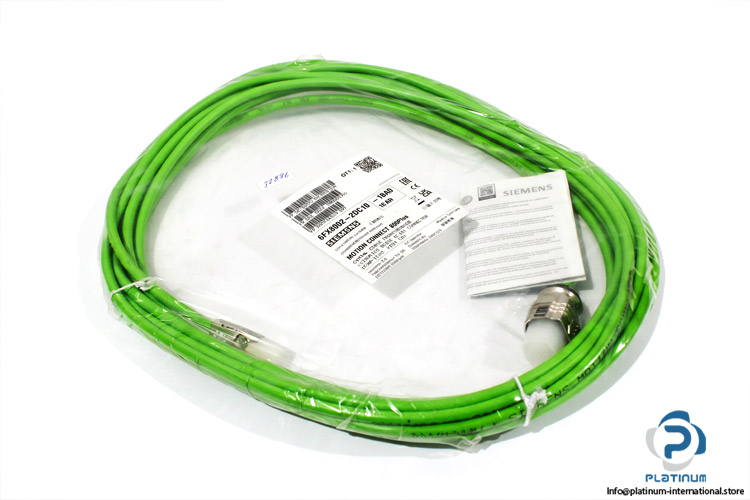

SIEMENS 6FX8002-2DC10-1BA0 Signal Cable
新
有现货2 单位现货供应
Signal Cable SIEMENS DRIVE-CLiQ signal cable with RJ45 connectivity and 10 m cable length, designed for motor encoder communication in SINAMICS S120/S220 and SINUMERIK 828D systems.
海量库存
全球运输
专家支持
质量保证

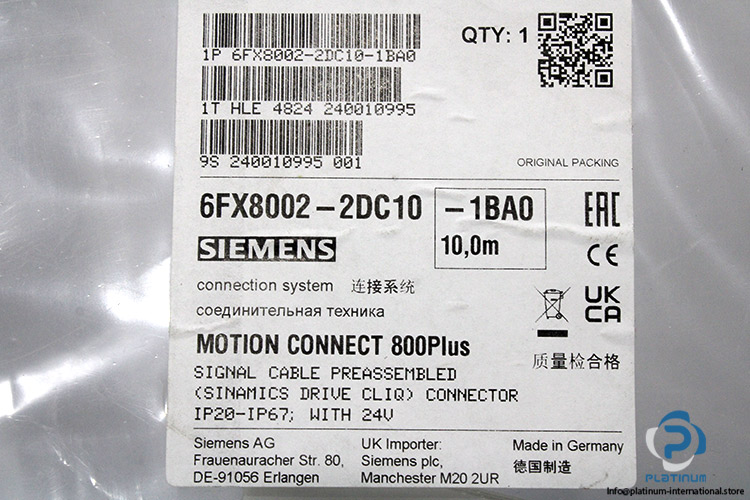

| MNR | 6FX8002-2DC10-1BA0 |
| Code | 9S 240010995 001 |
| Ref No | 1T HLE 4824 240010995 |
| Cable length | 10 M |

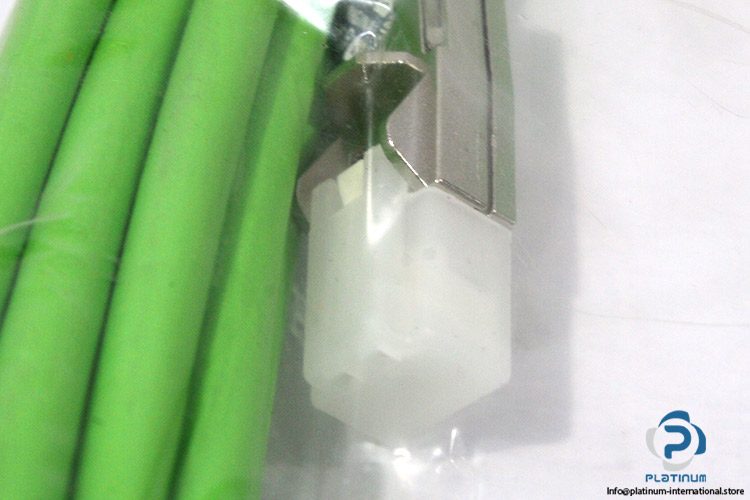

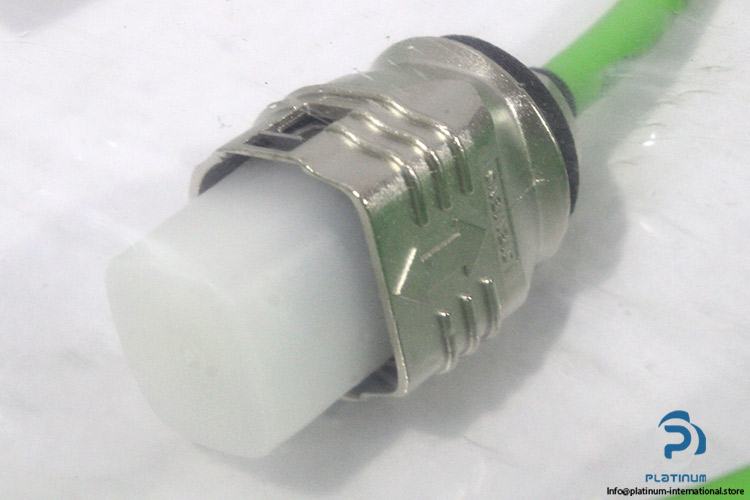

| connector 1 | DRIVE-CLiQ |
| connector 2 | plug RJ45 |
| Design of the sensor | Motor encoder DRIVE-CLiQ |
| Test voltage, rms Signal conductors | 500 V |
| Rated voltage U0/U in accordance with EN 50395 Power conductors | 30 V |
| Type of connection cable engine side | RJ45 DRIVE-CLiQ |
| Type of connection cable converter side | DRIVE-CLiQ RJ45 |
| Maximum cable outer diameter | 7.1 mm |
| Smallest bending radius (fixed installation) | 35 mm |
| Smallest bending radius (flexible installation) | 75 mm |
| Number of bends, max. | 10,000,000 |
| Maximum traversing velocity | 300 m/min |
| Acceleration horizontal, max | 50 m/s² |
| Tensile stress, max. Fixed installation | 50 N/mm² |
| Tensile stress, max. Flexible installation | 20 N/mm² |
| Torsional stress Absolute | 30°/m |
| Operation with permanently installed cable | -50 ... 80 °C |
| Standard for behavior in fire | flame resistance: EN 60332-1-1 to 1-3 |
| Oil resistance | EN 60811-2-1 |
| Used For | SINAMICS S120/S220 Motor Module - SINUMERIK 828D |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099499 |
| Weight | 0,80 |
