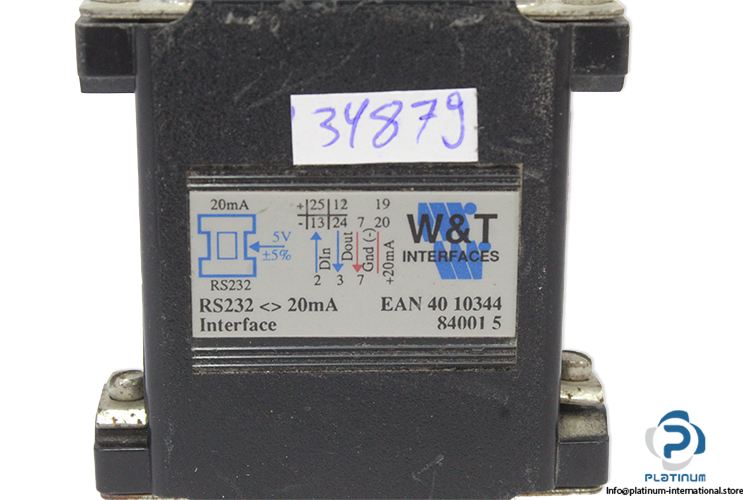

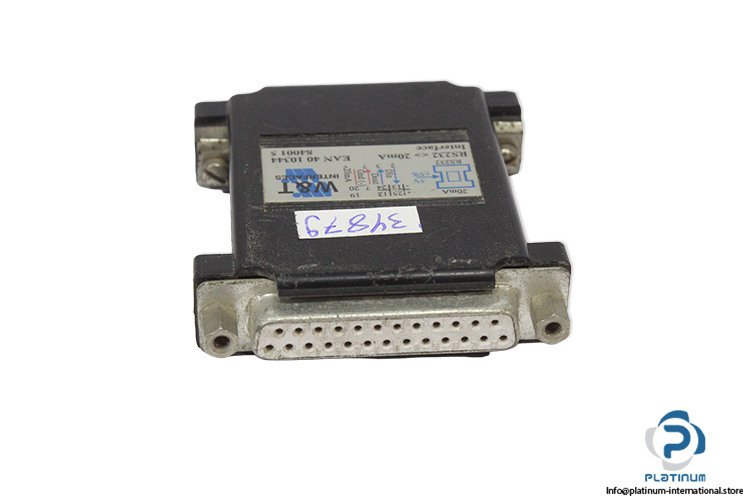

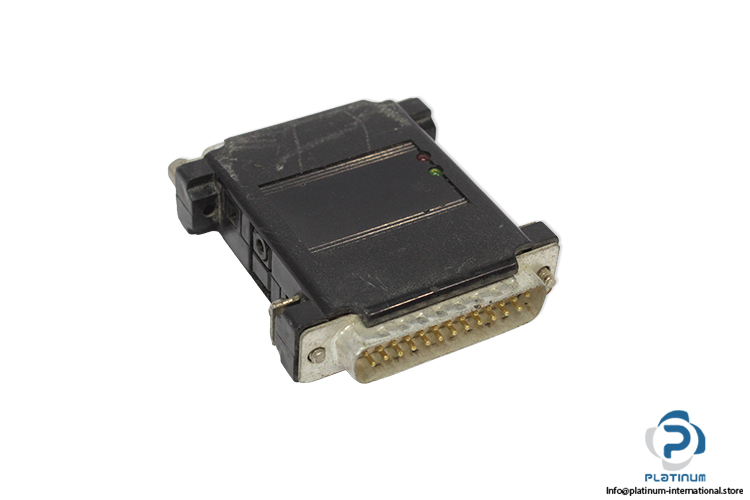

W&T 84001 5 INTERFACE MODULE
W&T RS232 20mA 840015 Serial Interface Converter
The W&T (Wiesemann & Theis) RS232 20mA 840015 Interface Module is a compact industrial communication converter designed to interface RS232 devices with a 20 mA current loop system. It ensures reliable serial data transmission and flexible configuration for industrial automation, control systems, and legacy communication networks.
Manufacturer: W&T (Wiesemann & Theis)
Type: Serial Interface Converter / Interface Module
Model: RS232 20mA 840015
EAN No.: 40 10344
Communication:
Signals:
| Operating Modes | Active and passive mode for both loops can be set separately |
| Power Supply | 5 V, 40 mA (typ.) |
| Function | RS232 to 20 mA Current Loop Interface |
| Supply Voltage | 5 V |
| Loop Current | 20 mA |
| Baud Rate | 0 to 19,200 baud |
| RS232 Adapter | 25-pin male SUB-D connector, DCE pinout |
| 20 mA Adapter | 25-pin female SUB-D connector |
| TxD | Transmit Data |
| RxD | Receive Data |
| GND | Signal Ground |
| Housing | Small plastic |
| Dimensions | 63 x 54 x 16 mm |
| Connector Type | DB25 Male / Female D-Sub connectors |
| Termination | Connectable termination network |
| Enclosure Rating | IP00 |
| Recommendation | Ideal solution for integrating legacy 20 mA current loop devices with modern RS232 communication systems in industrial environments. |
