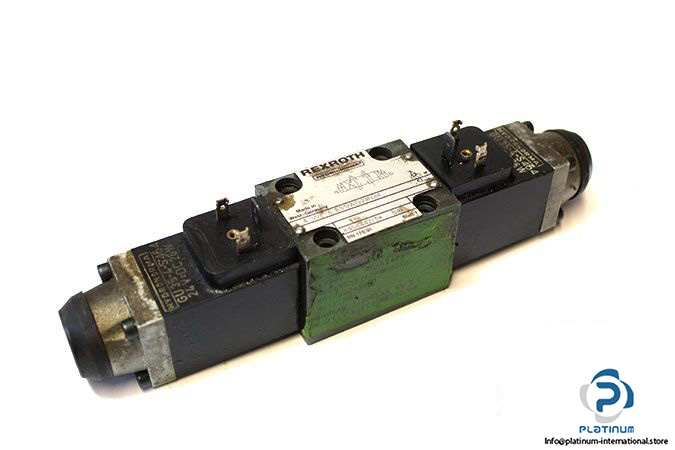

Rexroth 4 WE 6 E51/AG24NZ4 Directional Control Valve
Used
In stock2 unitsReady to ship
144,44$
The Directional Control Valve (Model: 4WE6E51/AG24NZ4) by REXROTH is electrically actuated with a maximum pressure of 350 bar and a maximum flow rate of 70 l/min.
New
In stock 144,44$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Directional Control Valve – Model: 4WE6E51/AG24NZ4
The Directional Control Valve (Model: 4WE6E51/AG24NZ4) by REXROTH is designed for efficient directional control in hydraulic systems. It features electrically operated actuation and is ideal for high-pressure environments with a maximum operating pressure of 350 bar at Ports A, B, and P, and 210 bar at Port T.
Technical Specifications:
- Model: 4WE6E51/AG24NZ4
- Size: 6
- Type of Actuation: Electrically
- Ambient Temperature Range: “20 / . +60 °C
- Maximum Operating Pressure at Ports A, B, P: 350 bar
- Maximum Operating Pressure at Port T: 210 bar
- Maximum Flow Rate: 70 l/min
- Hydraulic Fluid Temperature Range: “20 / . +80 °C
- Viscosity Range: 2.8 / 500 mm2/s
- Connection: Sup-plate
- Voltage: 24 V DC
