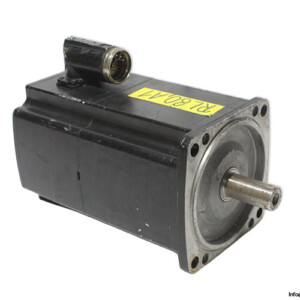

Baumuller Dscg 100 S65U30-5 UL Servomotor
Used
In stock1 unitReady to ship
2 499,99$
BAUMULLER SERVOMOTOR BAUMULLER DSCG 100 S65U30-5 UL is a precision industrial servomotor rated at 8 kW with 25.5 Nm stall torque, 3000 rpm speed, IP65 protection, S1 duty, VPWM VT inverter duty and 24V brake, designed for advanced motion control and automation systems.
ACAutomationBaumullerBrakeCNCControlDriveDutyHighIndustrialInverterMotionmotorMotorsPrecisionServoServomotorTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 21029671 |
| Rated Voltage | 360 V |
| Stall Current | 16.3 A |
| Rated Speed | 3000 min-1 |
| Rated Power | 8 kW |
| Stall Torque | 25.5 Nm |
| Insulation Class | F |
| Protection Class | ip65 |
| frequency | 250 hz |
| Duty | S1 |
| Standard | EN 60034 |
| Brake Voltage | 24 V |
| Inverter duty | VPWM VT |
| Connection | Multi-pin circular connector |
| Stock key | jo-004 |
| Condition | Used |
| SKU | 1096921 |
| Weight | 31,1 |
