Gemu 514 65D6034 51 2R0119 Angle Seat Globe Valve
Neu
Auf Lager1 EinheitVersandbereit
1 099,99$
Angle Seat Globe Valve
A stainless steel pneumatic angle seat globe valve with integrated position control and travel sensing, designed for precise flow regulation in industrial process applications.65AngleAutomationControlDNElectroflowGemuGlobeIndustrialPneumaticPositionerProcessSeatstainlessSteelValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

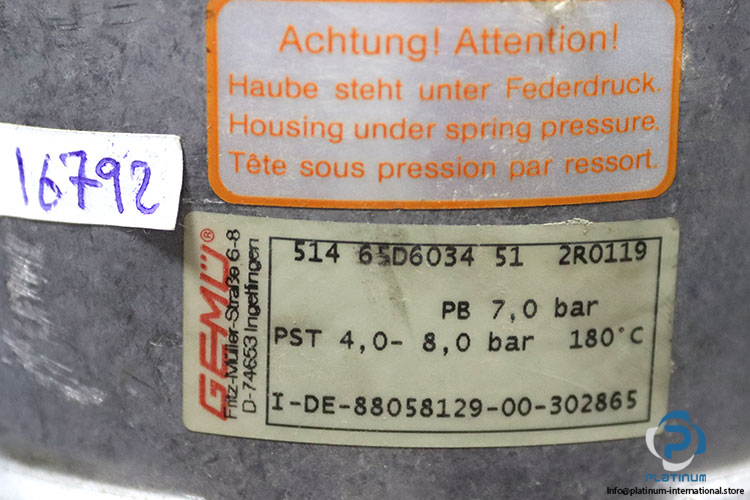

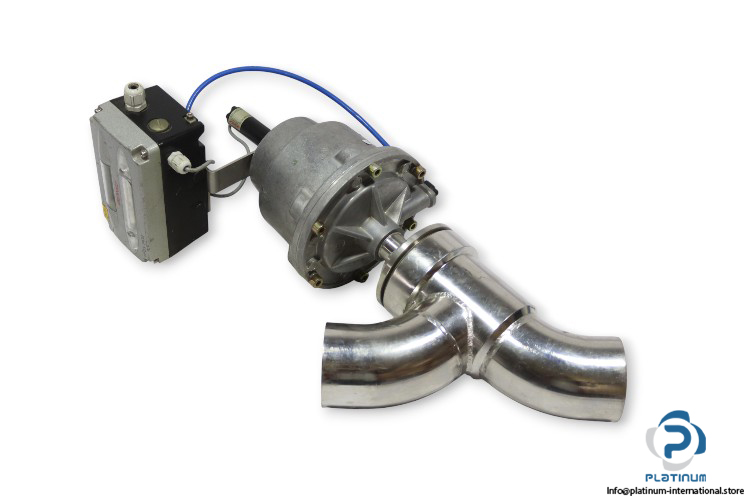

GEMU 514 Angle Seat Globe Valve
A high-performance pneumatic angle seat globe valve designed for precise flow control in industrial process systems. This valve is suitable for demanding applications requiring stainless steel construction, reliable sealing, and stable pneumatic actuation. Manufacturer: GEMU
Type: Angle Seat Globe Valve
Model: 514 65D6034 51 2R0119
MRN: I-DE-88058129-00-302865
Attached Accessories
| Nominal Size DN | 65 mm |
| Body Configuration | 2/2-way body |
| Connection Type | Spigot ISO 1127 / EN 10357 Series C |
| Connection | 72 mm |
| Valve Body Material | 1.4435 Stainless Steel, Investment Casting |
| Seat Seal | PTFE |
| Control Function | Normally Closed |
| Actuator | Pneumatic |
| Actuator Version | Size 2 |
| Control Pressure | 4 to 8 bar |
| Maximum Temperature | 180 C |

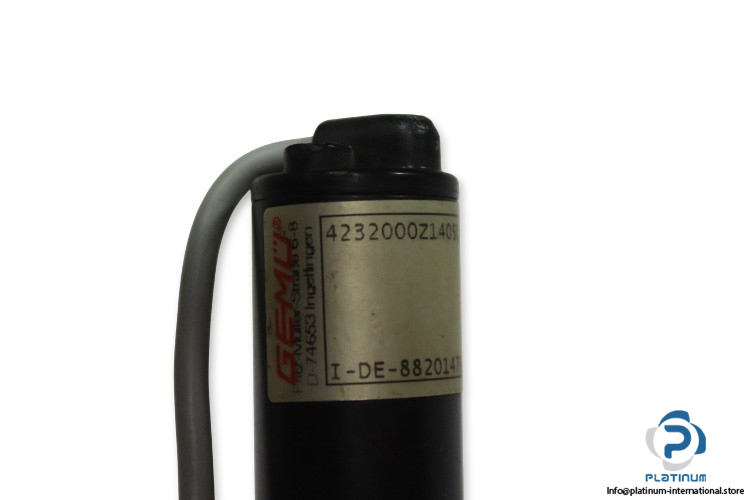

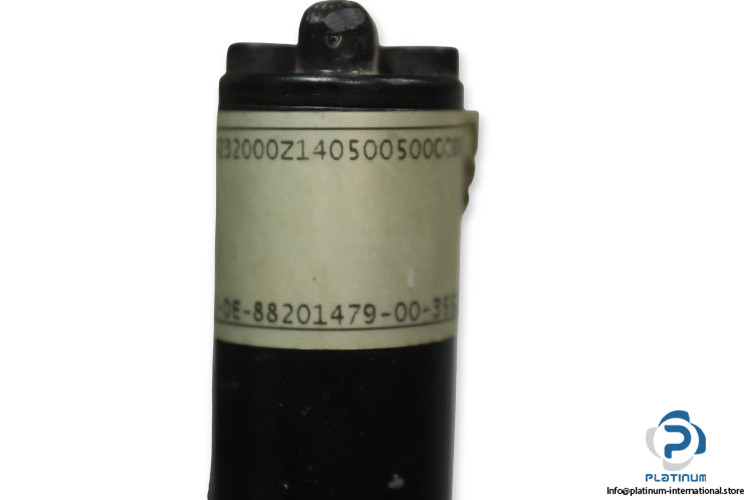

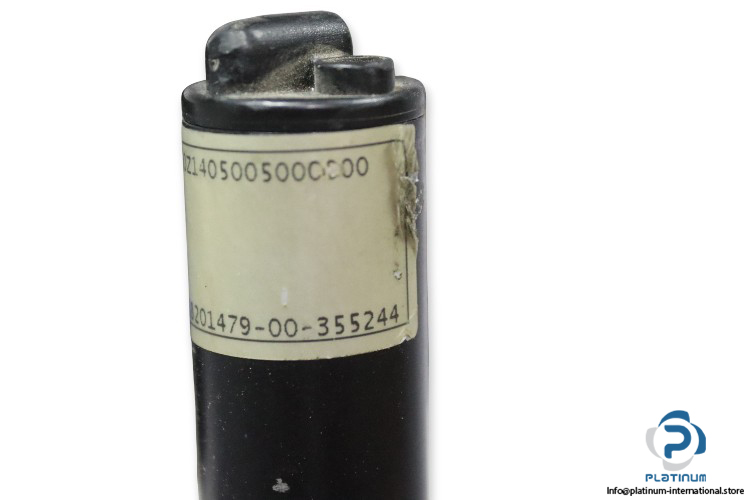

| Travel Sensor | GEMU 4232000Z1405005000D00 |
| MNR | I-DE-88201479-00-355244 |
| Fieldbus | Without |
| Housing Material | Anodized Aluminium |
| Travel Length | Potentiometer, 50 mm |

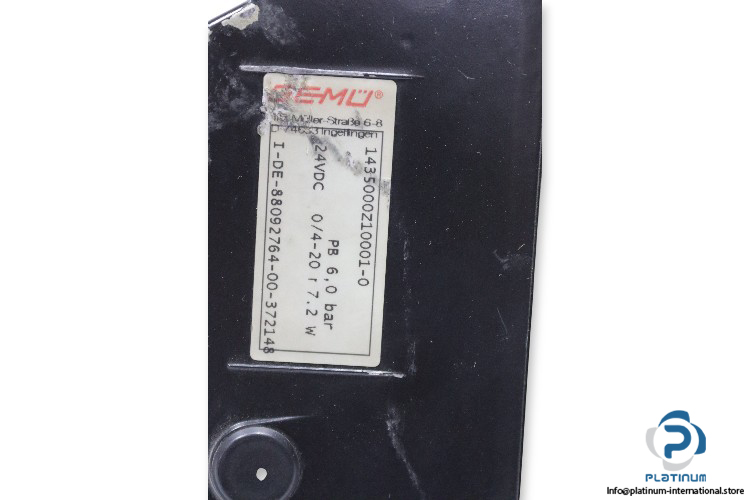

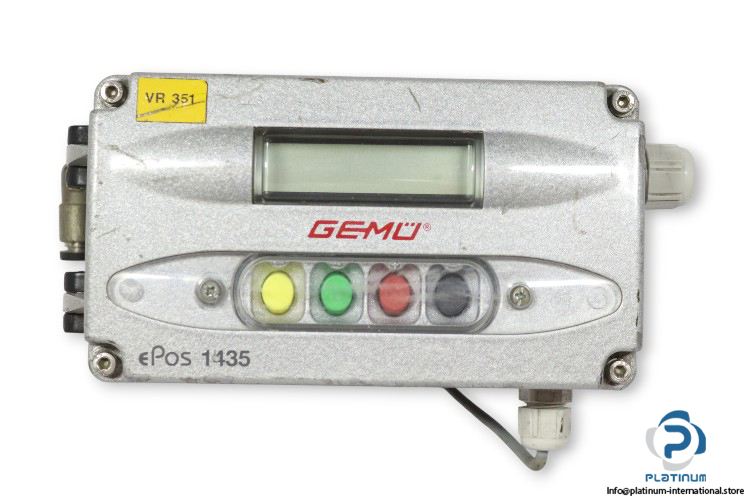

| Position Controller | GEMU 1435000Z10001-0 ePos |
| Series | 1435 ePos |
| Code | I-DE-88092764-00-372148 |
| Accessory | Accessory |
| Fieldbus | Without |
| Action | Single Acting |
| Explosion-Proof Class | Without Explosion-Proof Rating |
| Flow Rate | 50 l/min |
| Supply Voltage | 24 V DC |
| Power Consumption | 7.2 W |
| Control Pressure PB | 6.0 bar |
| Operating Pressure Range | 0.4 to 8.0 bar |
