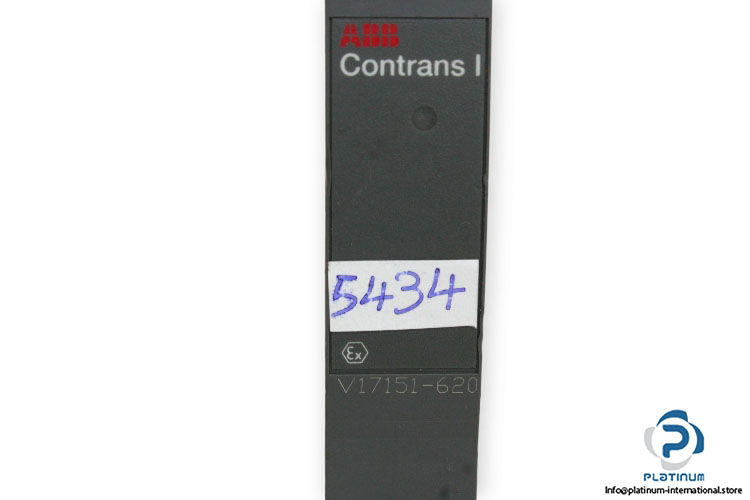

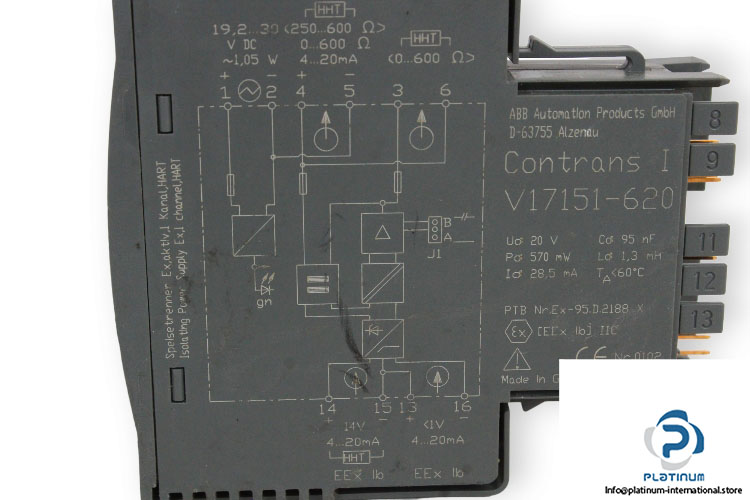

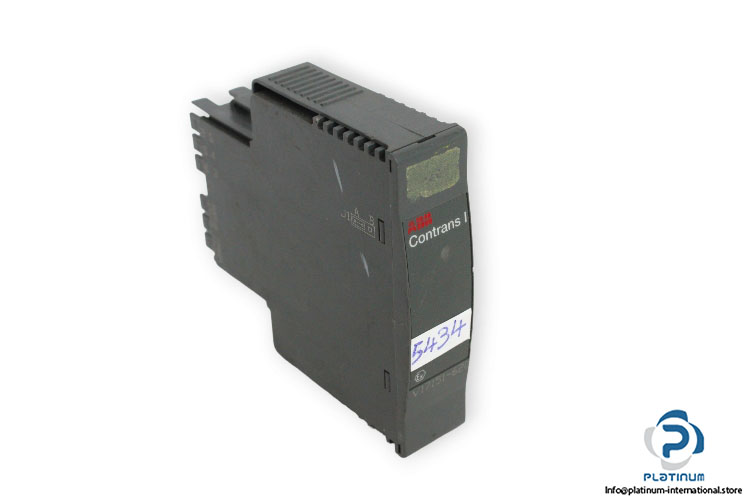

ABB V17151-620 Isolating Power Supply
Manufacture: Abb
Type: Isolating Power Supply
Model: V17151-620
Power supply: 19,2 … 30 VDC
Power consumption: 1.05 W
Input current: 4 … 20 mA
Short circuit current: 23 … 28 mA
No. of channel: 1 channel
Transformation ratio: 1:1
Bandwidth frequency: 500 Hz…10 kHz
Communication: Point to point (FSK -HART)
Max. short-circuit current Io: 28.5 mA
Load ohmic: 0…600 Ω
Max. voltage Uo: 20 V
Max. power Po: 570 mW
Permitted external inductance La: 1.3 mH
Permitted external capacitance Ca: 95 Nf
Output current: 4…20 mA
Ambient temperature: -20 … 60°C
