Alco PS3-W6S Pressure Switch
中古
在庫あり1 ユニット即納可能
129,99$
Pressure Switch
Alco PS3-W6S stainless steel pressure switch rated up to 45 bar with 120/240 VAC supply, wide temperature range from ˆ’40 to +150 °C, and G 1/8 connection for industrial pressure control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証

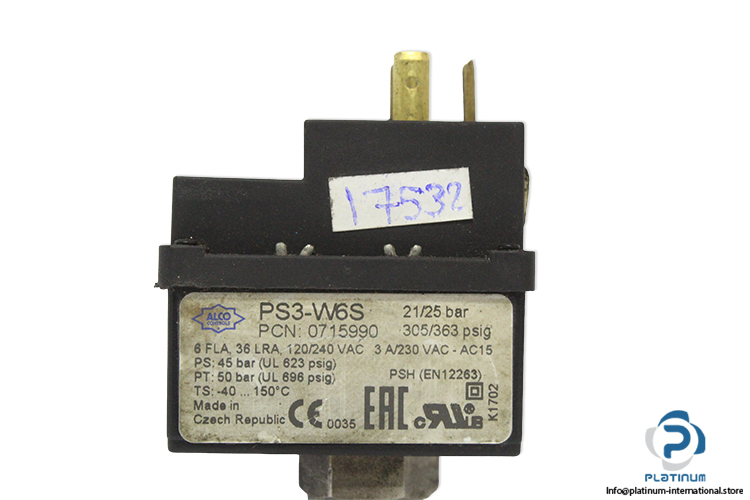

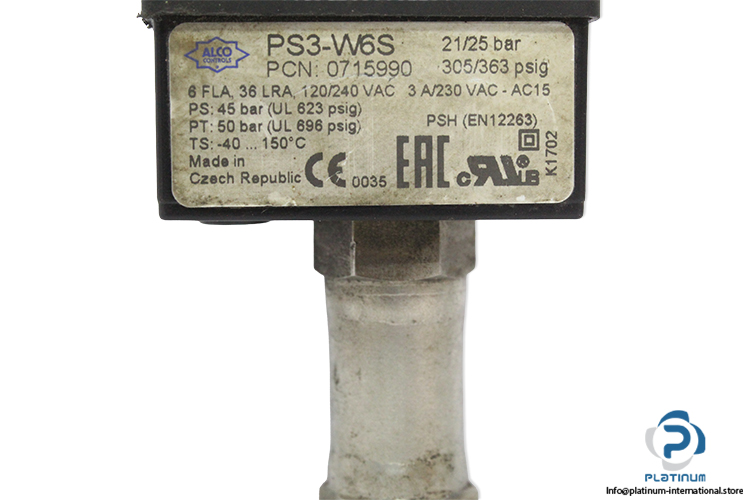

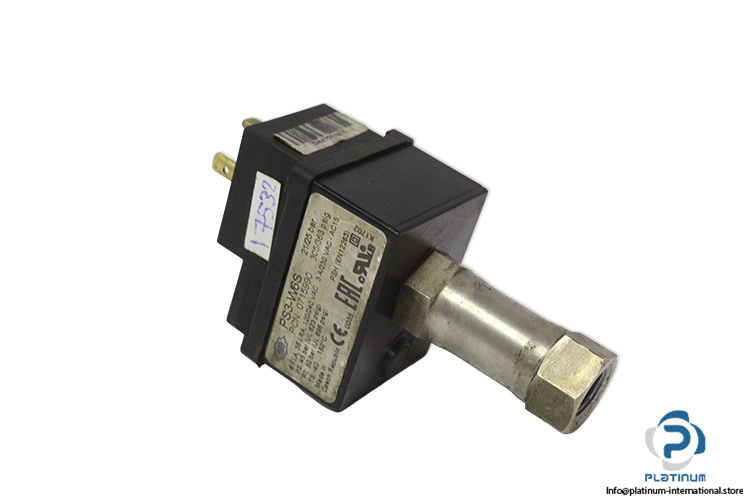

Alco PS3-W6S Pressure Switch
The Alco PS3-W6S is a high-performance pressure switch designed for precise pressure monitoring and control in industrial applications. Manufactured with a stainless steel body, it offers high pressure resistance, wide temperature tolerance, and reliable electrical performance under demanding operating conditions.
Manufacturer: Alco
Type: Pressure Switch
Model: PS3-W6S
Part No.: 0715990
Code: K1702
Series: PS3
| Material | Stainless Steel |
| Full Load Amps (FLA) | 6 A |
| Locked Rotor Amps (LRA) | 36 A |
| Voltage | 120 / 240 VAC |
| Current | 3 A @ 230 VAC |
| Max. Pressure (PS) | 45 Bar |
| Proof Test Pressure (PT) | 50 Bar |
| Leakage Test Pressure | 48 Bar |
| Temperature Range (TS) | ˆ’40 to +150 °C |
| Inductive Control Loads (AC-15) | 3 |
| Connection | G 1/8 |
| Standards | CE 0035, EAC, UL, PSH (EN 12263), UL Recognized (UR / cURus) |
