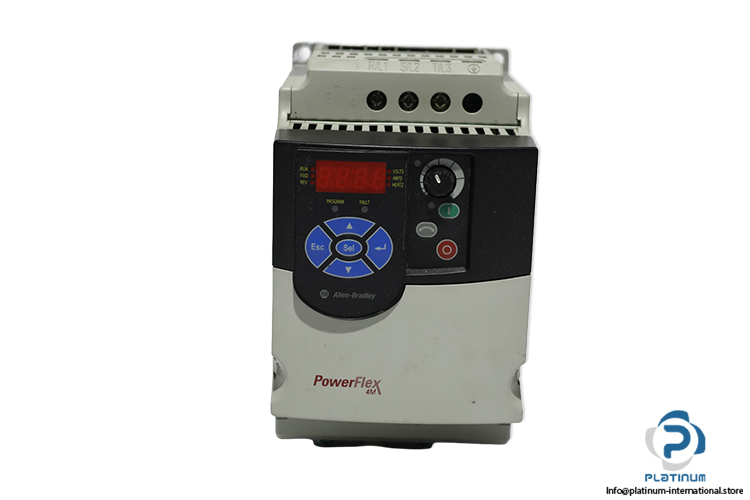

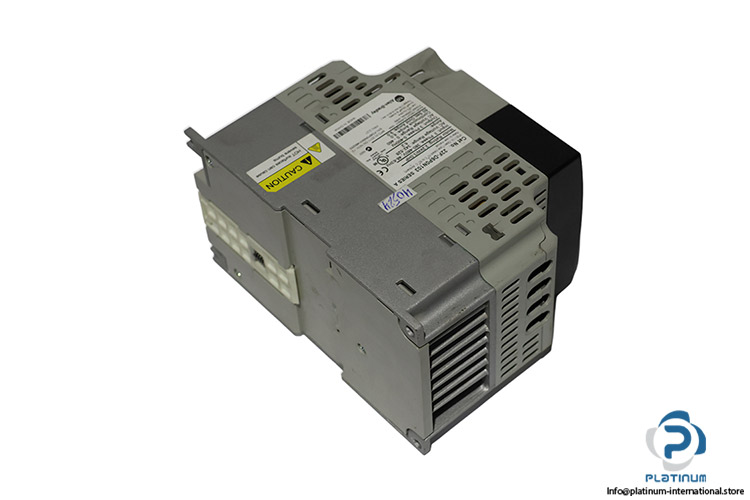

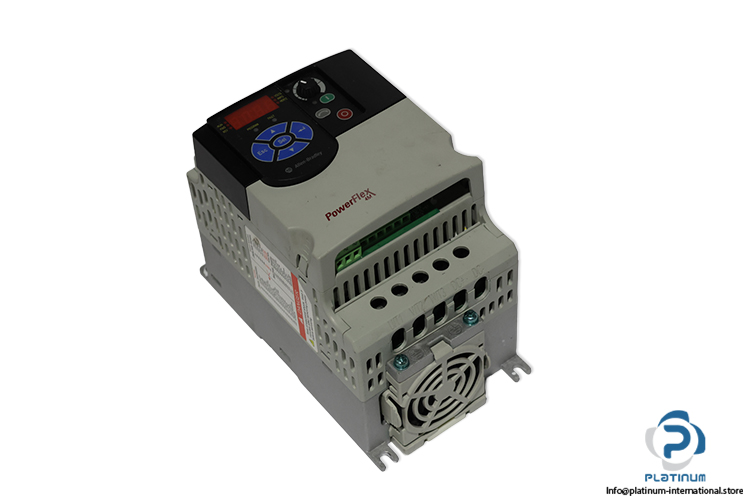

Allen-Bradley 22F-D6PON103 Ser.a 3-PHASE Variable Frequency Drive VFD
新着
在庫あり1 ユニット即納可能
Variable Frequency Drive The Allen-Bradley 22F-D6PON103 PowerFlex 4M is a 2.2 kW / 3 HP VFD designed for reliable motor speed and frequency control in industrial automation.
大量在庫
グローバル配送
専門的なサポート
品質保証

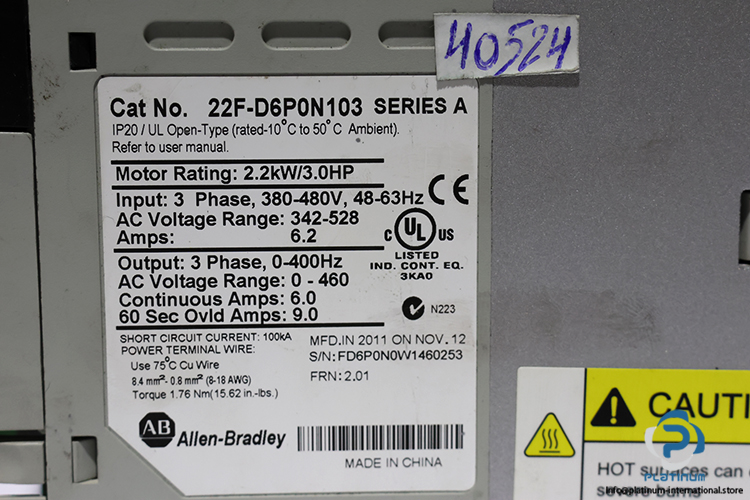

| Serial No | FD6P0NOW1460253 |
| Series | 22F |
| Range | PowerFlex4M |
| Input Supply Voltage | 1/3-Phase 380 … 480 V AC |
| Input Current | 6.2 A |
| Input Frequency | 48 … 63 Hz |
| Output Rated Voltage | 3-Phase 0 … 460 V AC |
| Output Current | 6.0 / 9.0 A |
| Output Frequency | 0 … 400 Hz |
| Output Cont. Power | 2.2 kW / 3.0 HP |
| Short Circuit Current | 100 kA |
| Keypad & Display | Integral Fixed Digital Keypad With Led Display And Potentiometer |
| Communication | Integral RS-485 / DSI (Modbus RTU), with Optional Adapter Support |
| Brake Drive / IGBT | Omit Brake Igbt (No Internal Dynamic Brake Transistor) |
| Protection Class | IP20 |
| Operational Temperature | -10 … 50 °C |
| Dimensions | 174 x 100 x 136 mm |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1104168 |
| Weight | 1,47 |
