Atlas 9032011951 Digital Motion Controller
在庫あり1 ユニット即納可能
Atlas Copco デジタルモーションコントローラー DMC 50720-AC、570 V DC入力電圧、40°Cで7 A連続電流、3 kW出力。産業用途での正確なモーター制御向けに設計されています。
1-9000203450720-AC5707aAtlasContinuousControlControllerCopcoCurrentdcDigitalDmcFrequencyIndustrialIPkHzkWLossMotionmotorOutputPeakPowerRangerpmSpeedSwitchingV
大量在庫
グローバル配送
専門的なサポート
品質保証

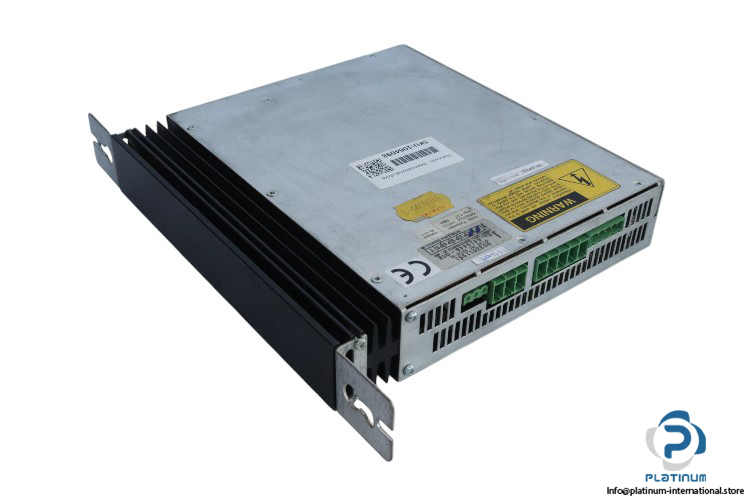

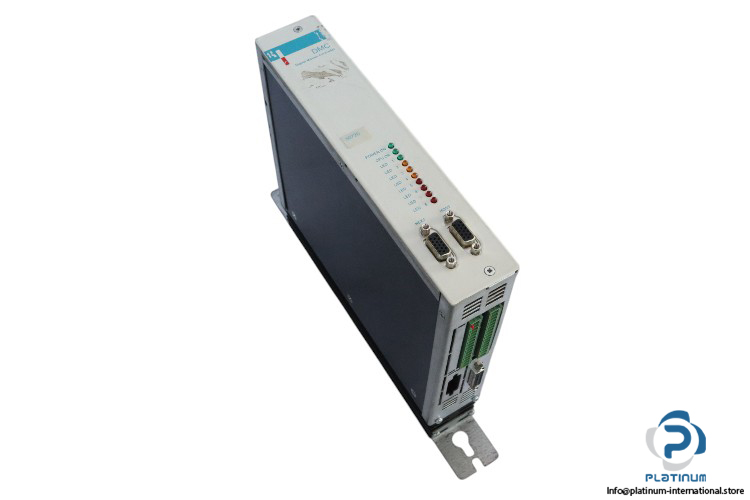

Atlas Copco Digital Motion Controller (DMC) DMC 50720-AC
Atlas Copco Digital Motion Controller (DMC) DMC 50720-AC is an advanced motion control solution designed for high-performance applications. With robust features and reliable performance, it provides optimal control for motors in demanding environments. Below are the key technical specifications:
- Manufacturer: Atlas Copco
- Type: Digital Motion Controller (DMC)
- Model: DMC 50720-AC

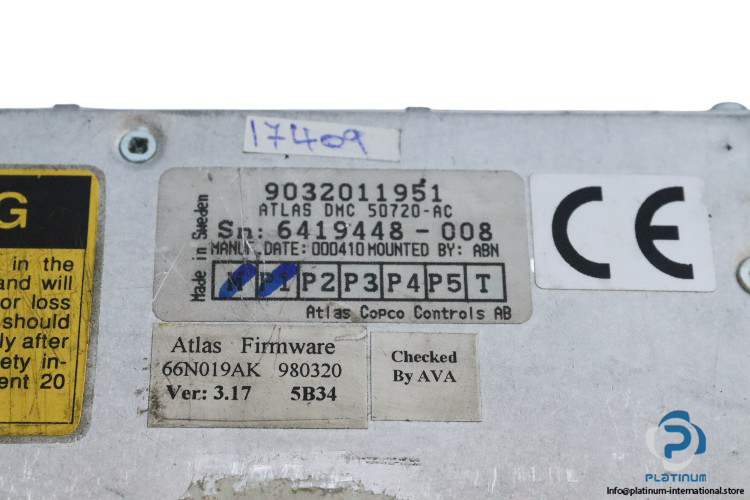

- Part No: 9032 0119 51
Technical Data:
- Input Voltage: 570 V DC
- Shunt Regulation On: 670 to 700 V DC
- Shut Down DC Bus Voltage: 700 to 725 V DC
- Continuous Current (A DC): 7 A at 40°C
- Continuous Current (Arms): 4.5 A at 40°C
- Peak Current: 20 A
- Continuous Output Power: 3 kW at 40°C
- Power Loss: 60 W
- Min Motor Inductance: 8 mH
- Speed Range: 1 to 9000 RPM
- Switching Frequency: 4 kHz
- Ambient Temperature: 0 to 60°C
- Protection Degree: IP 20
- Dimensions: 230 x 45 x 220 mm
