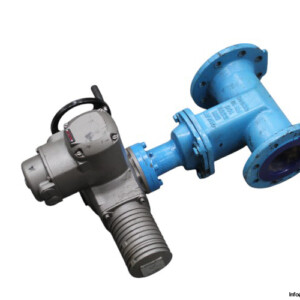

Auma SG 07 Multi-Turn Actuator
新着
在庫あり1 ユニット即納可能
製造元: Auma タイプ: マルチターンアクチュエーター 型番: SG07 部品番号: 84/102 034
大量在庫
グローバル配送
専門的なサポート
品質保証
Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SG07
Part No.: 84/102 034
Type and Size Actuator: SA 07
Flange Size: FA10
Torque Range in Direction Close [Nm]: 150-300
Torque Range in Direction Open [Nm]: 105-300
Lubricant Type: EP
Rated Speed [rpm]: 32
Enclosure Protection [IP]: 67
Attachments: Auma MD 56.1-4/45 AC Motor
Manufacturer: Auma
Type: MD 56.1-4/45
Model: AC Motor
Mains Voltage [V]: 220/380
Rated Current [A]: 0.26/0.15
Mains Frequency [Hz]: 50
Rated Power [kW]: 0.03
Power Factor: 0.41
Type of Duty: Short-Time Duty S2-10 min
Speed [rpm]: 1440
Insulation Class: F
Enclosure Protection [IP]: 67
