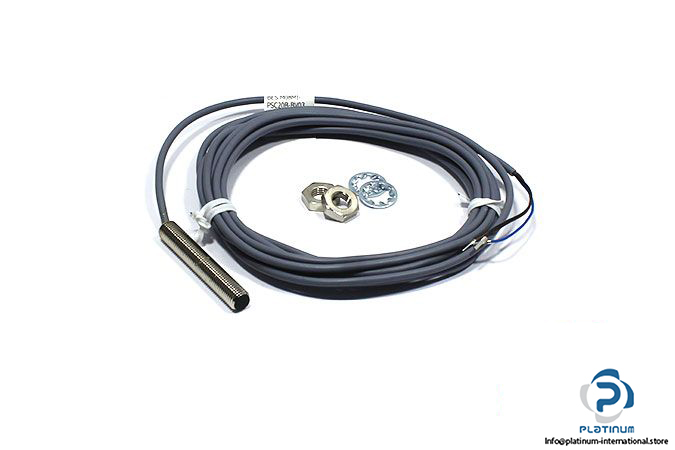

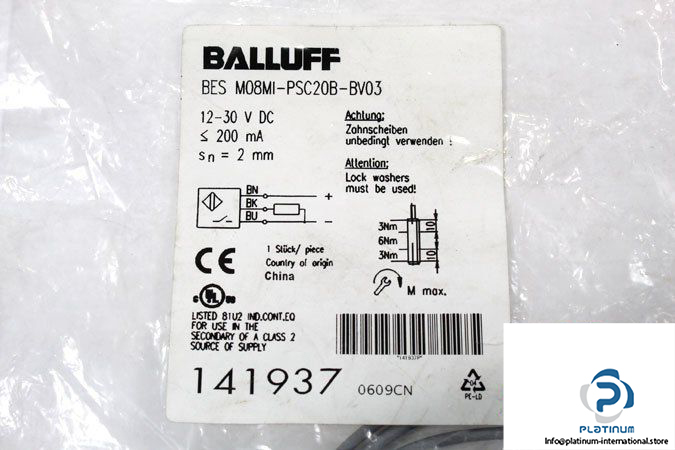

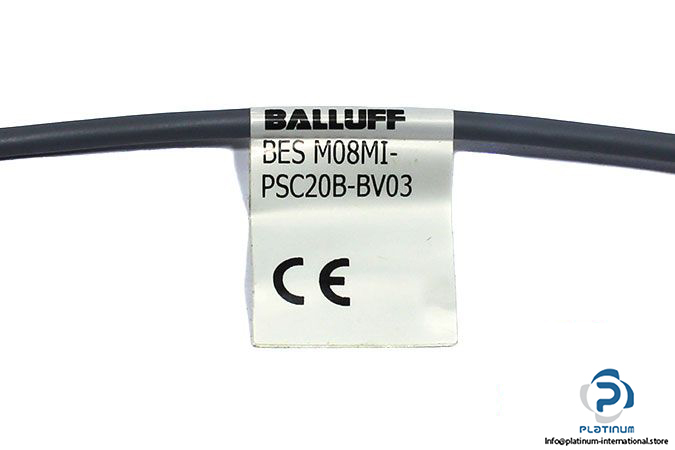

Balluff BES M08MI-PSC20B-BV03 Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order Code: BES003L

MRN: BES M08MI-PSC20B-BV03

Sensing Range: 2 mm

Assured Operating Distance: 1.6 mm

Operating Voltage: 10 … 30 V DC

Switching Frequency: 5000 Hz

Electrical Design: PNP

Switching Output: Normally Open

Connector Type: PVC Cable, 3 m

Protection Class: II

Enclosure Rating: IP68

Ambient Operating Temperature: -25 … 70°C

Diameter, Housing Length: 8, 50 mm

Housing Material: Brass, Nickel Free Coated

Sensing Face Material: PBT

Mounting: Flush Mountable

Weight: 0.06 kg
