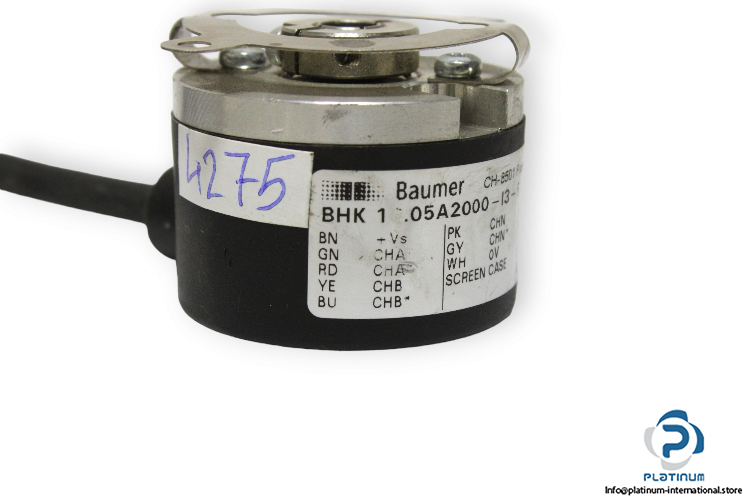

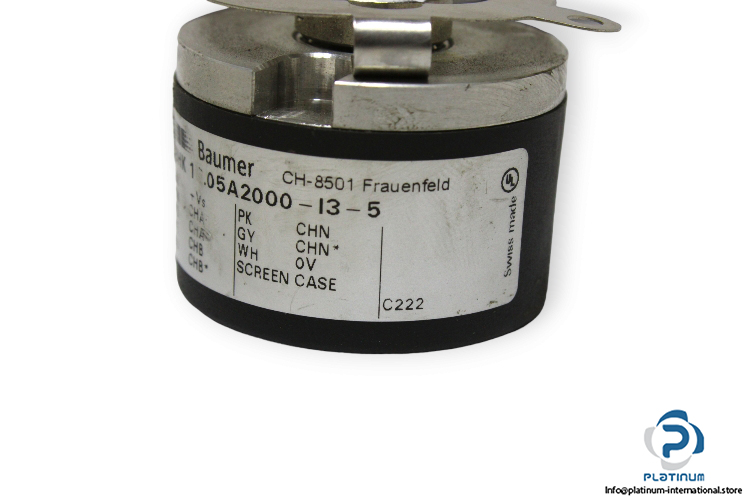

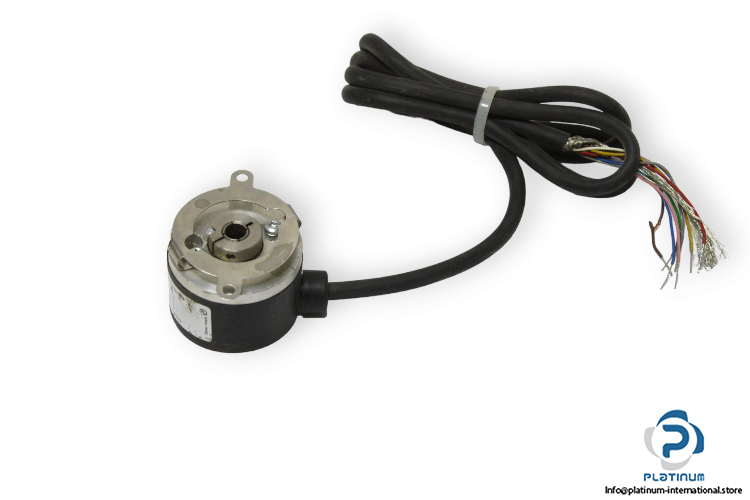

Baumer BHK 16.05A2000-I3-5 Incremental Encoder
在庫あり1 ユニット即納可能
166,66$
INCREMENTAL ENCODER Baumer BHK 16.05A2000-I3-5 は、2000 PPR の解像度、ホローシャフト設計、TTL 出力、5 VDC 動作を備えたコンパクトで高速のインクリメンタルエンコーダであり、精密なフィードバックアプリケーションに最適です。
16.05A2000-I3-520005BaumerBHKEncoderFeedbackHigh-SpeedhollowHousingIncrementalIndustrialMotionOutputPolyamidePPRPrecisionshaftTTLVDC
大量在庫
グローバル配送
専門的なサポート
品質保証
BAUMER BHK 16.05A2000-I3-5 INCREMENTAL ENCODER
The Baumer BHK 16.05A2000-I3-5 is a high-precision incremental encoder designed for accurate motion feedback in automation and control systems. Engineered with a compact hollow shaft and advanced TTL output, this encoder delivers dependable performance in high-speed and high-resolution environments.
Manufacturer: Baumer
Type: Incremental Encoder
Model: BHK 16.05A2000-I3-5
| Shaft Type | Hollow Shaft |
| Shaft Size | 6 mm |
| Resolution | 2000 Pulses Per Revolution |
| Operation Speed Max. | 12000 Rpm |
| Operating Torque | 0.0021 Nm |
| Voltage | 5 VDC |
| Output Circuit | TTL |
| Cable Length | 1 m |
| Outer Diameter (Flange) | 40 mm |
| Operating Temperature | -20 / 85 °C |
| Electrical Connection | 8 Wire Cable |
| Direction | Radial |
| Protection | IP42 |
| Housing Material | Polyamide Black |
| Flange Material | Aluminium |
