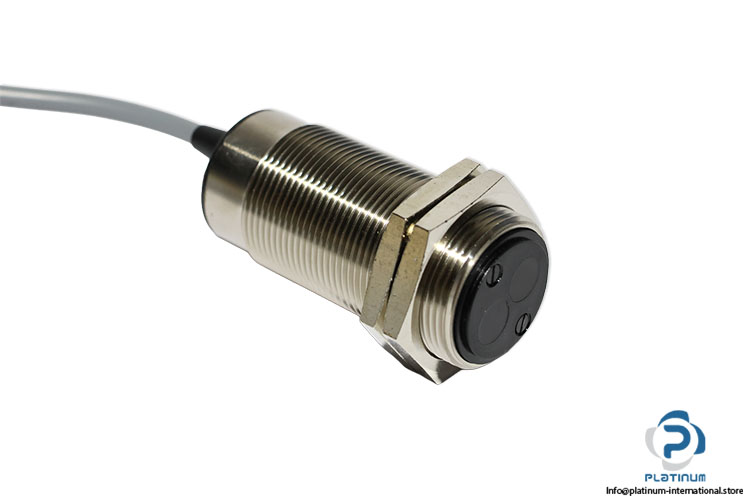

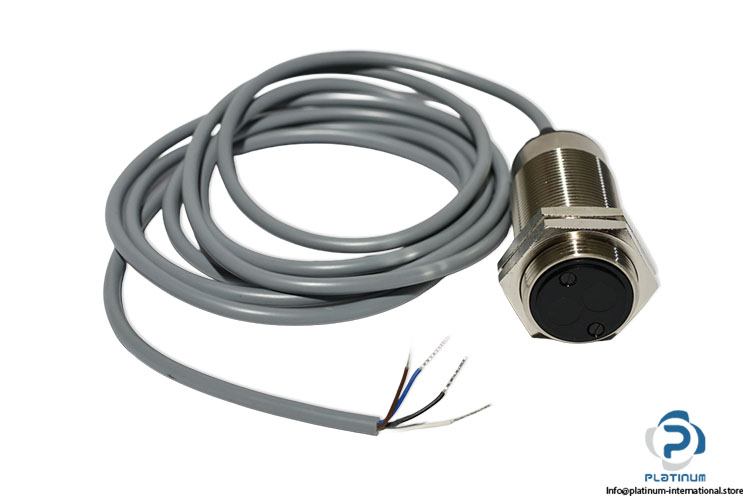

Baumer Fzam 30P5004 Fiber Optic Sensor
新着
在庫あり2 単位即納可能
Fiber Optic Sensor BAUMER FZAM 30P5004 fiber optic sensor with PNP output, infrared light source, adjustable sensitivity, and IP65 protection for industrial automation applications.
中古
在庫あり 199,99$
この製品は中古でもご利用いただけます
中古バージョンを見る →
大量在庫
グローバル配送
専門的なサポート
品質保証
| Art No | 10215057 |
| Light source | Pulsed infrared diode |

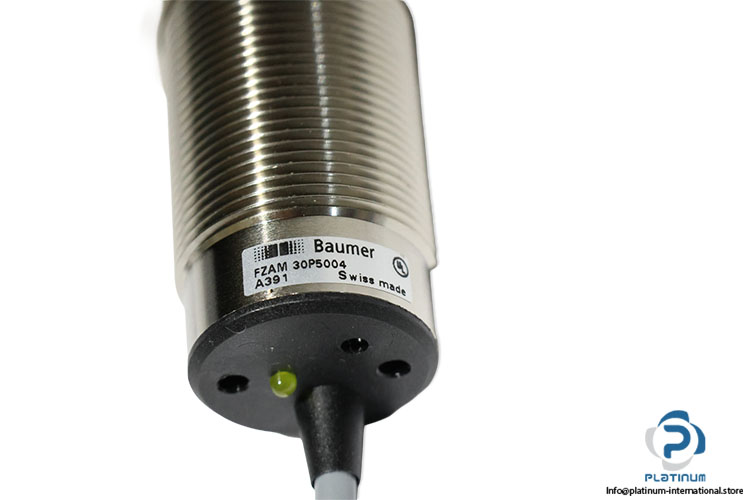

| Light indicator | LED yellow |
| Alignment / soiled lens indicator | LED, flashing |
| Adjustment | Potentiometer, 20 turn |
| Wave length | 880 nm |
| Response time / release time | < 2.5 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Current consumption typ. | 33 mA |
| Voltage drop Vd | <2.5 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 30 mm |
| Height / length | 66 mm |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |

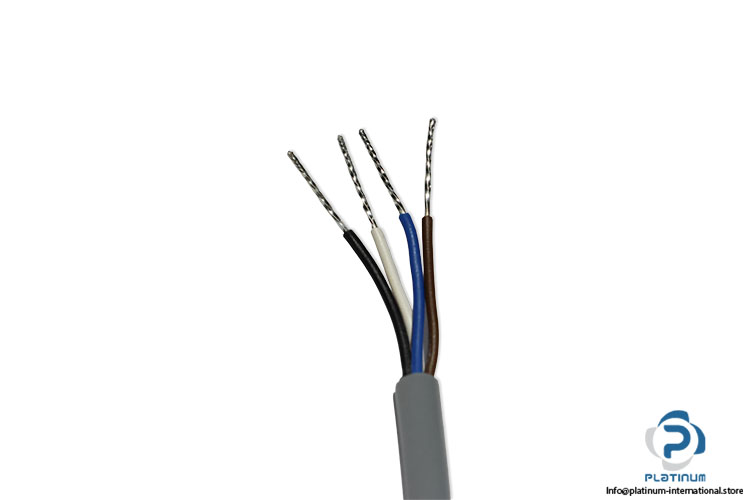

| Connection types | Cable 4 wire, 2 m |
| Operating temperature | 0 … +65 °C |
| Protection class | IP 65 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100945 |
| Weight | 0,21 |
