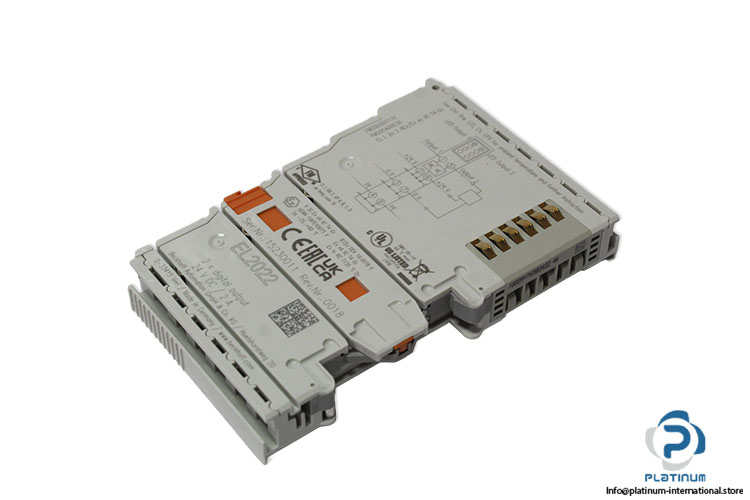

Beckhoff EL2022 Digital Output Terminal
新着
ご依頼に応じて対応可能
Digital output EtherCAT Terminal The Beckhoff EL2022 is a 24 V DC EtherCAT terminal with 4-wire connection, designed for reliable signal acquisition in industrial automation systems.
大量在庫
グローバル配送
専門的なサポート
品質保証

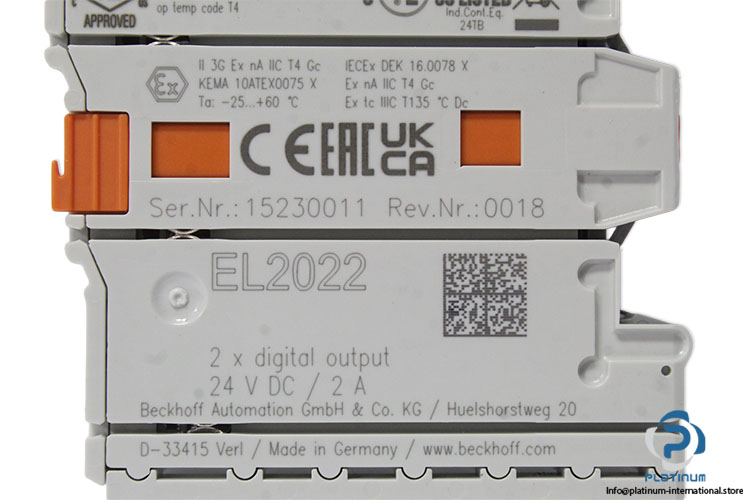

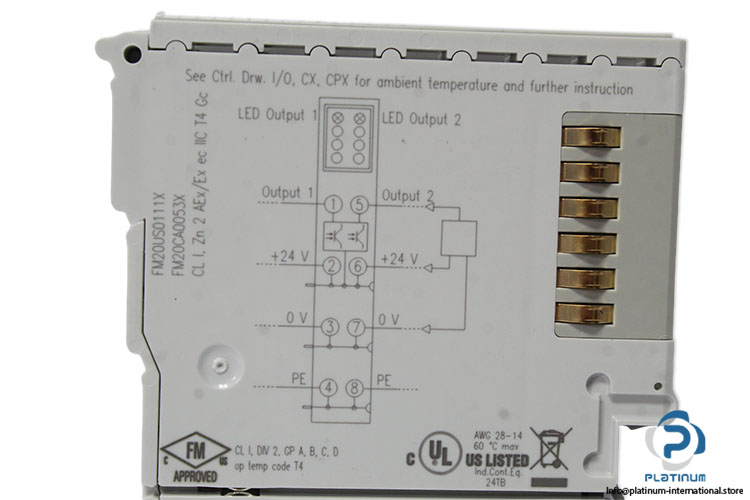

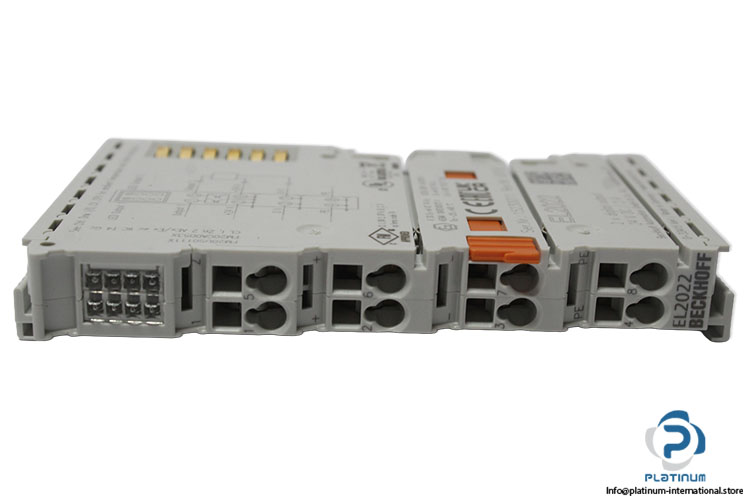

| SN | 15230011 |
| Rev.Nr . | 0018 |
| Connection technology | 4-wire |
| Number of outputs | 1 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 2.0 A (short-circuit proof) per channel |
| Short-circuit current | typ. 70 A |
| Switching-off energy | 1.7 J/channel |
| Switching times | typ. TON: 40 µs, typ. TOFF: 200 µs |
| Current consumption E-bus | typ. 100 mA |
| Current consumption power contacts | typ. 9 mA + load |
| Bit width in the process image | 2 outputs |
| Electrical isolation | 500 V (E-bus/field potential) |
| Operating temperature | -25…+60°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring level | for all ESxxxx terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Ex marking ATEX | II 3G Ex ec IIC T4 Gc/IECEx:Ex ec IIC T4 Gc/cFMus:Class I, Division 2, Groups A, B, C, D/Class I, Zone 2, Ex ec IIC T4 Gc |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Stock key | CH001 |
| Condition | New |
| SKU | 1100869 |
| Weight | 0,06 |
