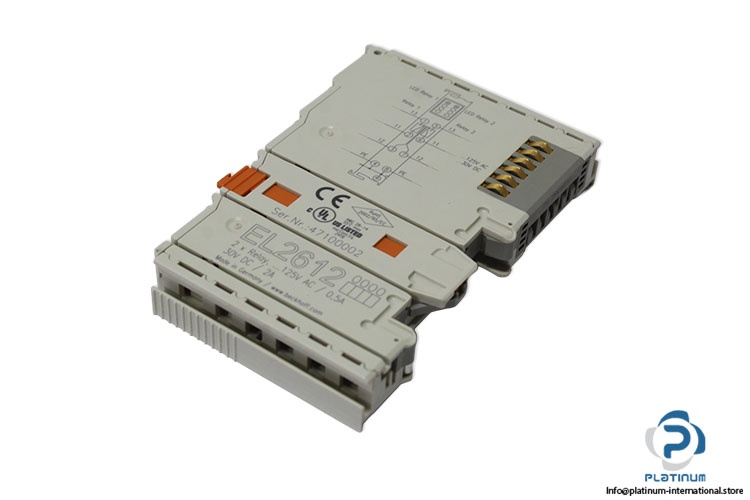

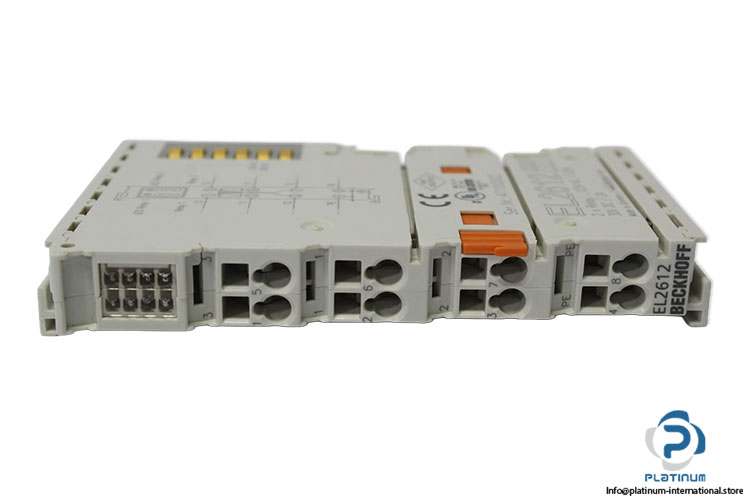

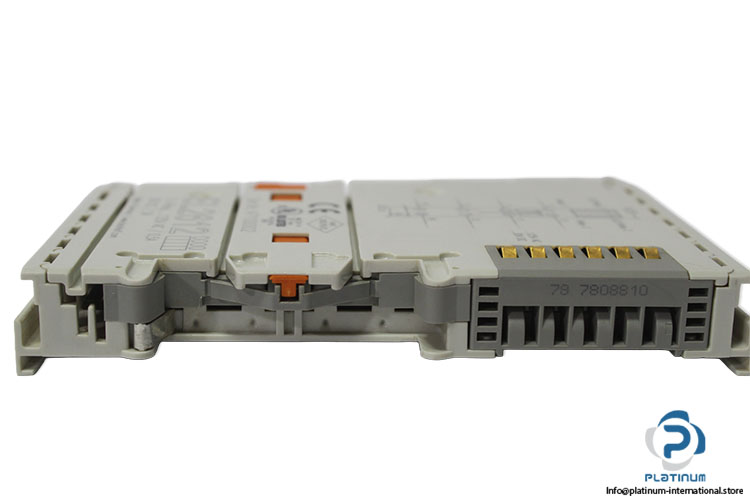

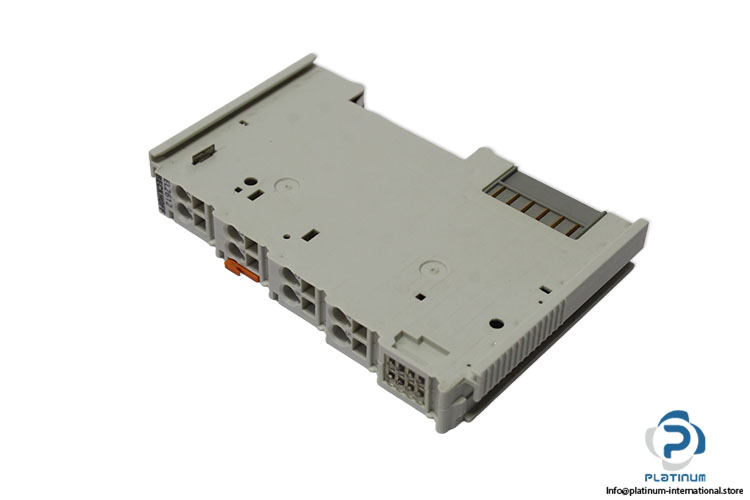

Beckhoff EL2612 2-CHANNEL Relay Output
新着
ご依頼に応じて対応可能
EtherCAT Relay Output Terminal The Beckhoff EL2612 is a 2-channel EtherCAT relay output terminal with change-over contacts, designed for reliable AC and DC load switching in industrial automation systems.
大量在庫
グローバル配送
専門的なサポート
品質保証

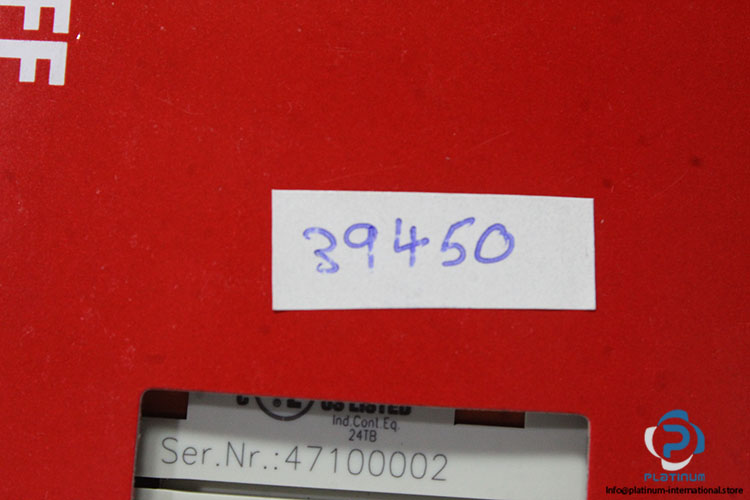

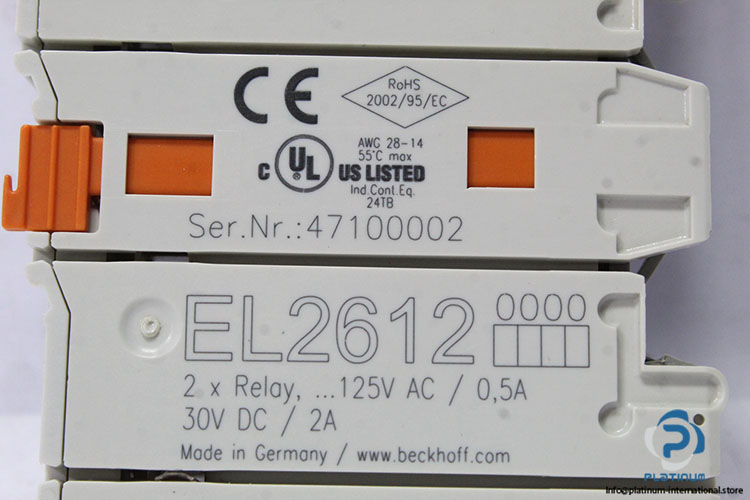

| Ser.Nr . | 47100002 |
| Connection technology | relay output |

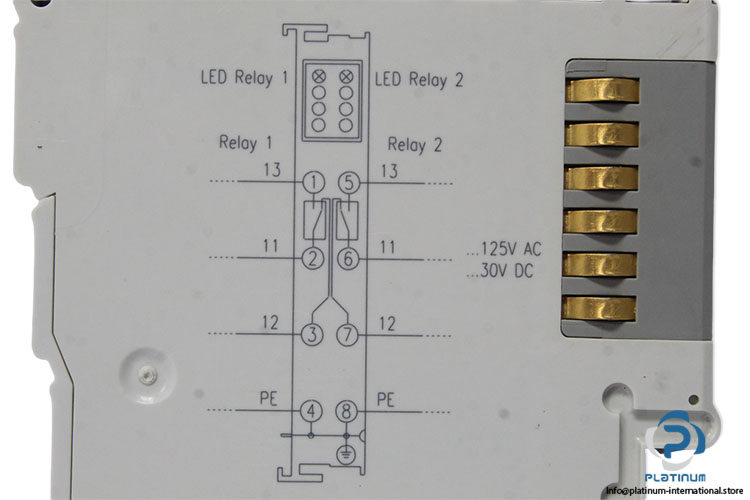

| Number of outputs | 2 x change-over |
| Nominal voltage | 125 V AC/30 V DC |
| Load type | ohmic |
| Ohmic switching current | 0.5 A AC/2 A DC per channel |
| Minimum permitted load | 10 µA at 10 mV DC with intact contact coating |
| Current consumption E-bus | typ. 150 mA |
| Bit width in the process image | 2 outputs |
| Operating cycles mech. (min.) | 1 x 108 |
| Operating cycles electr. (min.) | 2 x 105 (1 A/30 V DC) |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | signal relay |
| Ambient Temperature Range During Operation | -25°C ... +60°C |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring level | for all ESxxxx terminals |
| Approvals/markings | CE, UL |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Current load power contacts Imax | 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Stock key | CH001 |
| Condition | New |
| SKU | 1100871 |
| Weight | 0,06 |
