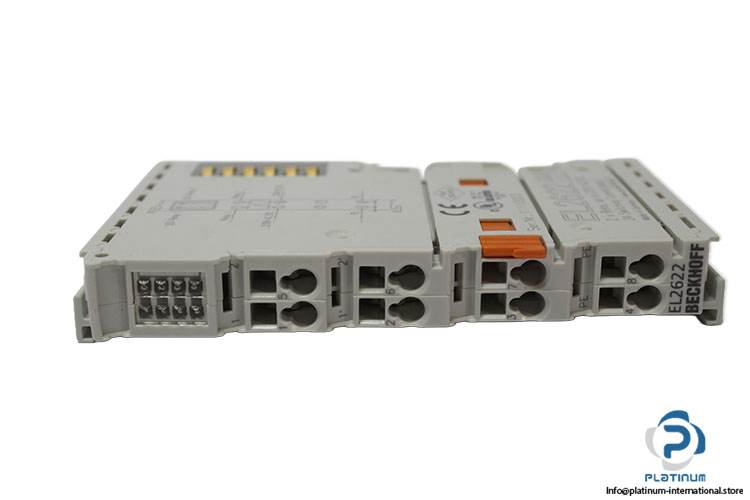

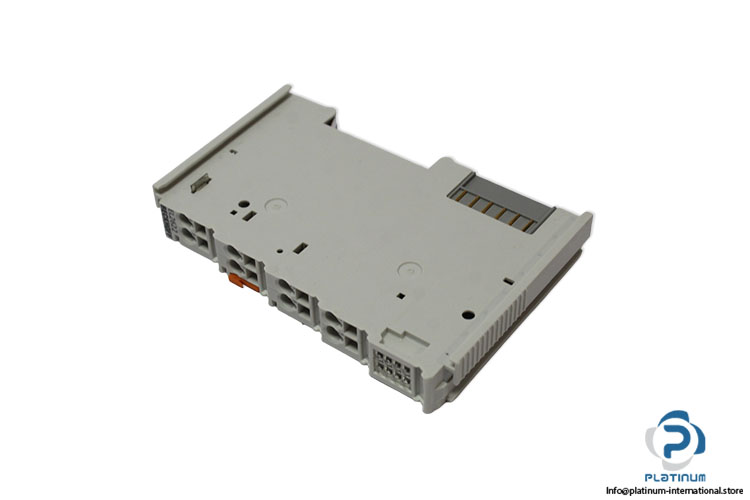

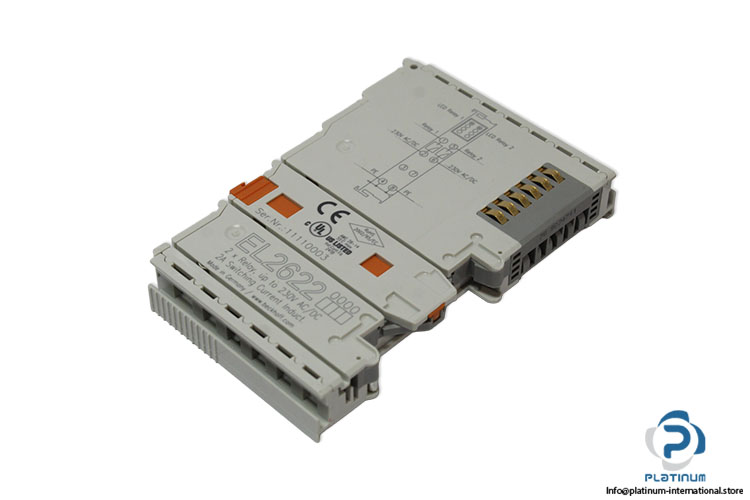

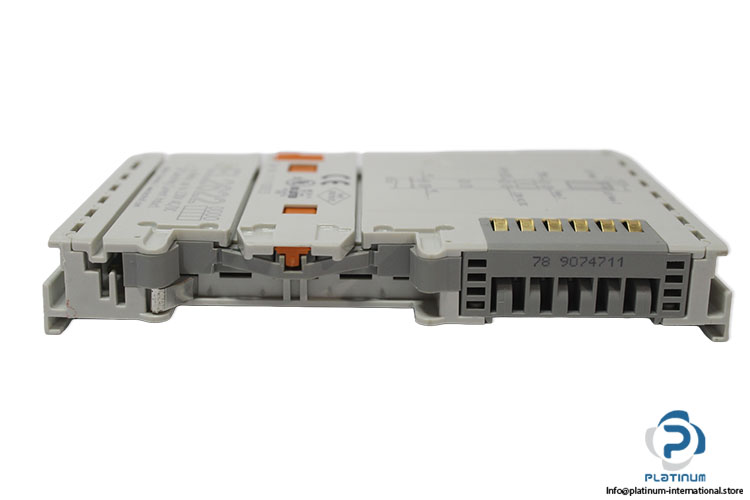

Beckhoff EL2622 2-CHANNEL Relay Output
新着
ご依頼に応じて対応可能
Relay Output Terminal The Beckhoff EL2622 is a 2-channel EtherCAT relay output terminal with change-over contacts, designed for reliable AC and DC load switching in industrial automation systems.
大量在庫
グローバル配送
専門的なサポート
品質保証

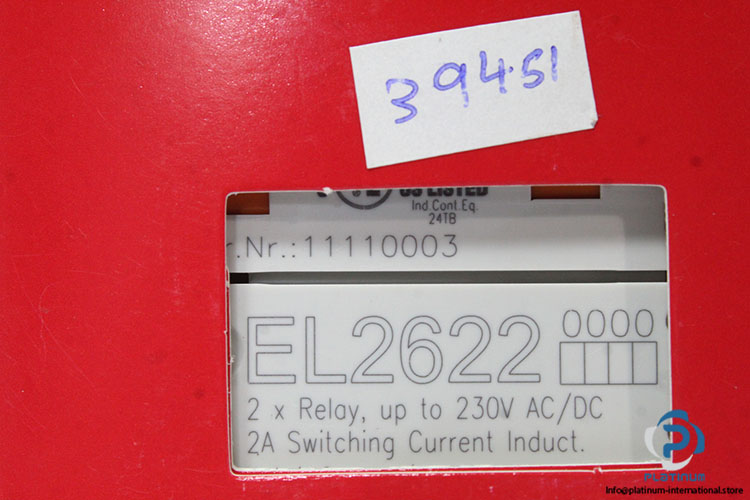

| SN | 11110003 |
| Connection technology | relay output |

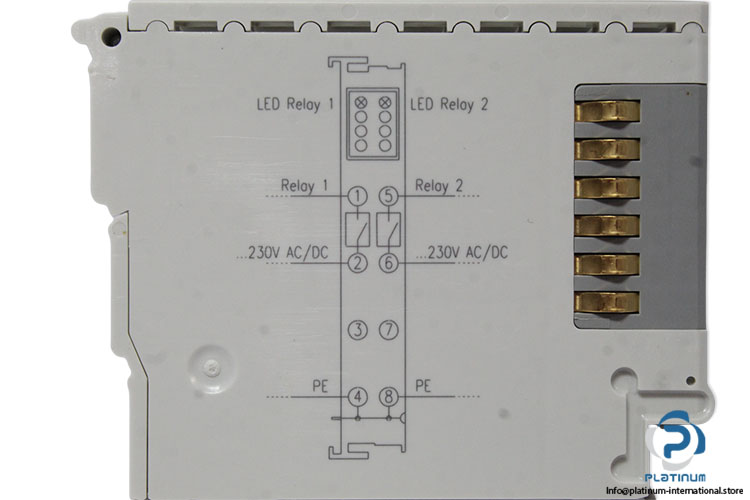

| Number of outputs | 2 x make contacts |
| Nominal voltage | 230 V AC/30 V DC |
| Load type | ohmic, inductive, lamp load |
| Ohmic switching current | 5 A AC/ DC |
| Minimum permitted load | 10 mA at 5 V DC |
| Inductive switching current | 2 A AC/DC per channel |
| Lamp test, electronic ballast | 4 x 58 W |
| Current consumption E-bus | typ. 170 mA |
| Bit width in the process image | 2 outputs |
| Ambient Temperature Range During Operation | -25°C ... +55°C |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring level | for all ESxxxx terminals |

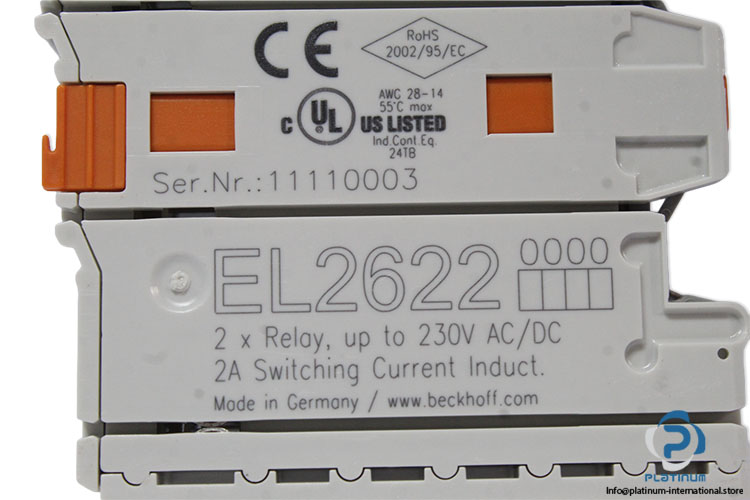

| Approvals/markings | CE, UL |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Current load power contacts Imax | 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Stock key | CH001 |
| Condition | New |
| SKU | 1100872 |
| Weight | 0,06 |
