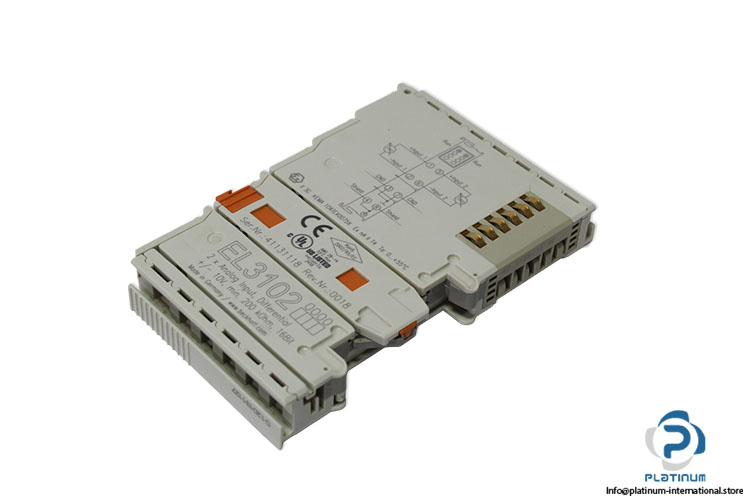

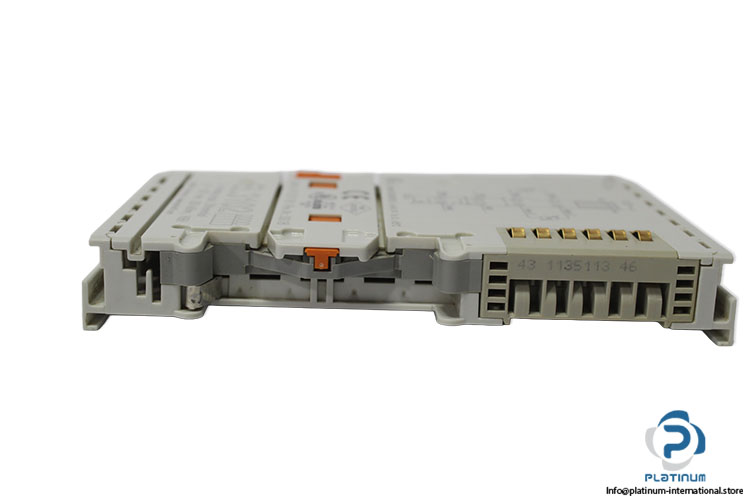

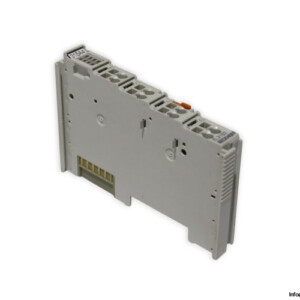

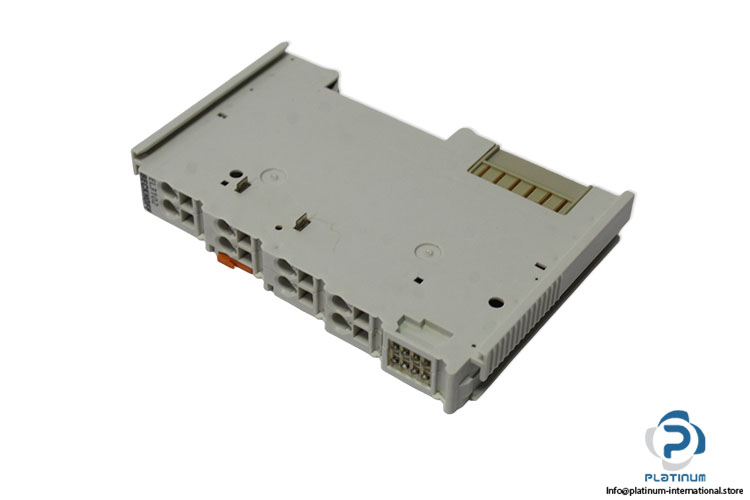

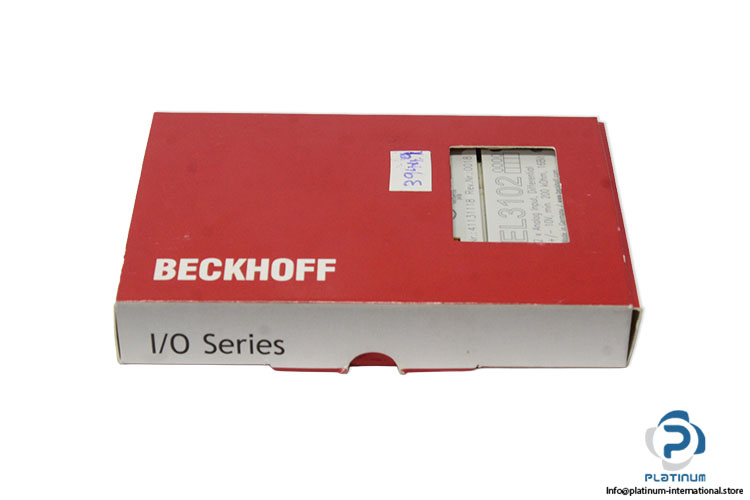

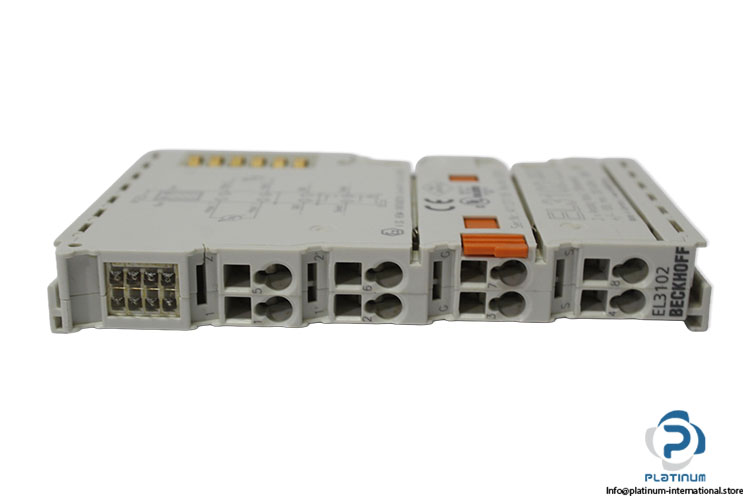

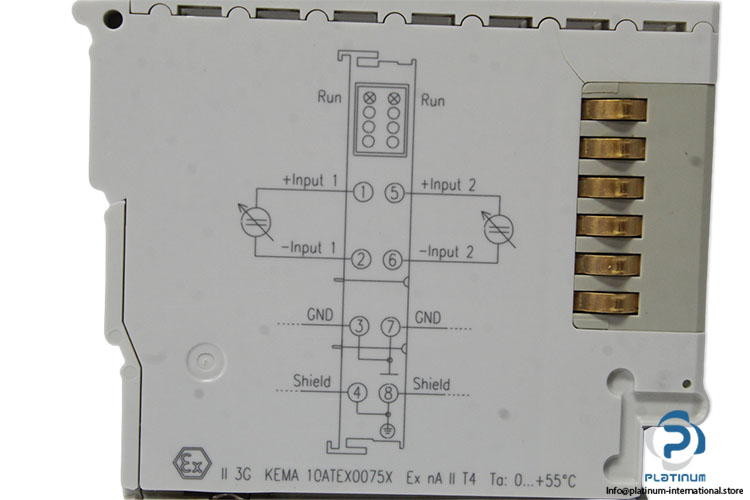

Beckhoff EL3102 Analog Input Terminal
新着
ご依頼に応じて対応可能
Analog Input EtherCAT Terminal The Beckhoff EL3102 is a 2-channel analog input EtherCAT terminal with ±10 V input range and 16-bit resolution, designed for precise industrial signal acquisition.
大量在庫
グローバル配送
専門的なサポート
品質保証

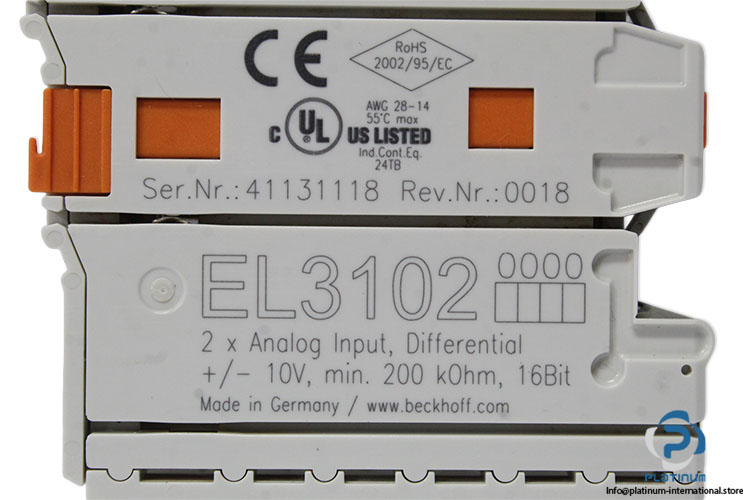

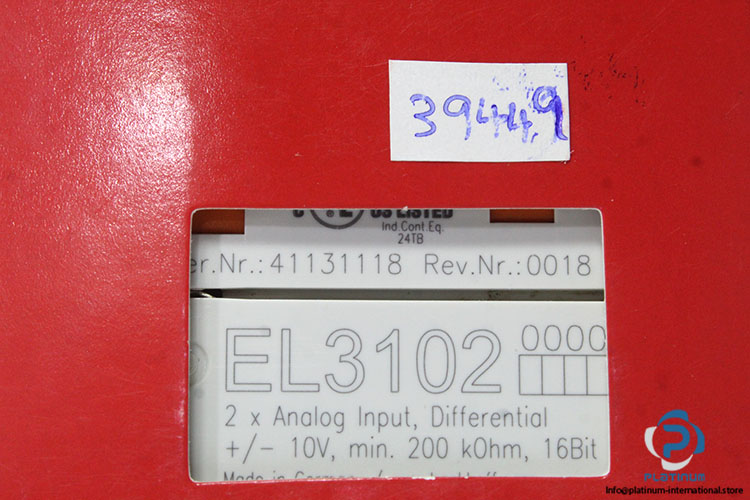

| Ser.Nr . | 41131118 |
| Rev.Nr . | 0018 |
| Analog Inputs | 2 |
| Signal Voltage | -10 V ... +10 V |
| Internal Resistance | 200 kOHM |
| Resolution | 16 bit (including sign) |
| Sampling Type | Simultaneous |
| Ground Reference | Differential |
| Conversion Time | Approx. 60 µs (Fast mode: approx. 40 µs) |
| Input Filter Limit Frequency | 5 kHz |
| Supply Voltage | Via the E-bus |
| Current Consumption via E-bus | Typ. 170 mA |
| Electrical Isolation | 500 V (E-bus/field voltage) |
| Common Mode Voltage Ucm | Max. 35 V (referring to internal GND) |
| Bit Width of Process Image (Default) | Inputs: 2 x 16 bit; Status: 2 x 8 bit |
| Ambient Temperature Range During Operation | -25°C ... +60°C |
| Stock key | CH001 |
| Condition | New |
| SKU | 1100870 |
| Weight | 0,06 |
