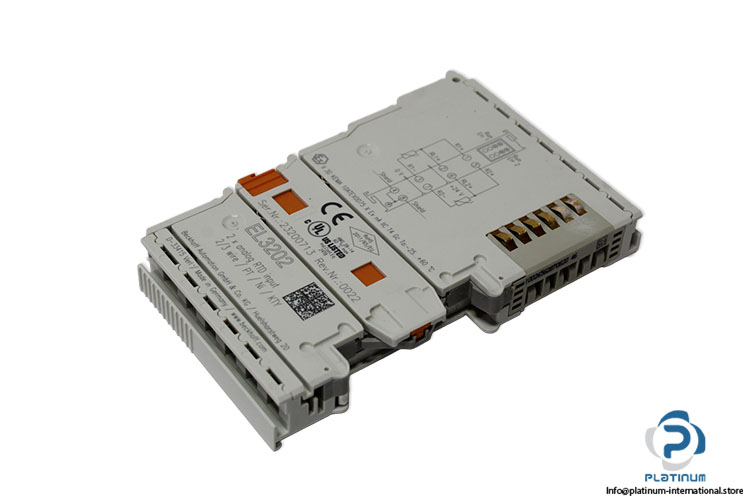

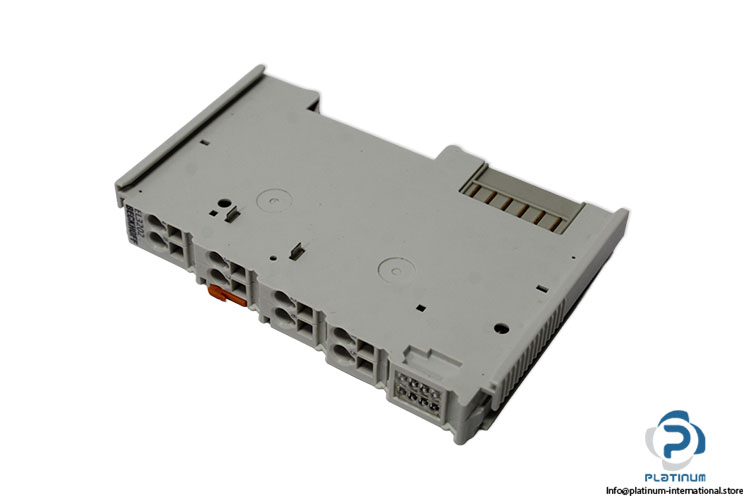

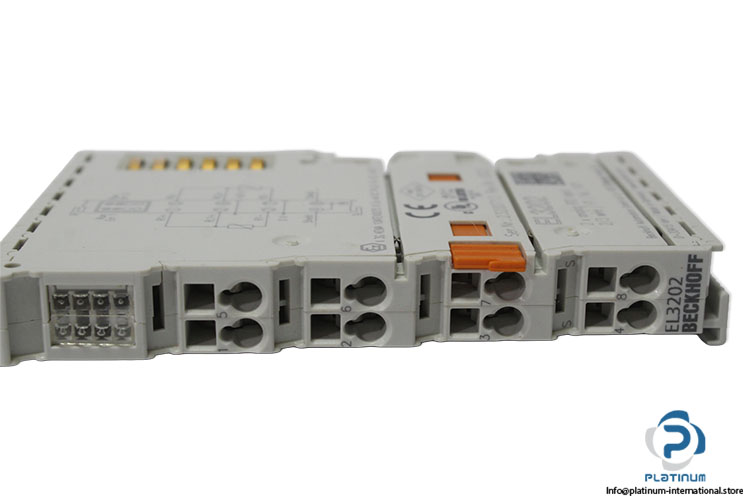

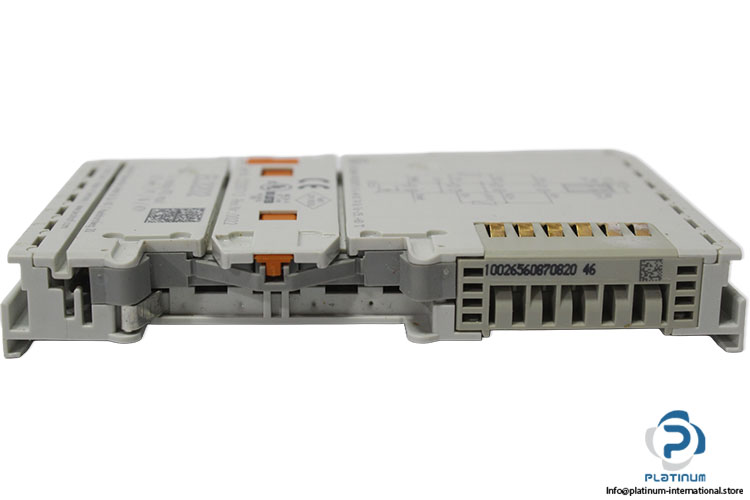

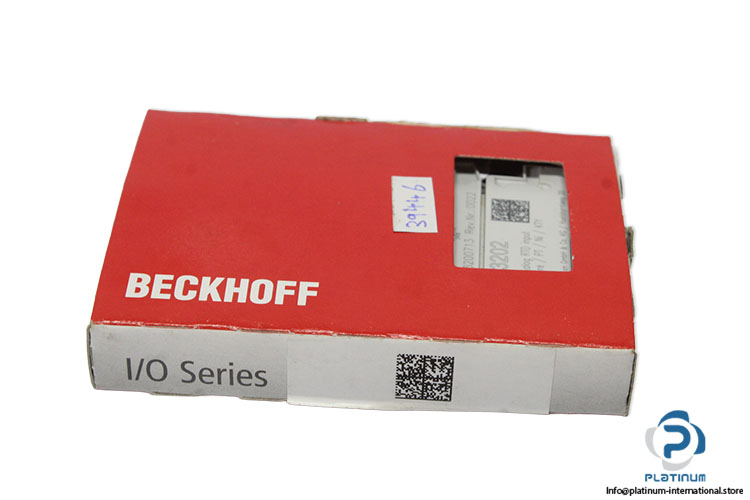

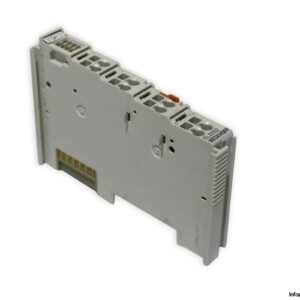

Beckhoff EL3202 Analog Input Terminal
新着
ご依頼に応じて対応可能
Analog Input EtherCAT Terminal The Beckhoff EL3202 is a analog input EtherCAT terminal designed for precise industrial signal acquisition.
中古
ご依頼に応じて対応可能 29,99$
この製品は中古でもご利用いただけます
中古バージョンを見る →
大量在庫
グローバル配送
専門的なサポート
品質保証

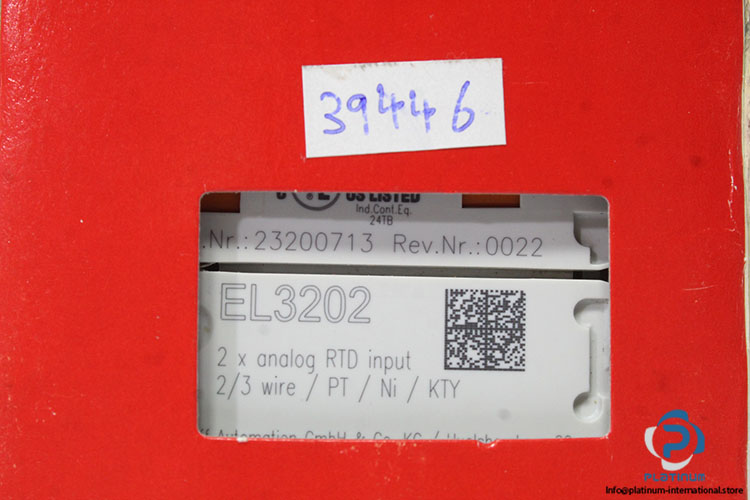

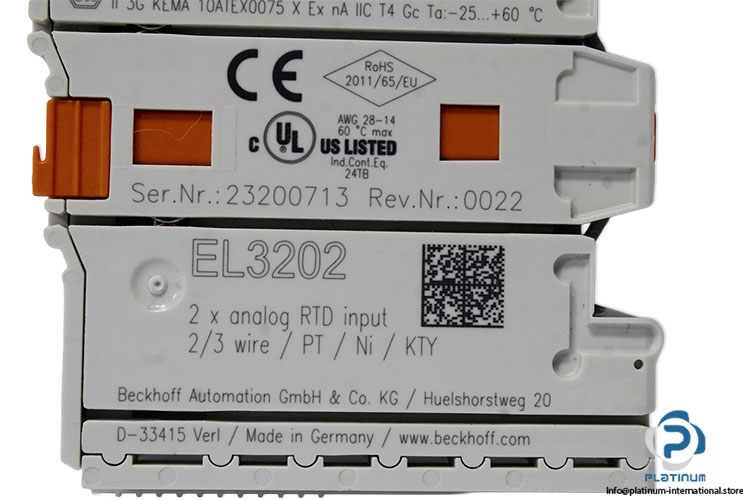

| Ser no. | 23200713 |
| Rev.Nr . | 0022 |
| Number of analog input | 2 |
| Power supply | via the E-bus |
| Input filter cut-off frequency typ. | 1 kHz |
| Sensor type | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 O…4 kO), KTY sensors (types see documentation) |

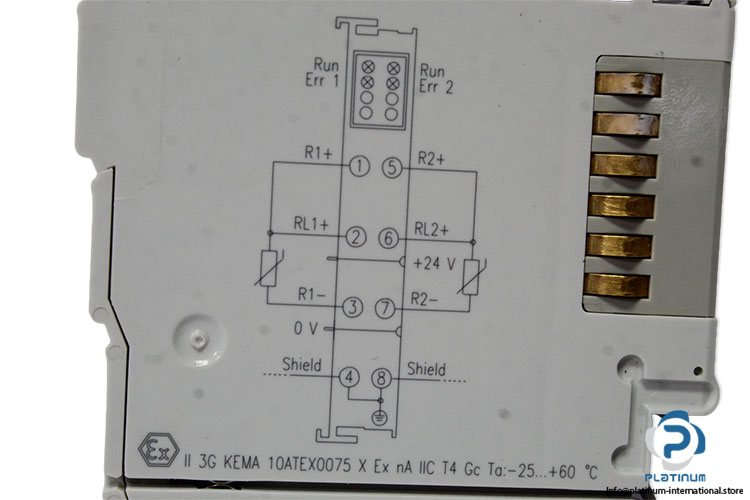

| Connection technology | 2- or 3-wire (default: 2-wire) |
| Conversion time | approx. 85 ms default setting, 2…800 ms configurable |
| Measuring current | 0.5 mA (load-dependent) |
| Temperature range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
| Resolution | 0.1°C per digit |
| Measurement error/uncertainty | ±0.5°C for Pt sensors |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 190 mA |
| Bit width in the process image | 2 x 32 bit RTD input |
| Operating temperature | -25…+60°C |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring level | for all ESxxxx terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Ex marking ATEX | II 3G Ex ec IIC T4 Gc/IECEx:Ex ec IIC T4 Gc/cFMus:Class I, Division 2, Groups A, B, C, D/Class I, Zone 2, Ex ec IIC T4 Gc |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Stock key | CH001 |
| Condition | New |
| SKU | 1100867 |
| Weight | 0,06 |
