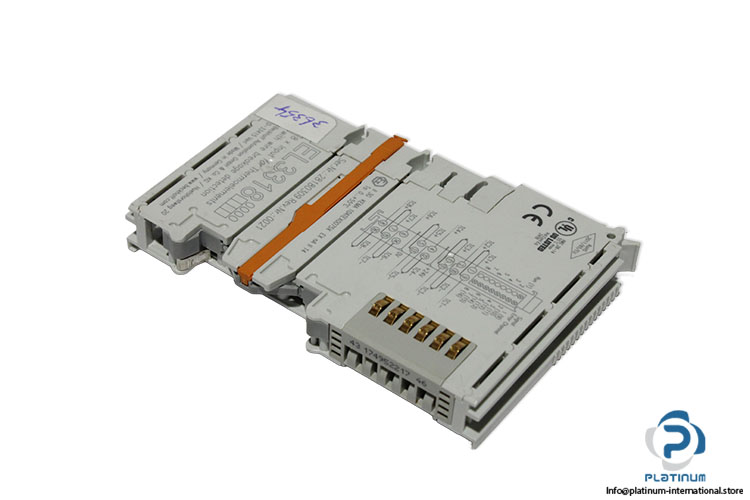

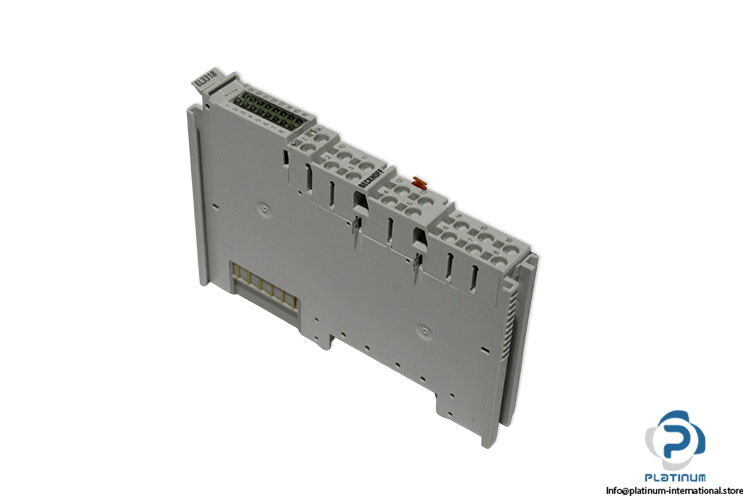

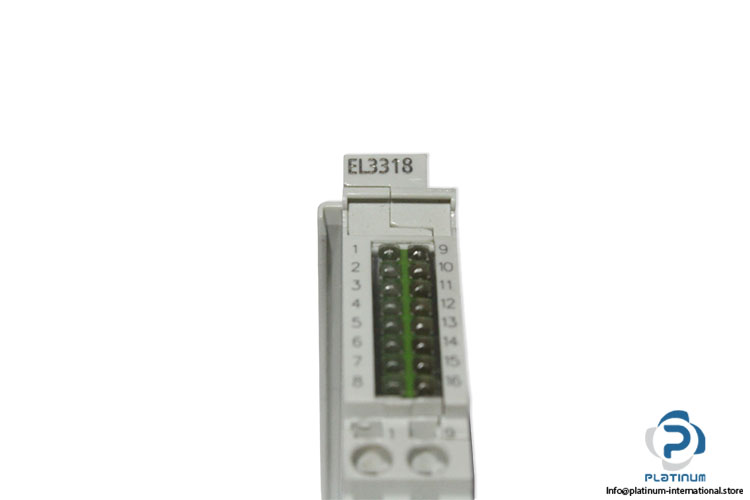

Beckhoff EL3318 Ethercat Terminal

在庫あり4 単位即納可能

139,99$

EtherCAT Terminal Beckhoff EL3318 EtherCAT terminal with 8 analog inputs for thermocouples, wire breakage detection, 16-bit resolution, and high-density DIN rail mounting for industrial automation applications.

メーカー
BECKHOFF
SKU
1097588
カテゴリ
PLC Modules
コンディション
新着
共有
大量在庫
グローバル配送
専門的なサポート
品質保証

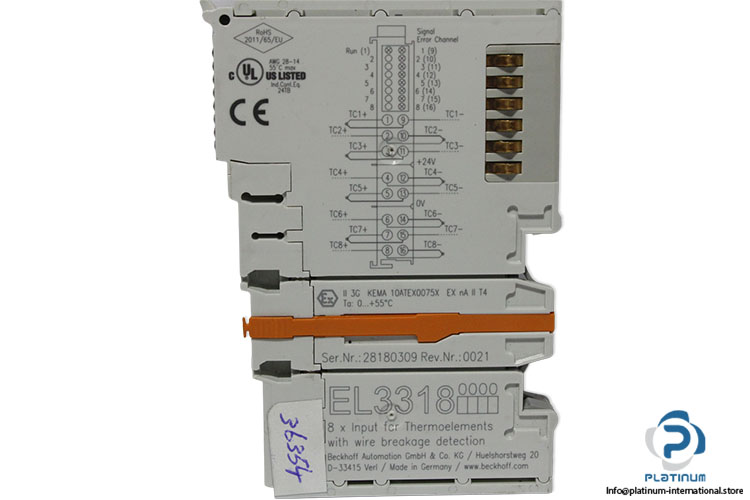

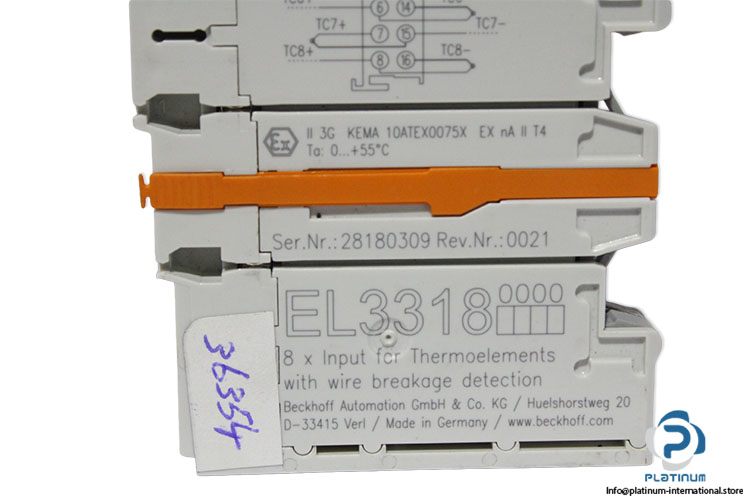

Serial No.28180309
Rev. No.0021
No. of analog input (AI)8
Connection technology2-wire
Nominal voltagevia the E-bus
Input filter limit frequencytyp. 1 kHz
Conversion timeapprox. 3.5 s up to 30 ms, depending on configuration and filter setting, default: approx. 380 ms
Voltage measurement±30/±60/±75 mV

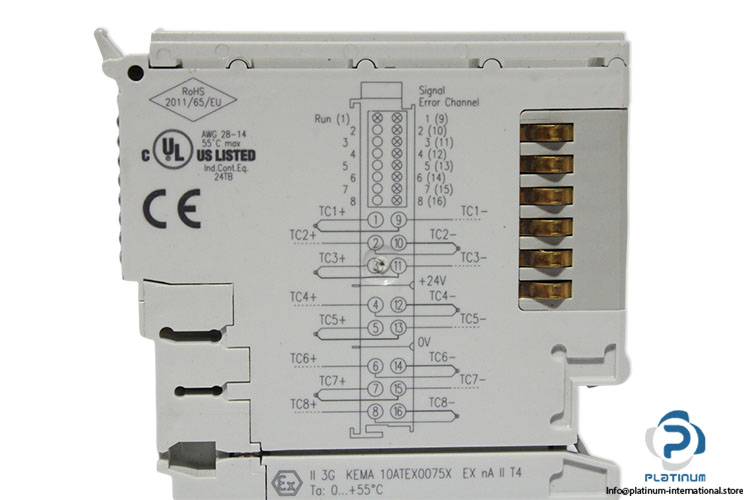

Temperature measurement(thermocouple) type B, C, E, J, K, L, N, R, S, T, U
Resolution16 bits
Protection degreeIP20
Electrical isolation500 V (E-bus/signal voltage)
Current consumption E-bustyp. 210 mA
StandardIl 3G KEMA 10ATEX0075X EX nA II T4
MaterialPolycarbonate
Ambient temperature0 to 55°C
CertificateCE, cULus
Design formHD (High Density) housing with signal LEDs
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side-by-Side Mountingdouble slot and key connection
Markinglabeling of the BZxxxx series

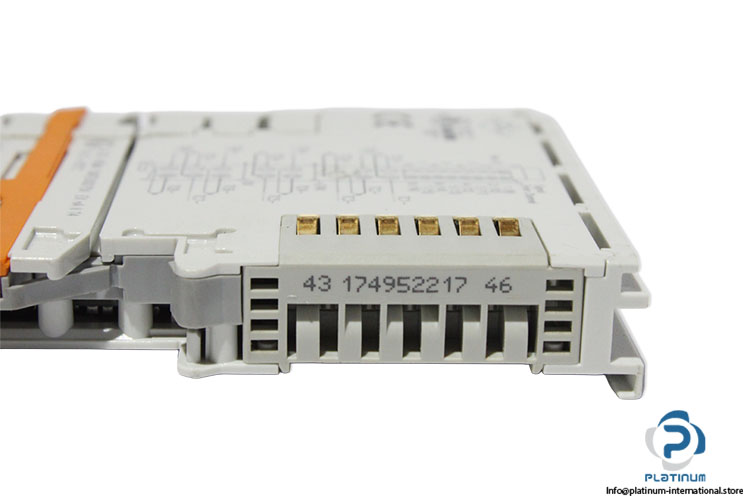

Terminal No.43 174952217 46
Dimensions12 x 100 x 68 mm
ConditionNew
Stock KeyJO-004
SKU1097588
Weight0,05
Beckhoff AX52XX_DS01_1 Safety Slot Module
新着

BECKHOFF

Beckhoff AX52XX_DS01_1 Safety Slot Module

SKU: 1105035

数量: 1

見積もりにて提供
Beckhoff EL2252 Ethercat Terminal
新着

BECKHOFF

Beckhoff EL2252 Ethercat Terminal

SKU: 1101448

数量: 1

見積もりにて提供
Beckhoff CU2508-0000 Ethernet Port Multiplier
新着

BECKHOFF

Beckhoff CU2508-0000 Ethernet Port Multiplier

SKU: 1104183

数量: 1

見積もりにて提供
Beckhoff EL1252 Ethercat Terminal
新着

BECKHOFF

Beckhoff EL1252 Ethercat Terminal

SKU: 1101445

数量: 2

見積もりにて提供
Beckhoff C6640-1014-0040 Control Cabinet Industrial Computer PC
新着

BECKHOFF

Beckhoff C6640-1014-0040 Control Cabinet Industrial Computer PC

SKU: 1104157

数量: 1

見積もりにて提供
Allen-Bradley 2705-K11C1 Operator Interface
中古

Allen-Bradley 2705-K11C1 Operator Interface

SKU: 989344

数量: 1

見積もりにて提供
Allen-Bradley 1769-OB16 I/O Module
中古ご依頼に応じて対応可能

Allen-Bradley 1769-OB16 I/O Module

SKU: 984157

ご依頼に応じて対応可能

120,00$
Phoenix Contact EMG 22-REL/KSR- 24/21-21 Relay Module
中古

PHOENIX CONTACT

Phoenix Contact EMG 22-REL/KSR- 24/21-21 Relay Module

SKU: 994525

数量: 3

33,33$
Wago 750-400 2-CHANNEL Digital Input
中古

Wago 750-400 2-CHANNEL Digital Input

SKU: 965606

数量: 4

30,00$
Siemens 6ES5 470-8MA12 Analog Output
中古

SIEMENS

Siemens 6ES5 470-8MA12 Analog Output

SKU: 995271

数量: 1

22,22$
プラチナム・インターナショナル
余剰品、新品および中古品 - いつでも信頼できます
BECKHOFF SKU: 1097588
Beckhoff EL3318 Ethercat Terminal
Beckhoff EL3318 Ethercat Terminal
価格139,99$
在庫4 在庫あり
メーカーBECKHOFF
カテゴリPLC Modules
コンディション新着
SKU1097588
EtherCAT Terminal Beckhoff EL3318 EtherCAT terminal with 8 analog inputs for thermocouples, wire breakage detection, 16-bit resolution, and high-density DIN rail mounting for industrial automation applications.
説明
Serial No.28180309
Rev. No.0021
No. of analog input (AI)8
Connection technology2-wire
Nominal voltagevia the E-bus
Input filter limit frequencytyp. 1 kHz
Conversion timeapprox. 3.5 s up to 30 ms, depending on configuration and filter setting, default: approx. 380 ms
Voltage measurement±30/±60/±75 mV
Temperature measurement(thermocouple) type B, C, E, J, K, L, N, R, S, T, U
Resolution16 bits
Protection degreeIP20
Electrical isolation500 V (E-bus/signal voltage)
Current consumption E-bustyp. 210 mA
StandardIl 3G KEMA 10ATEX0075X EX nA II T4
MaterialPolycarbonate
Ambient temperature0 to 55°C
CertificateCE, cULus
Design formHD (High Density) housing with signal LEDs
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side-by-Side Mountingdouble slot and key connection
Markinglabeling of the BZxxxx series
Terminal No.43 174952217 46
Dimensions12 x 100 x 68 mm
ConditionNew
Stock KeyJO-004
SKU1097588
Weight0,05
技術仕様
Weight0,05 kg
ManufacturerBECKHOFF
Type of ProductEtherCAT Terminal / 8-channel analog input module for Thermoelements with wire breakage detection
ModelEL3318
Shelf No.260520
