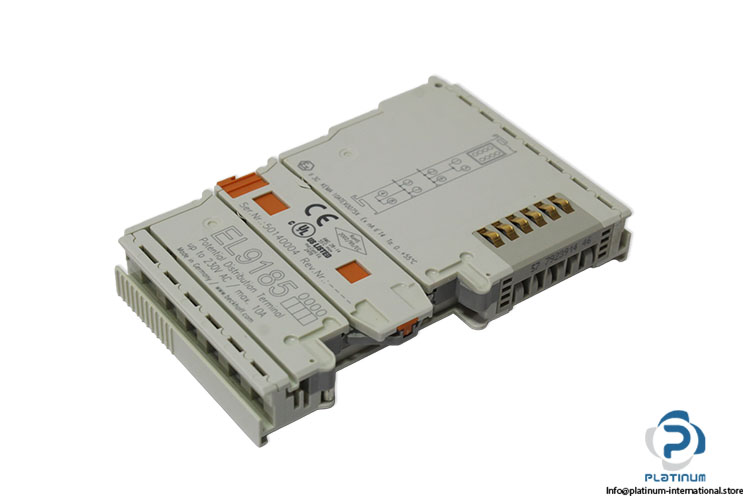

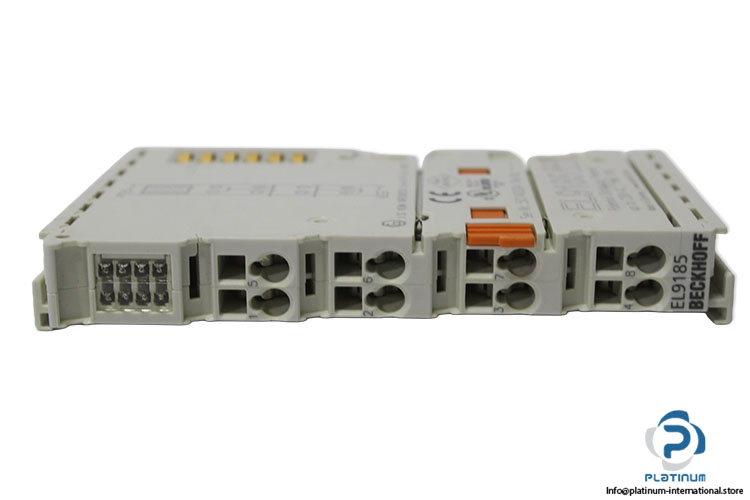

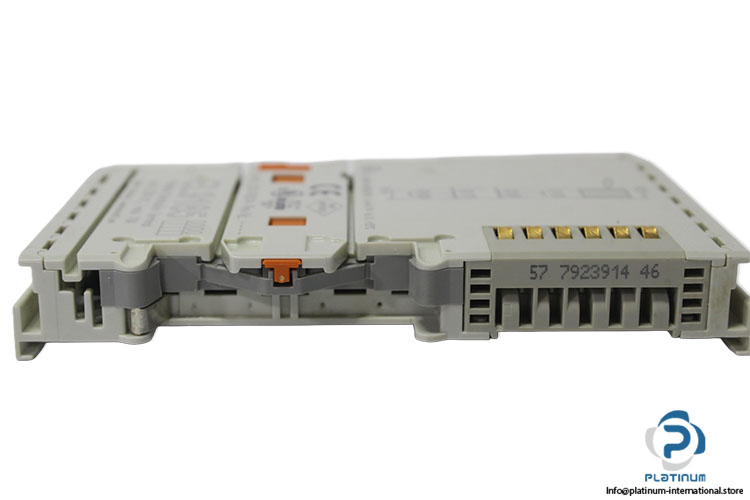

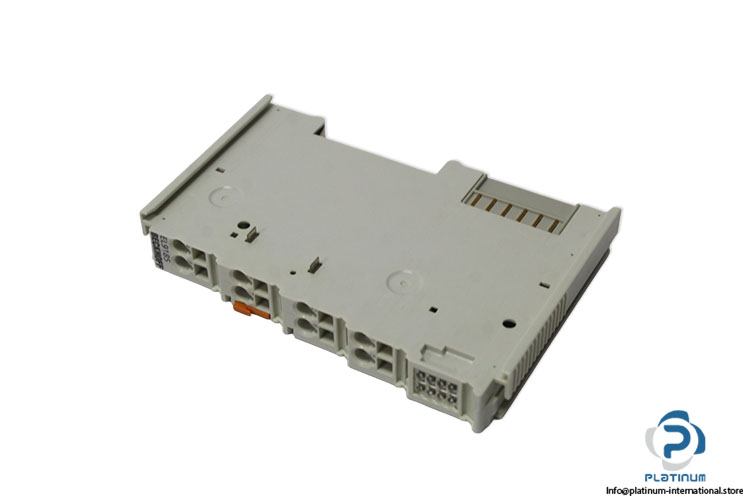

Beckhoff EL9185 Potential Distribution Terminal
新着
ご依頼に応じて対応可能
potential distribution terminal The Beckhoff EL9185 is a potential distribution terminal designed for precise industrial signal acquisition.
大量在庫
グローバル配送
専門的なサポート
品質保証

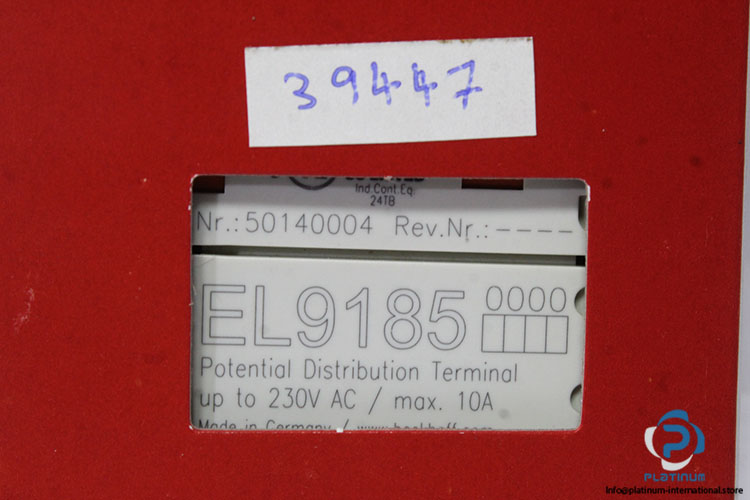

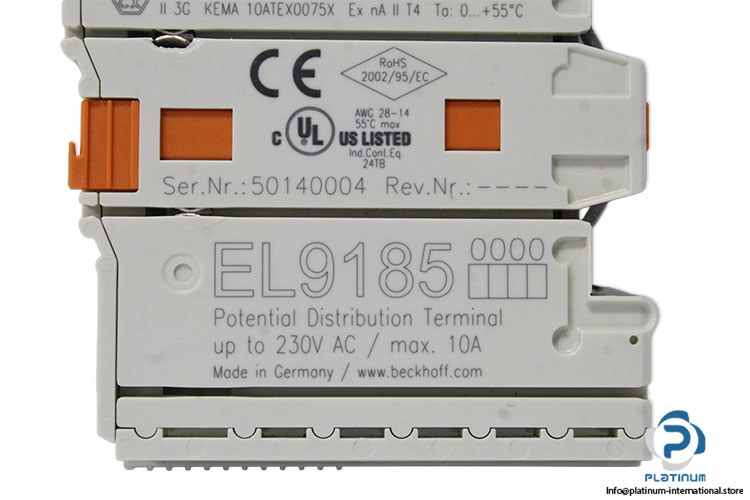

| Ser.Nr . | 50140004 |
| Technology | potential distribution terminal |
| Current load | 10 A |
| Nominal voltage | arbitrary up to 230 V AC/DC |
| Connection facility to additional power contact | 4 |
| Housing width | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact | only 2 power contacts |
| Operating temperature | -25…+60°C |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring level | for all ESxxxx terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |

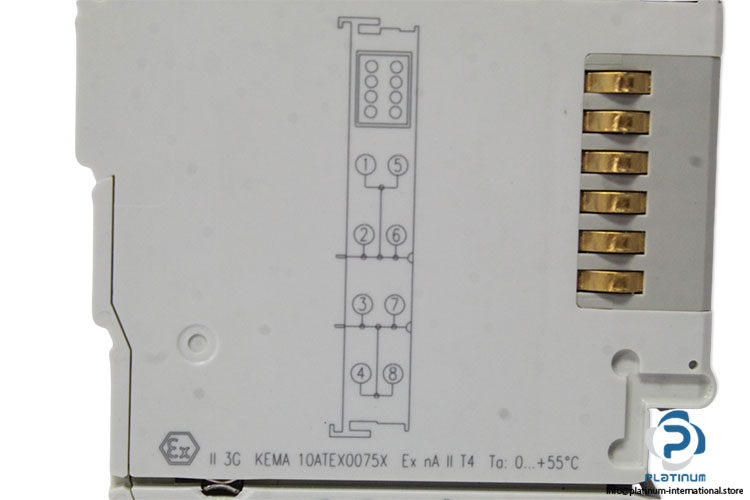

| Ex marking ATEX | II 3G Ex ec IIC T4 Gc/IECEx:Ex ec IIC T4 Gc/cFMus:Class I, Division 2, Groups A, B, C, D/Class I, Zone 2, Ex ec IIC T4 Gc |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Stock key | CH001 |
| Condition | New |
| SKU | 1100868 |
| Weight | 0,06 |
