Beijer X2 Extreme 15 HMI Touch Operator Panel
新着
在庫あり2 単位即納可能
3 499,99$
HMI Touch Operator Panel
The Beijer X2 Extreme 15 is a 15.4-inch industrial HMI panel featuring a rugged aluminum design, dual-core processor, and wide communication support for demanding automation applications.1515.424vAutomationBeijerControllerCortex-A9dcDualExtremeHMIinchIndustrialOperatorPanelSeriesTouchx2
大量在庫
グローバル配送
専門的なサポート
品質保証

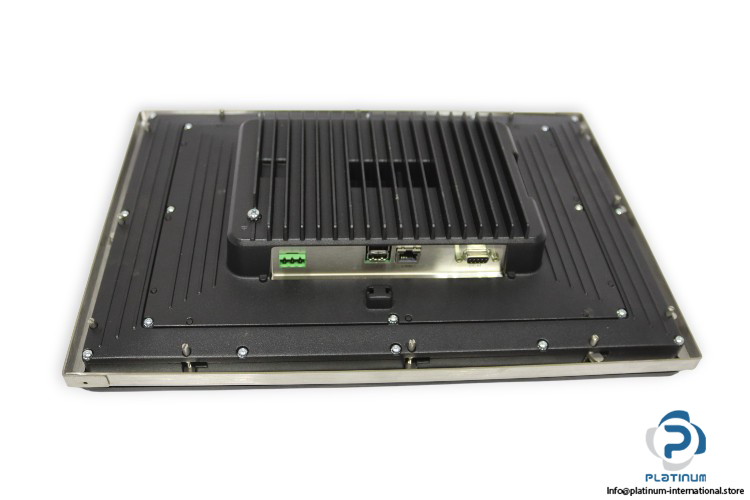

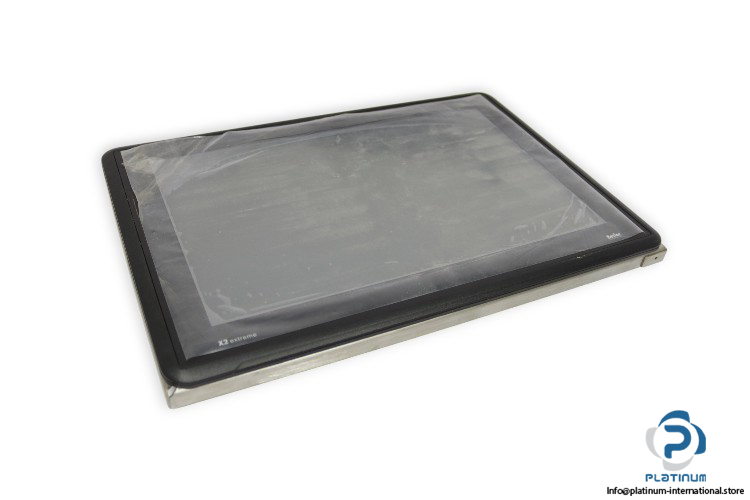

Beijer X2 Extreme 15 HMI Touch Operator Panel
The Beijer X2 Extreme 15 HMI Touch Operator Panel is a high-performance human-machine interface designed for demanding industrial environments. With a rugged aluminum housing, bright 15.4-inch TFT-LCD display, and wide operating temperature range, it provides reliable and intuitive control for automation systems.
Manufacturer: Beijer
Type: HMI Touch Operator Panel
Model: X2 extreme 15

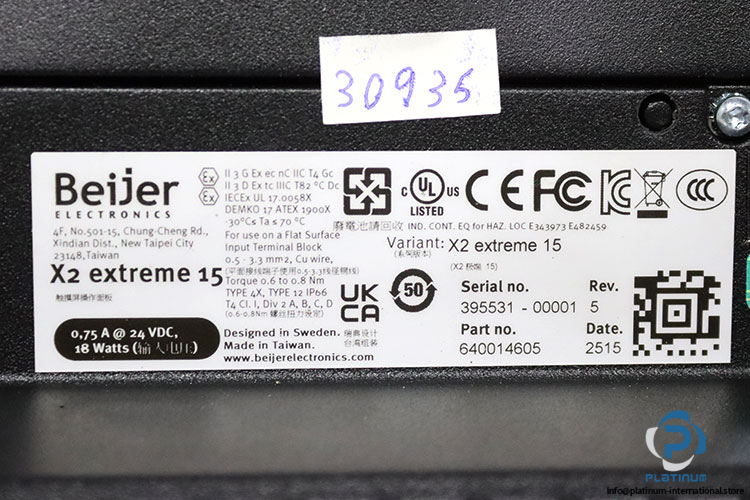

Part No.: 640014605
Rev.: 5
| Display Resolution | 1280x800 Pixels |
| Display Ratio | 16:10 |
| Display Type | TFT-LCD with LED Backlight |
| Screen Diagonal | 15.4 In |
| Supply Voltage | 24 V DC |
| Power Consumption | 18 W |
| Memory Capacity | 64 MB SD RAM / 64 MB Flash |

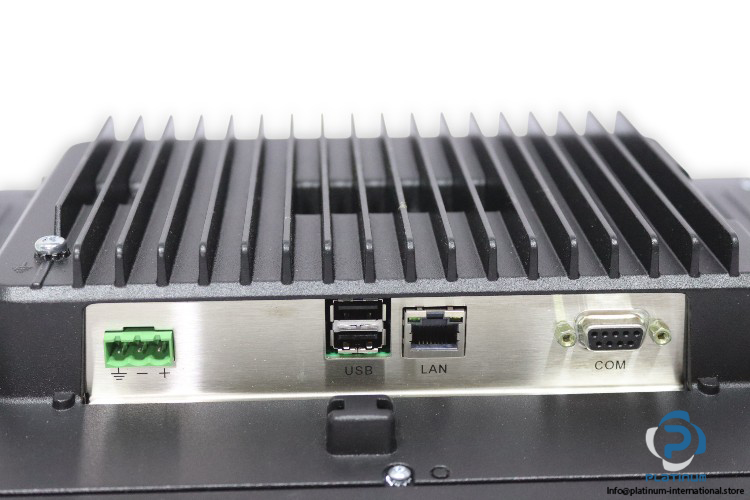

| Interface | RS422 / RS485 / CAN / RJ45 (Ethernet) / RS232 (RTS/CTS) |
| CPU Type | i.MX6DualLite, Dual Cortex-A9 800 MHz 512kB L2 Cache |
| RAM Memory | 1 GB |
| FLASH Memory | 2 GB SSD (eMMC), 1.5 GB Memory Free for Application |
| Number of Touches | 1 Million Finger Touch Operations |
| Touch Type | Resistive |
| Material | Powder-Coated Aluminum, Black |
| Operating Temperature | -30 / 70 °C |
| Protection Class | IP20 |
| Dimensions | 410 x 286 x 73 mm |
